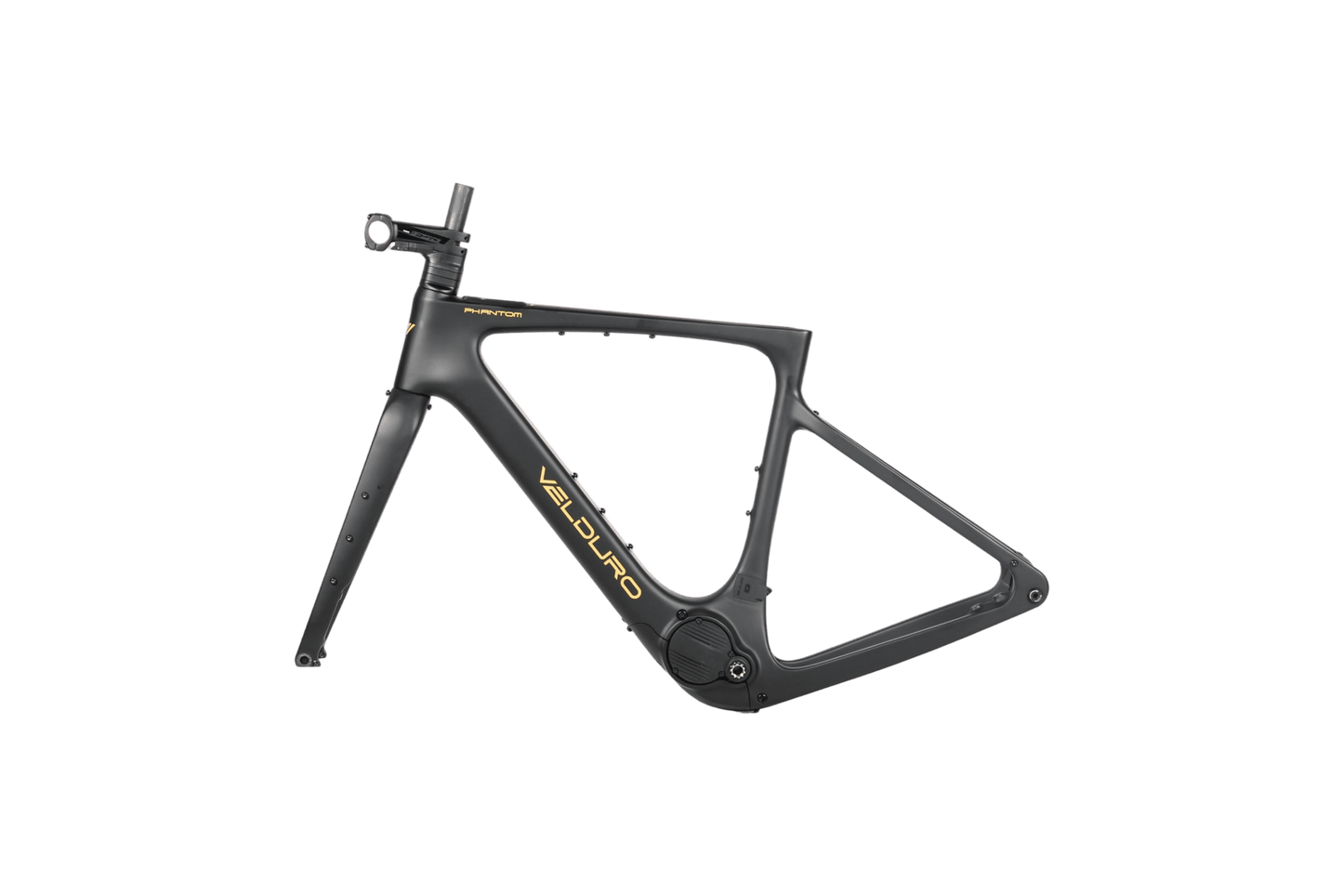

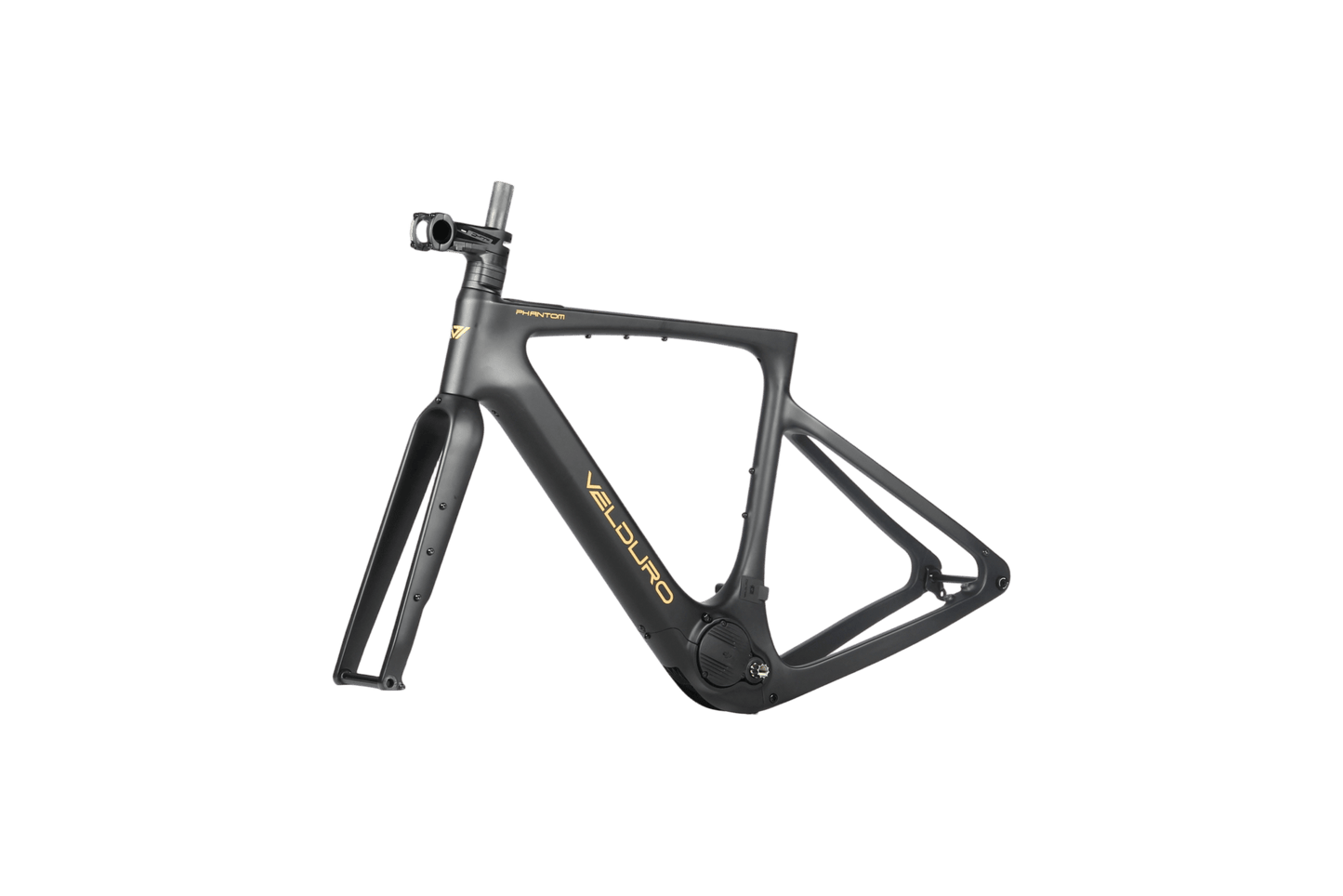

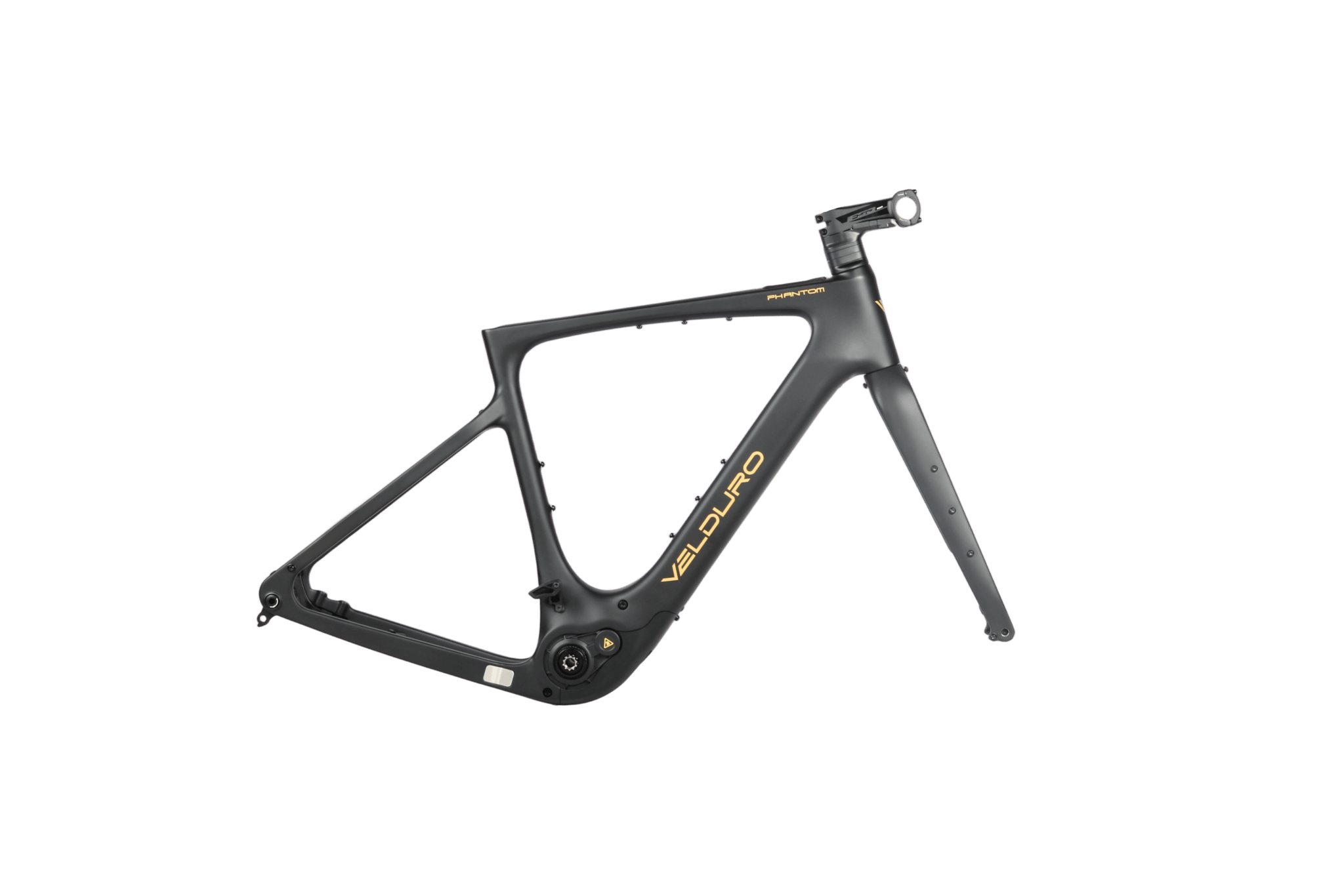

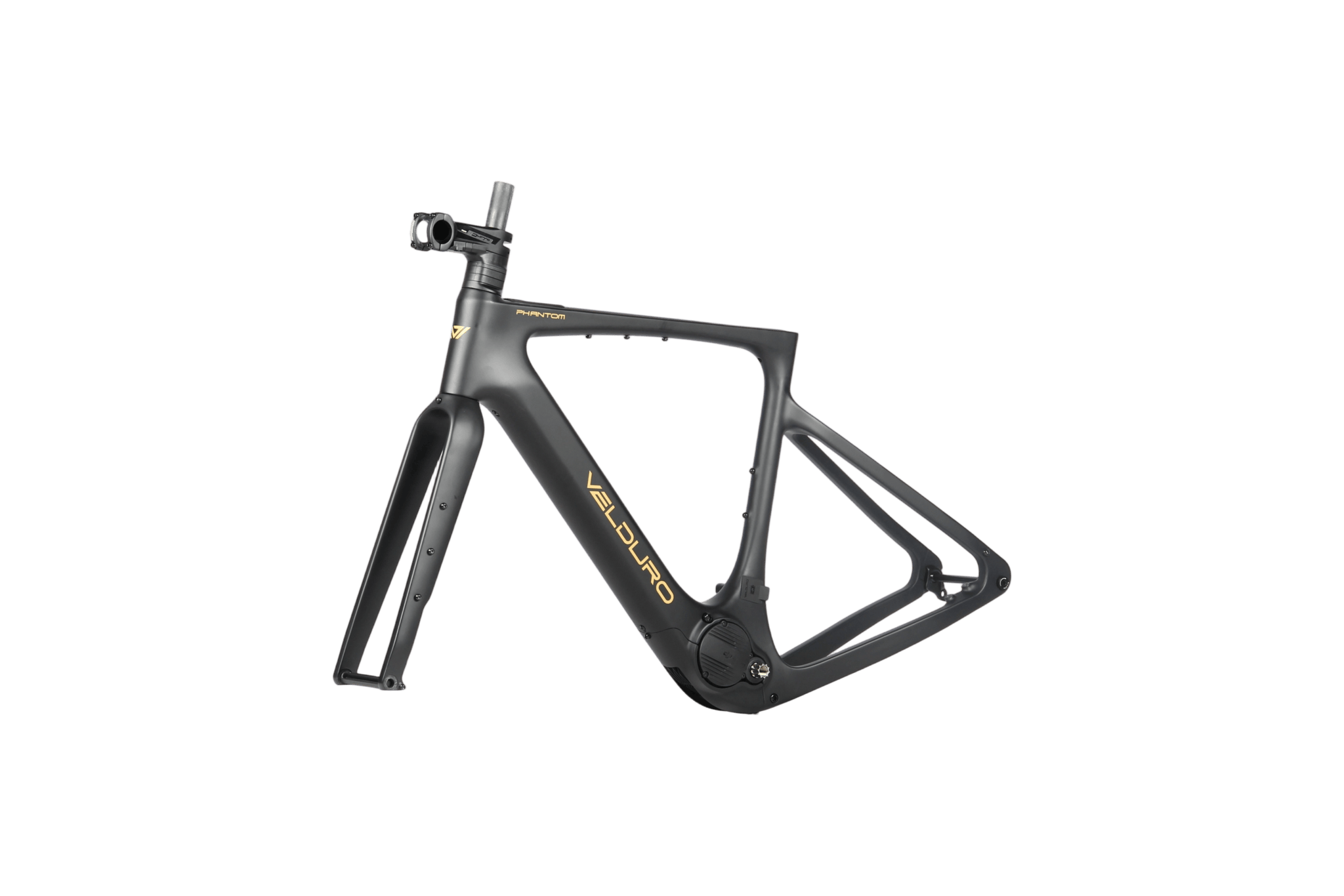

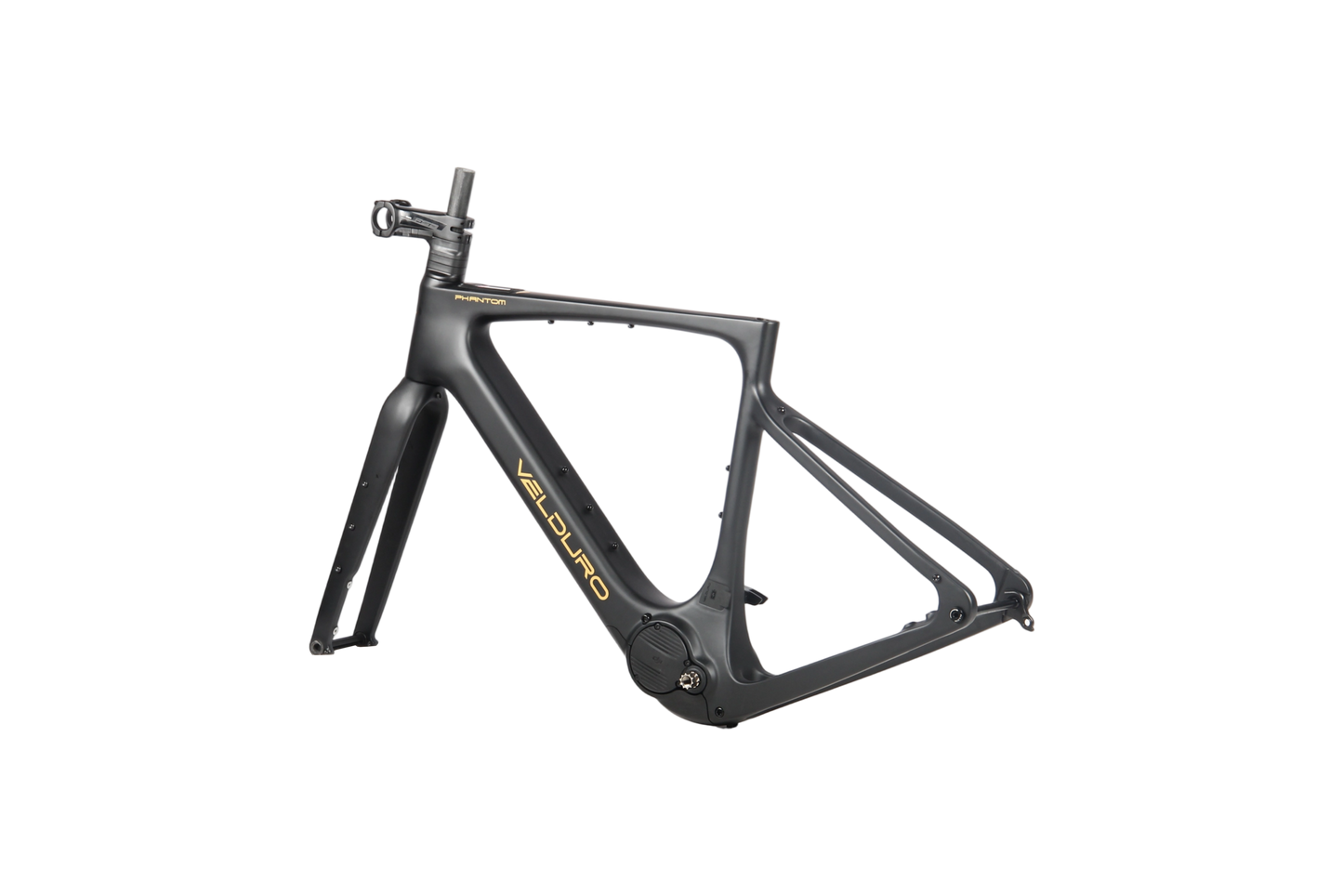

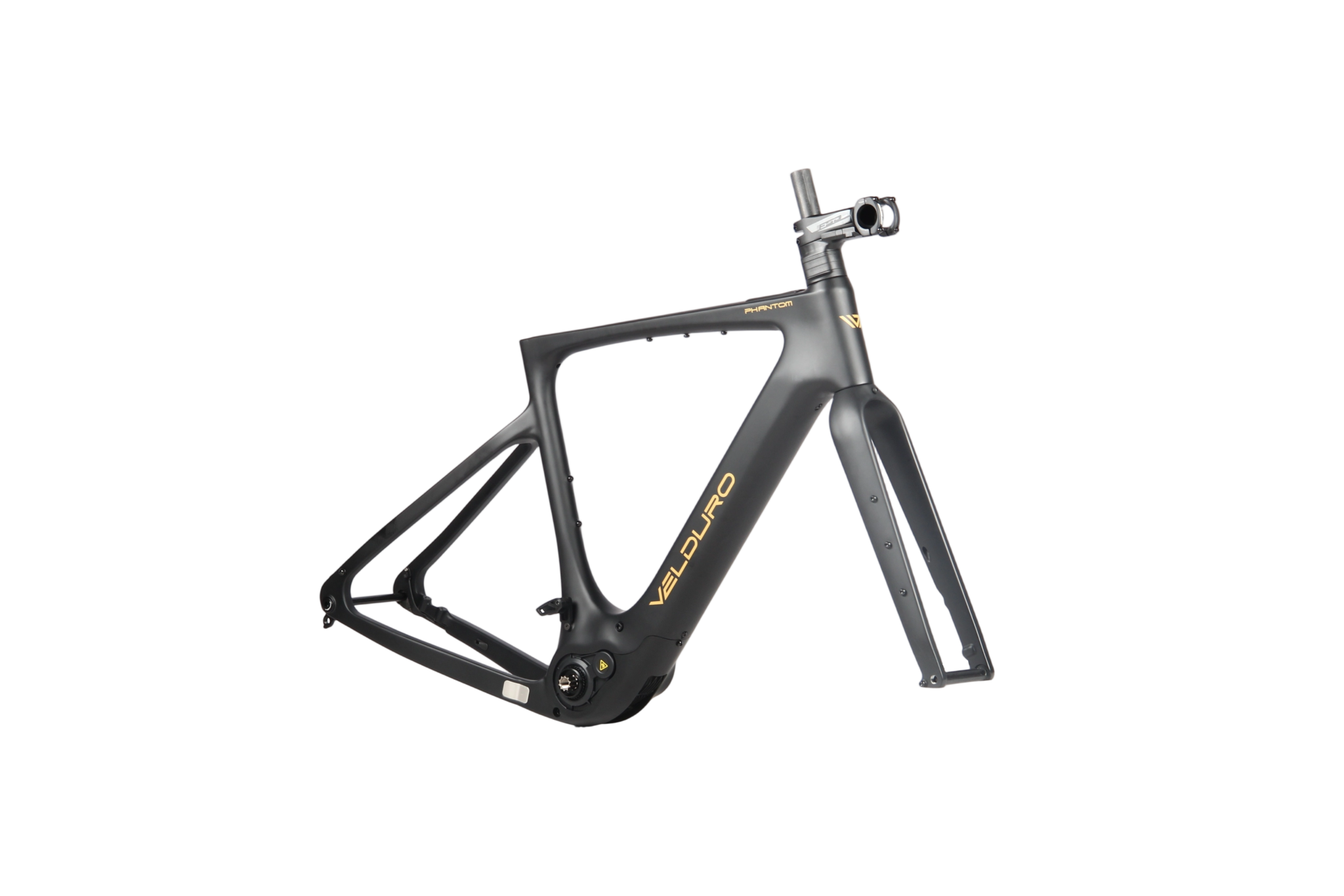

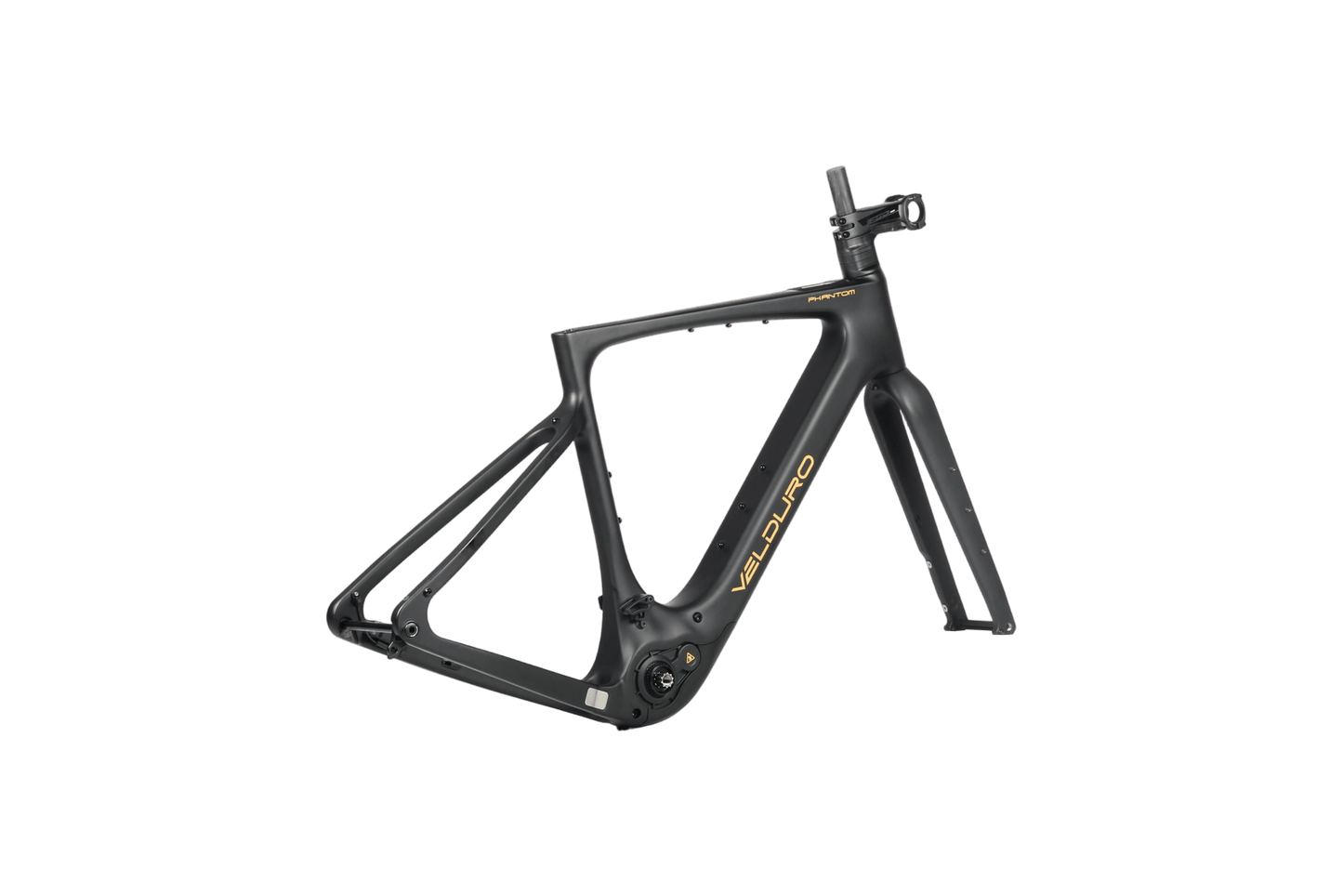

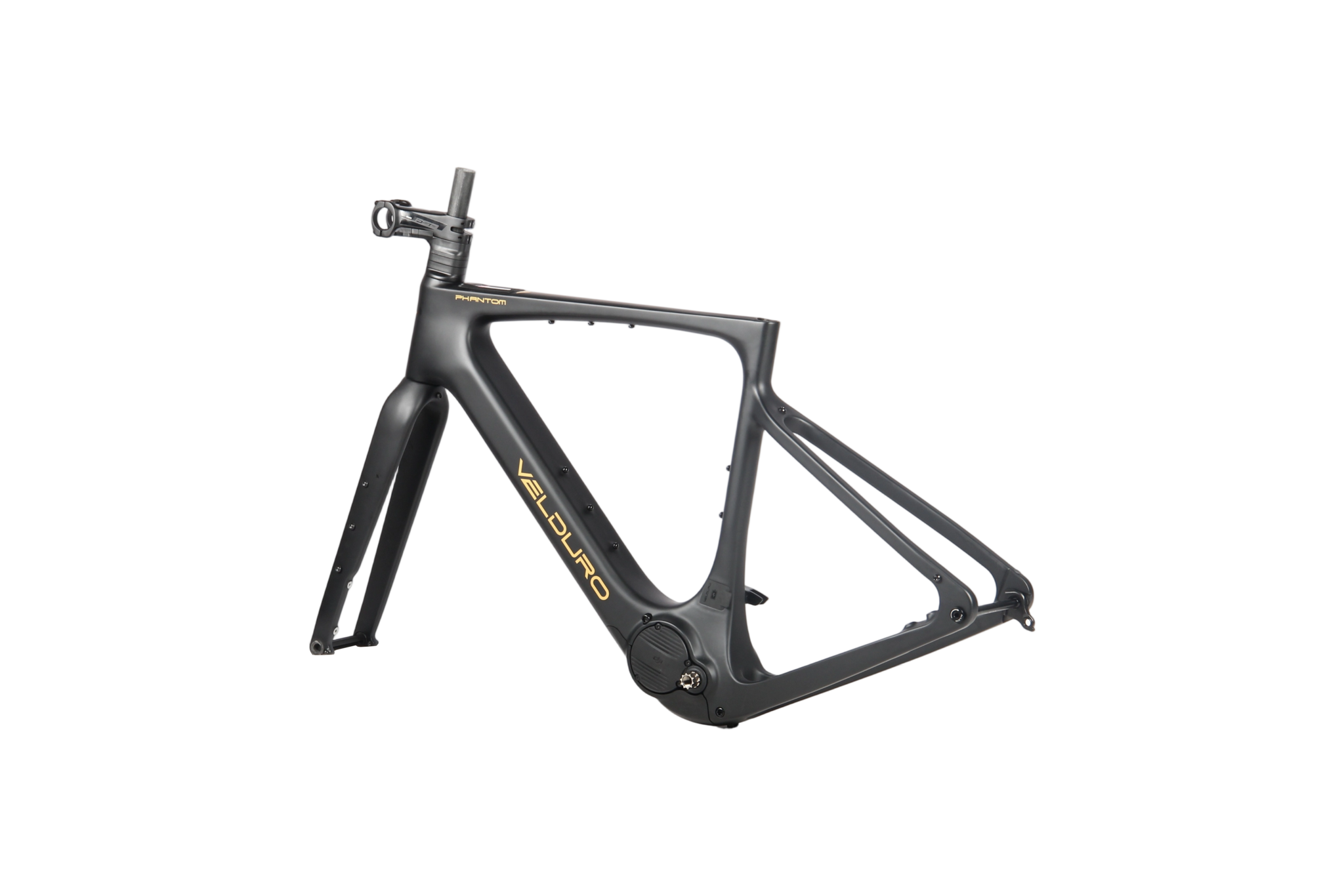

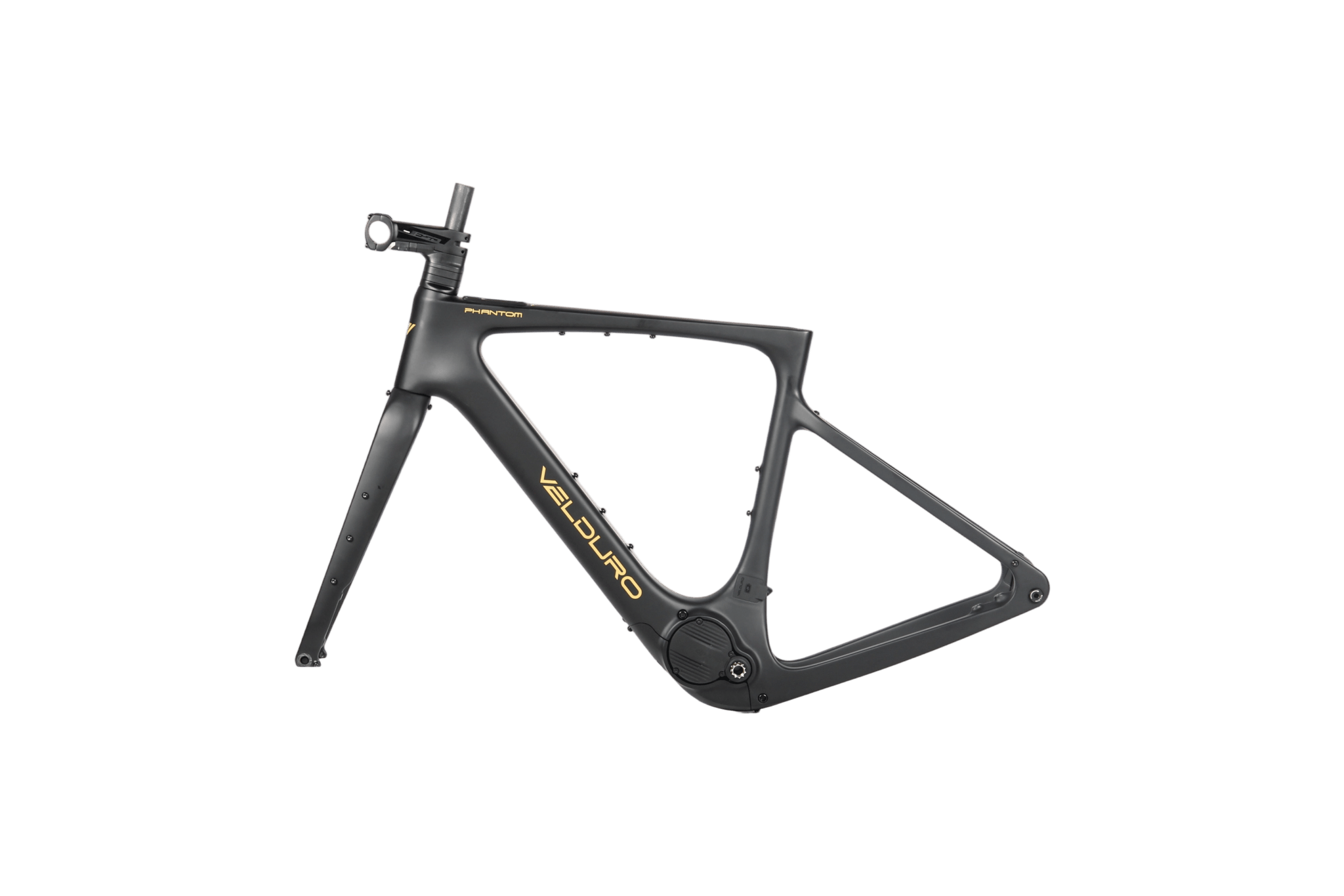

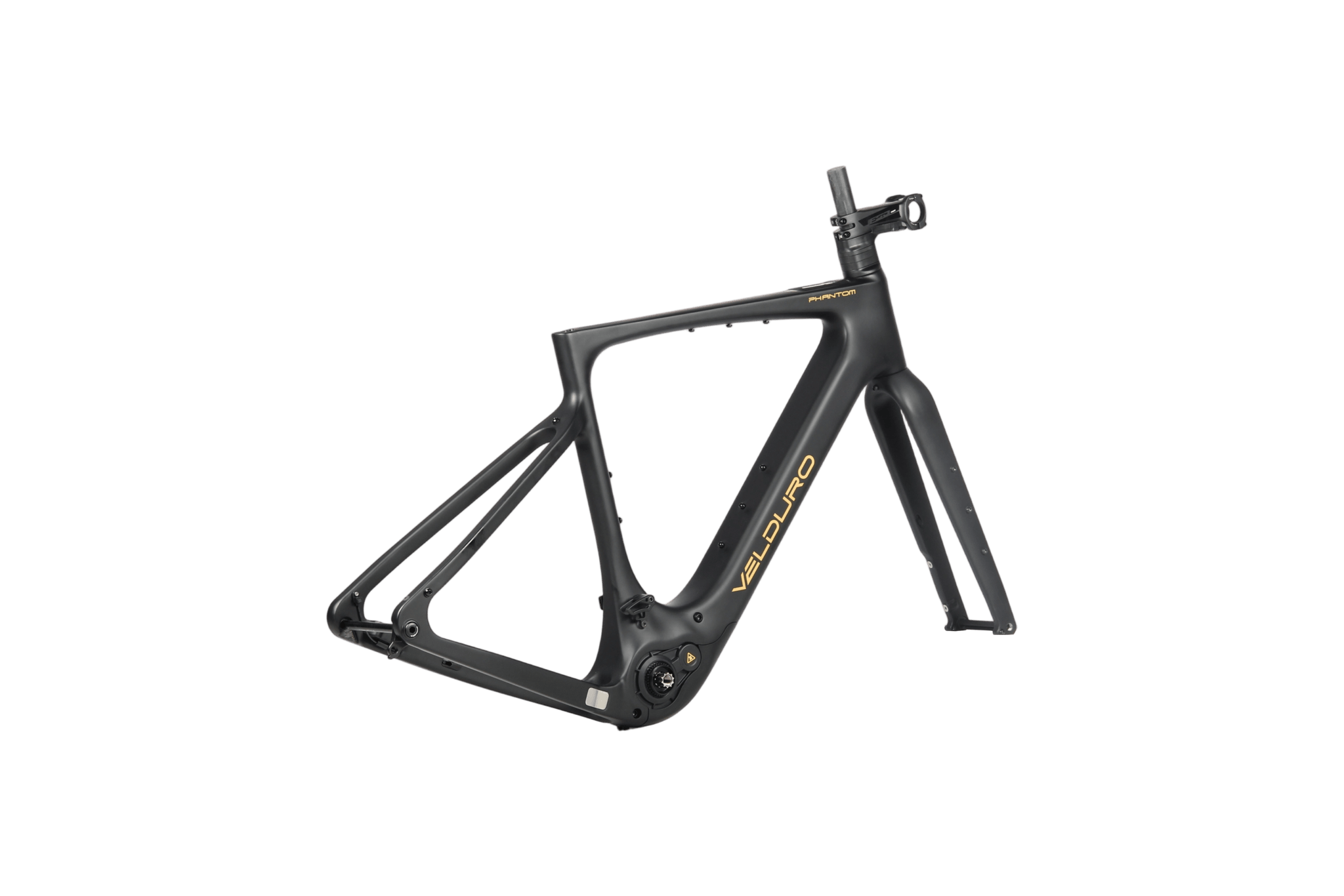

Phantom Frame Only

Our Gold Award-winning e-gravel carbon frame is available as a frame-only option. Build your own ultra-lightweight Avinox-powered gravel or flat bar adventure bike.

Expected delivery: July 2026
Price
€3.999,00 EUR
€3.999,00 EUR
Size
Carbon Fibre Monocoque Frame - 6,1 kg
UDH compatible
8 Mounting Points on Frame for bike packing
Warranty: Frame 5-Years | Avinox Drive System 2-Years

Specifications

  • Phantom carbon frame
  • Phantom carbon fork
  • Phantom motor cover
  • 12X142 rear thru axle
  • UDH Hanger Bottle cage screws
  • Seatpost lock
  • DJI Avinox M2 motor 1100W / 110Nm, boost 125Nm
  • Custom chainwheel and spider.
  • DJI Avinox isis crank 155mm
  • DJI avinox battery 36V 600Wh
  • DJI DP100 2inch smart screen
  • DJI BC100 bluetooth remoter X2
  • DJI speed sensor
  • DJI 4A 168Wh charger
  • Phantom charge port cover
  • Internal cable routing headset dia 52mm for both top/bottom
  • Drop bar and flat bar both suitable
  • Suspension gravel fork suitable, RS-Rudy/ Fox-32TC / SR GVX etc.
  • Circle seatpost dia 27.2mm, frame insert depth 250mm
  • Dropper and manual Dropper suitable, Dia 27.2mn
  • Dropper cable length 1100mm
  • Chainwheel: 104BCD, up to 44T
  • Crank: length up to 165mm, 0 offset suitable
  • UDH deralleur suitable,up to 13 speed 1x shifting only
  • Shimano and SRAM shift both fit
  • E-shift and manual shift both fi t
  • Manual shift cable length 1650mm
  • Front hub: depends on the fork, normally
    12x100mm
  • Rear hub: 12x142mm thru-axle
  • Rims: 700 Front tyre: 700x45C as suggest, max to 50C
  • Rear tire: 700x45C as suggest, max to 50C

Phantom Features

  • Full Carbon Monocoque Frame

    Award-winning ultra-lightweight carbon monocoque frame.

  • Avinox High Torque Motor

    The Phantom is powered by the market-leading Avinox M2 lightweight drive system with up to 1100W / 125Nm torque in boost and 110Nm of continuous torque.

  • Multi-function Customizable OLED Touch Screen

    Connectivity between motor and mobile.

Phantom Geometry

S M L XL
A Seattube Length (mm) 466 486 506 526
B Top Tube Horizontal (mm) 520 534 551 565
C Toptube Length (mm) 495 515 534 548
D Head Tube Angle (°) 70 70,5 71 71
E Seattube Angle (°) 74,4 74,1 73,6 73,6
F Standover (mm) 772 785 815 830
G Head Tube Length (mm) 135 147 159 179
H Wheelbase (mm) 1015 1019 1030 1040
I Front Center (mm) 600 605 606 620
J Chain Stay Length (mm) 425 425 430 430
K Bottom Bracket Drop (mm) 72,5 72,5 72,5 72,5
L Bottom Bracket Height (mm) 283 283 283 283
M Fork Rake (mm) 50 50 50 50
N Trail (mm) 64 63 63 63
O Stack (mm) 554 567 581 600
P Reach (mm) 366 372 377 385
Q Axle to Crown (mm) 395 395 395 395
Recommended height (cm) 160-170 172-182 180-188 185-195
