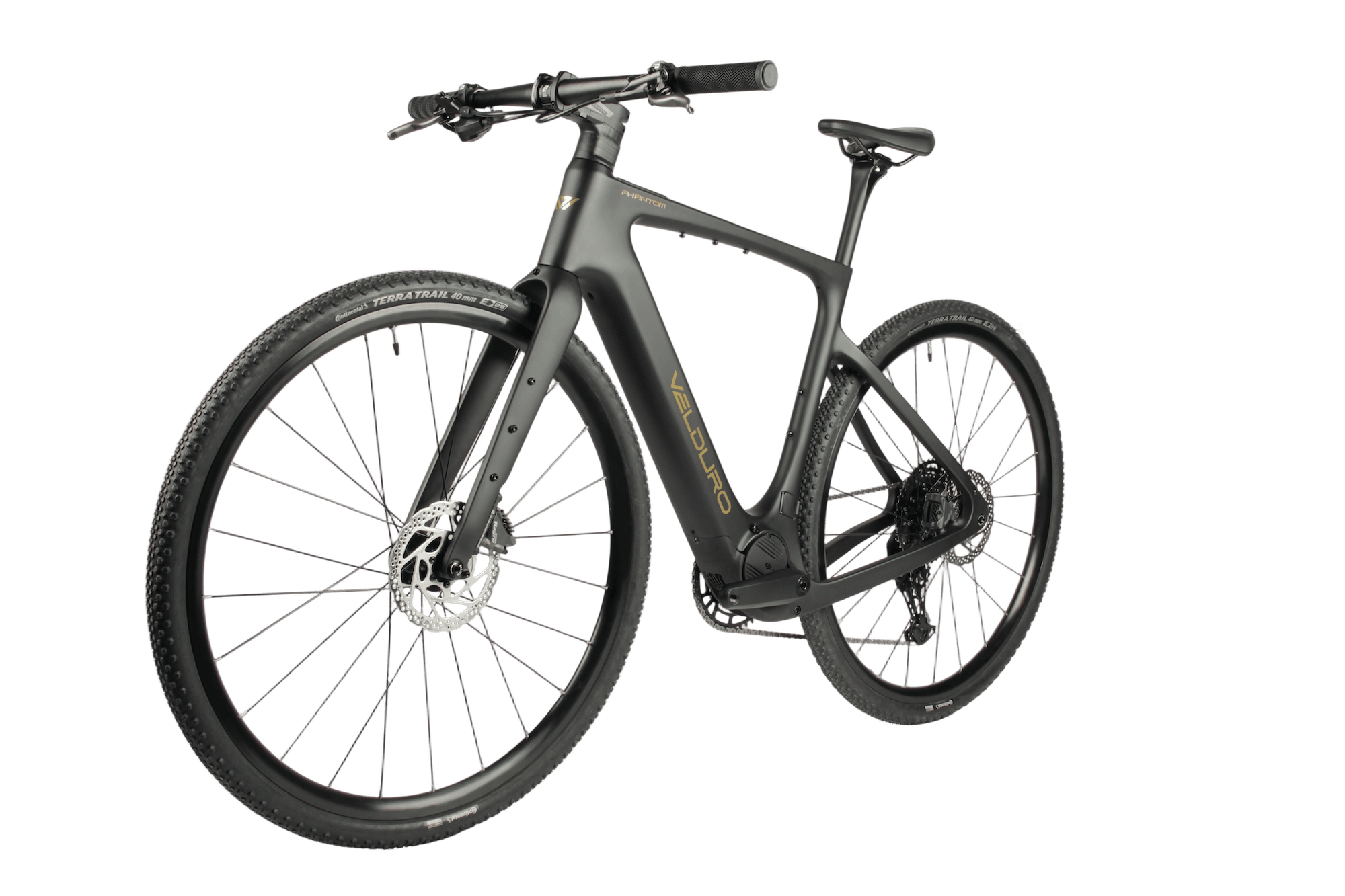

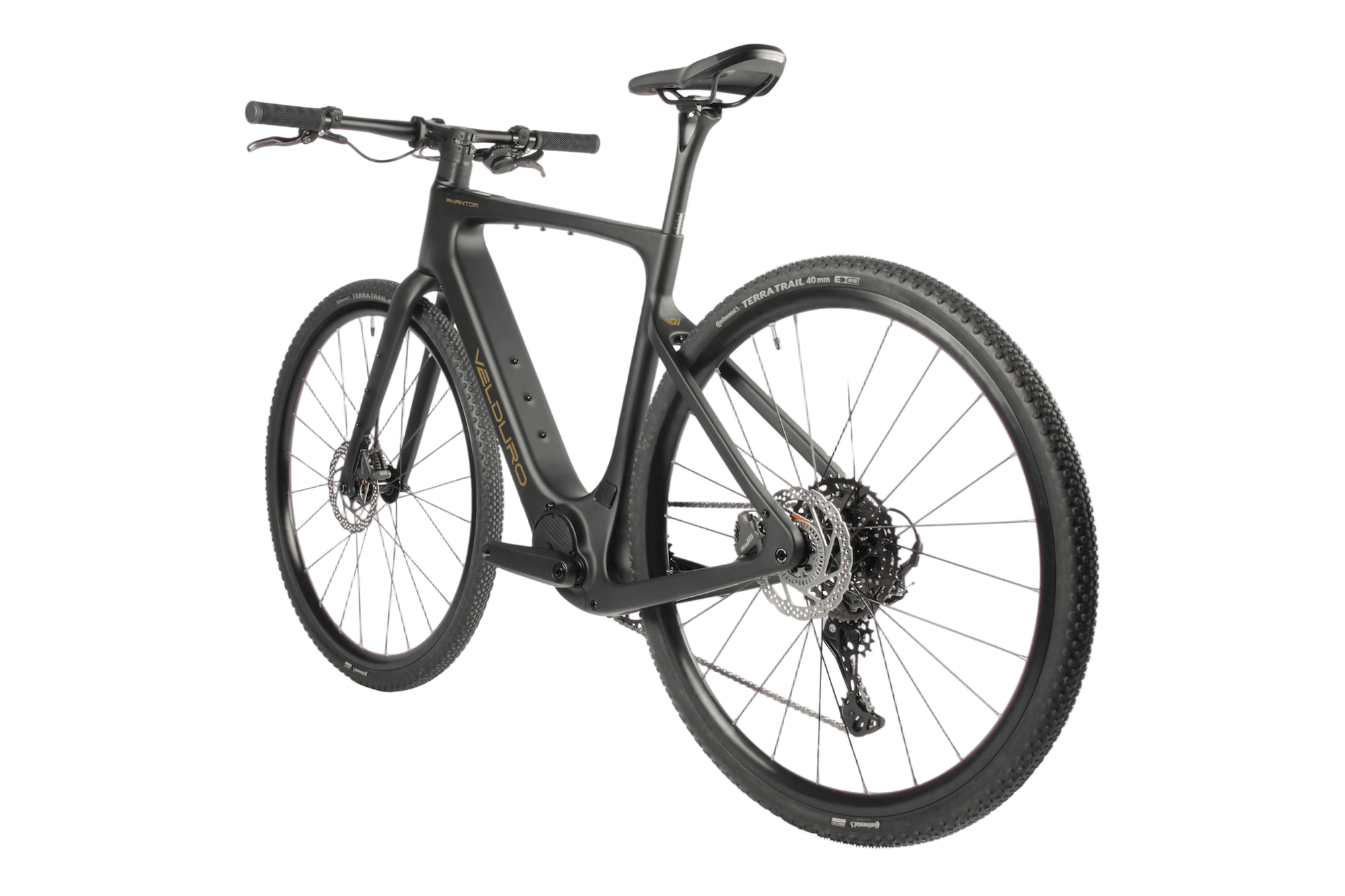

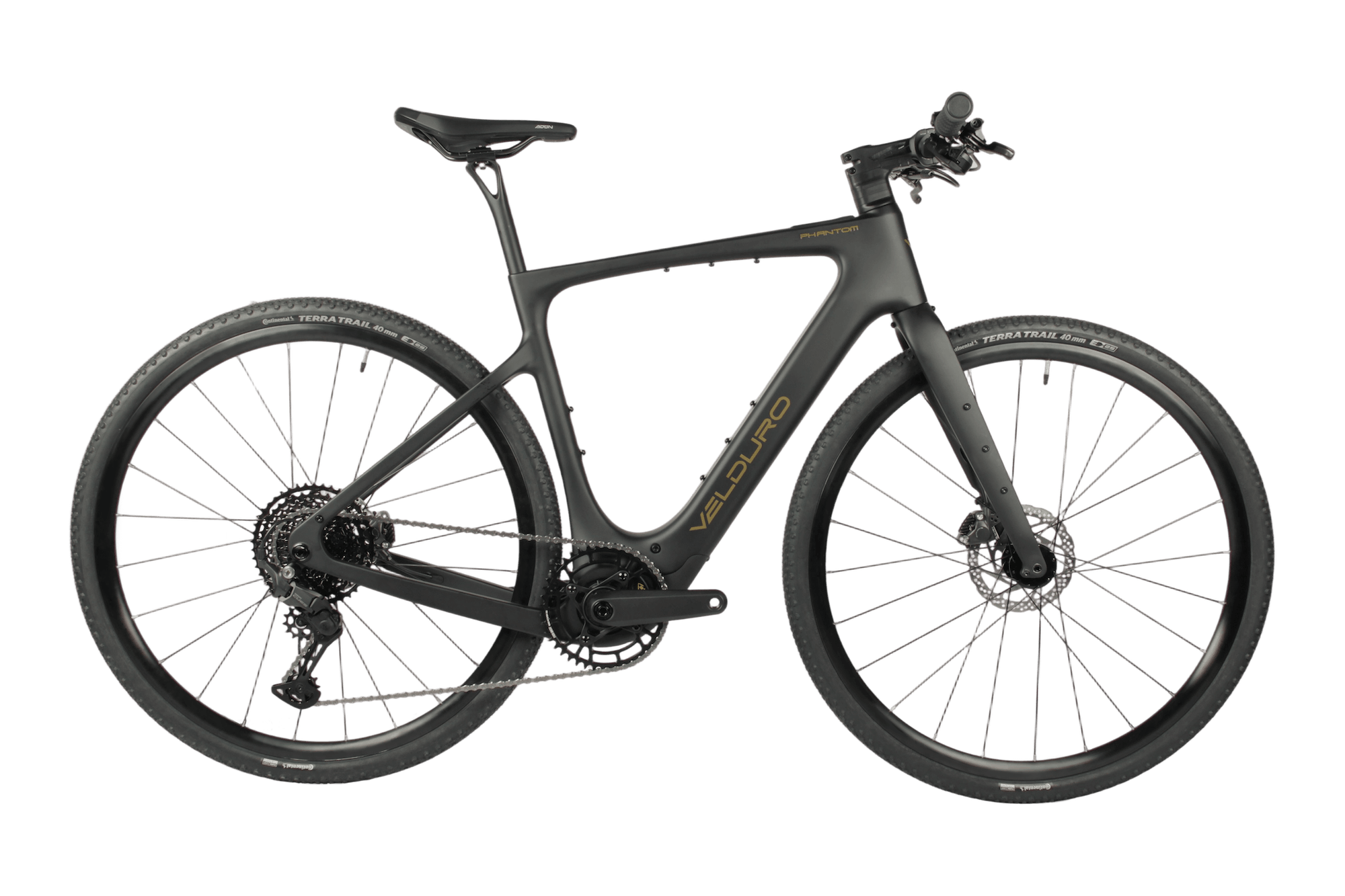

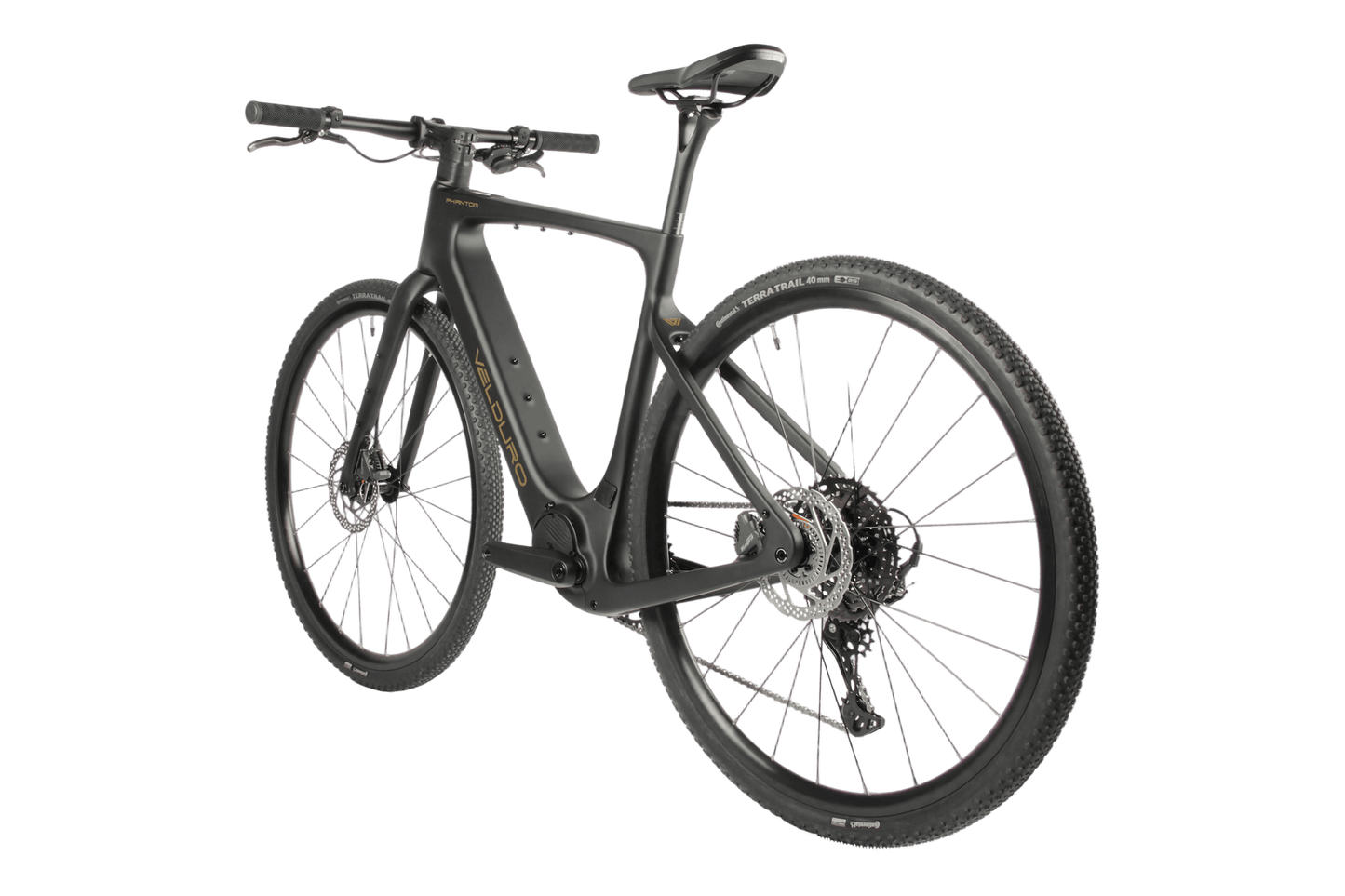

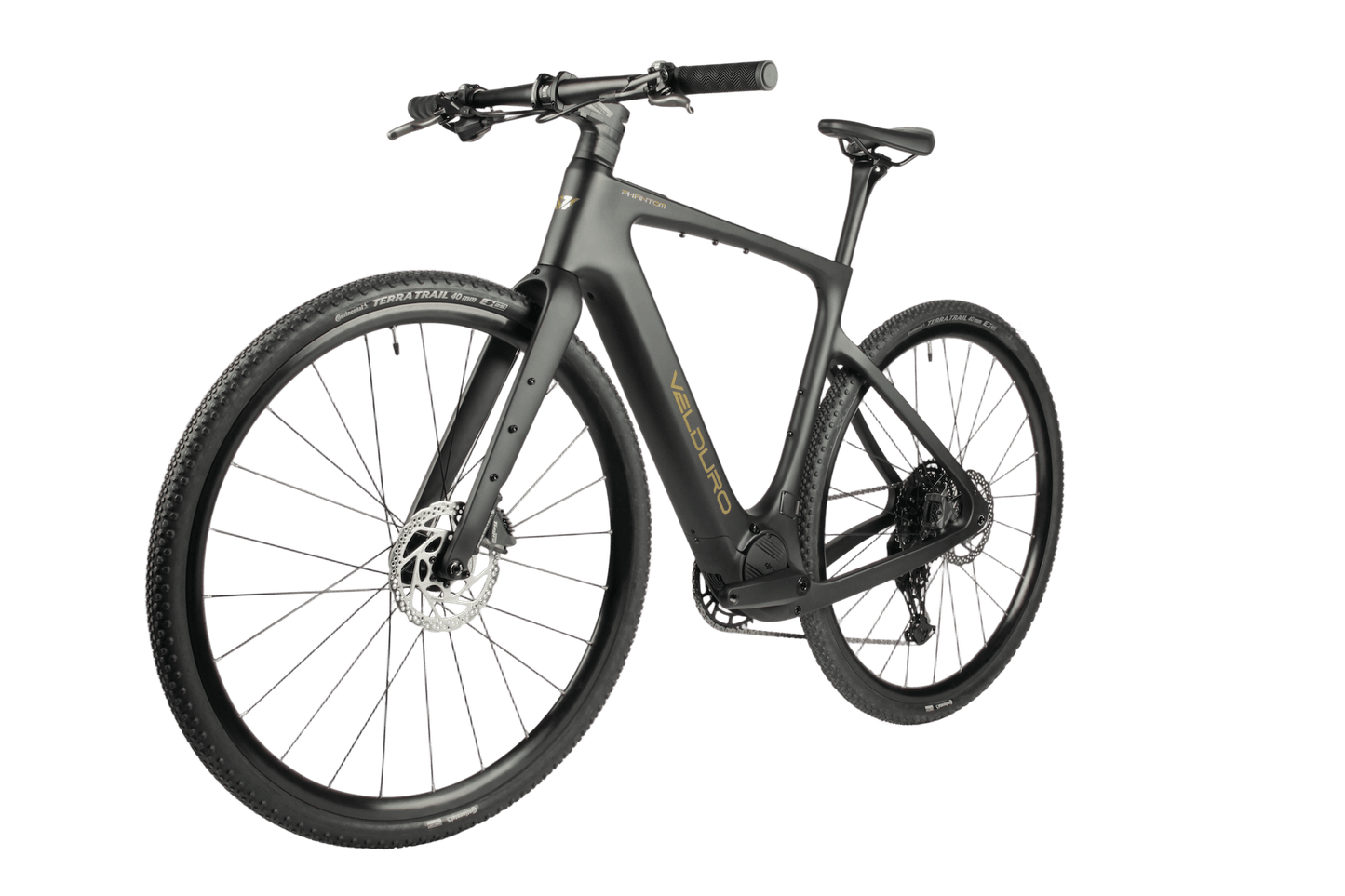

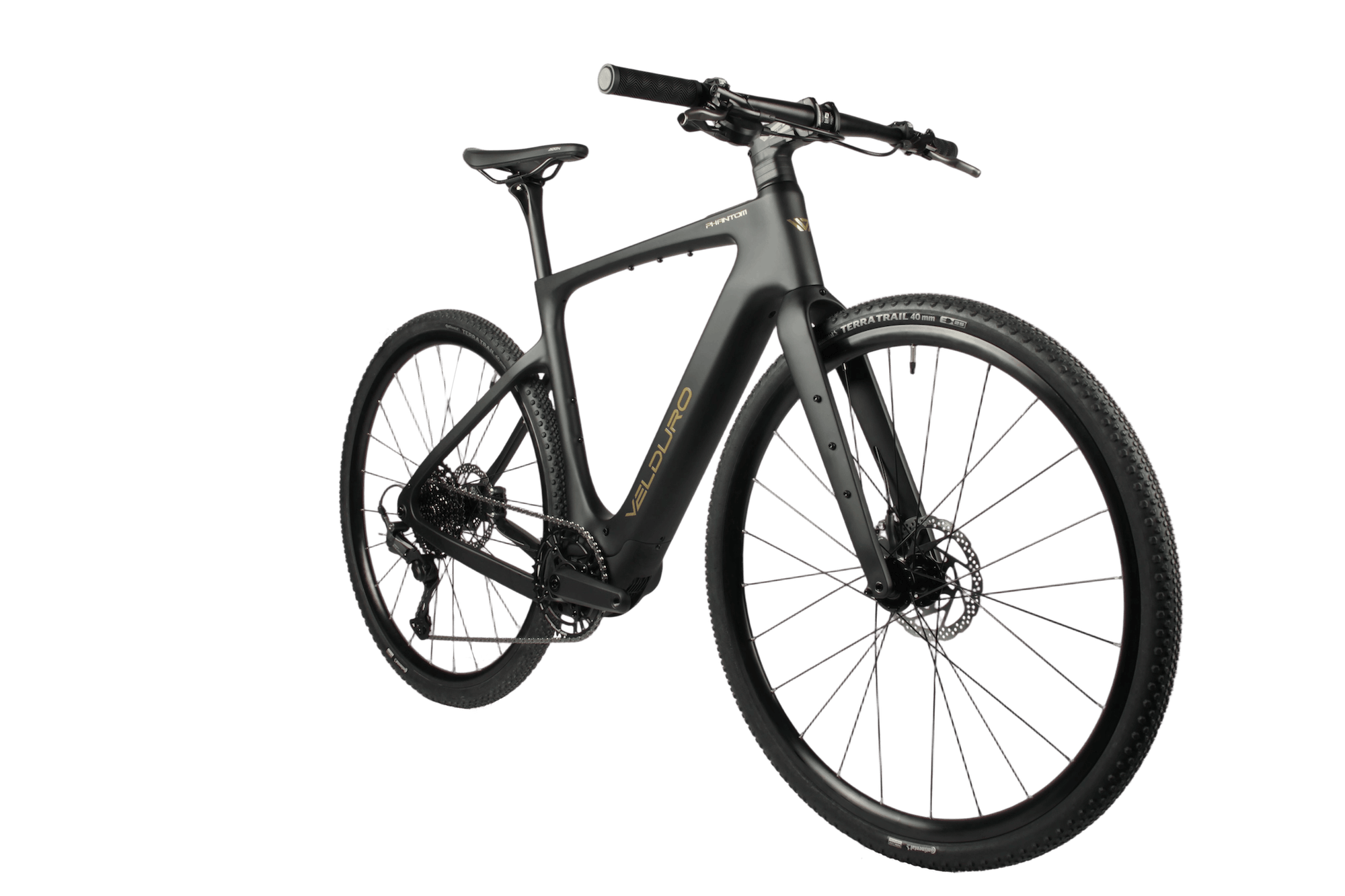

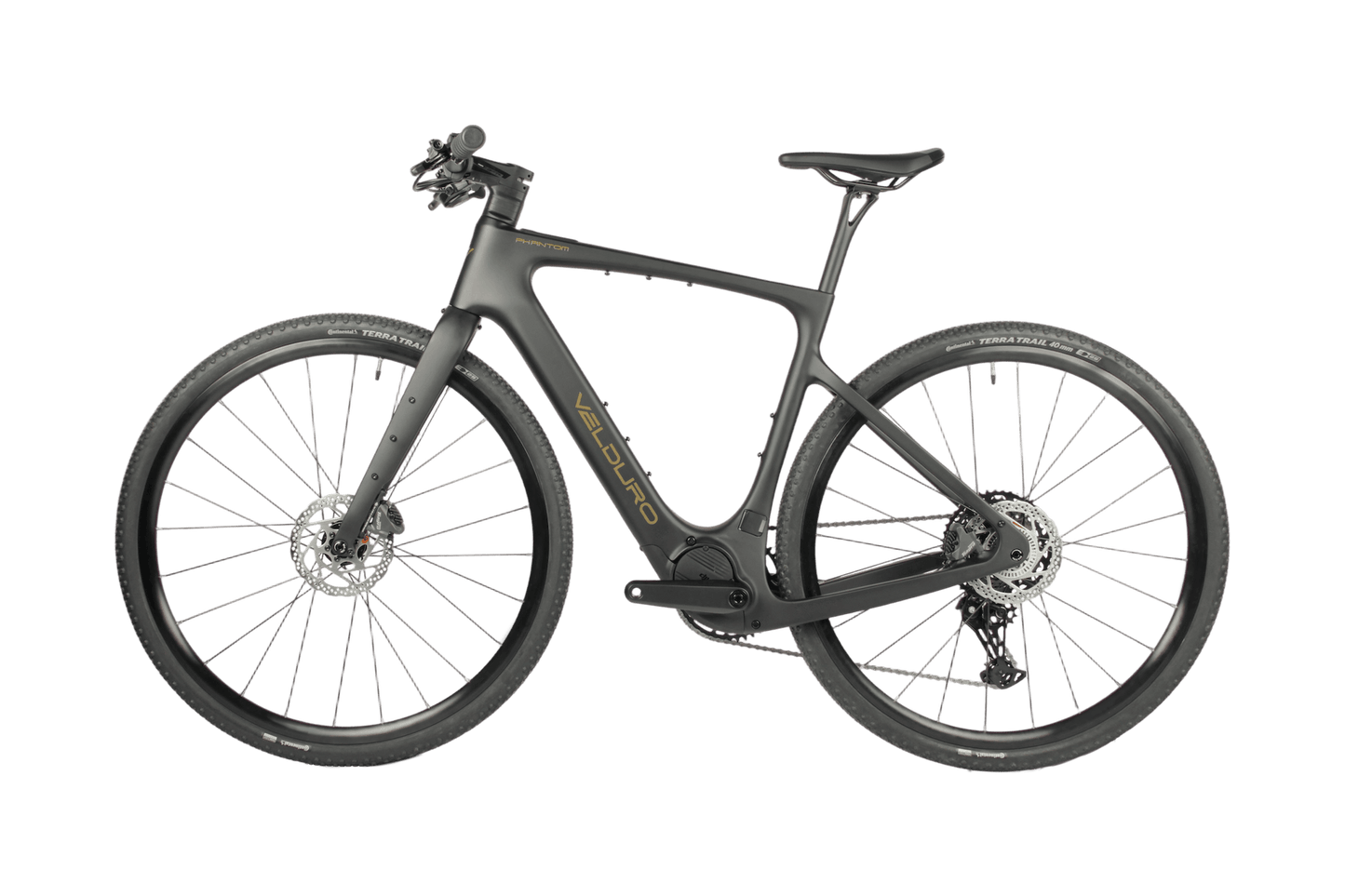

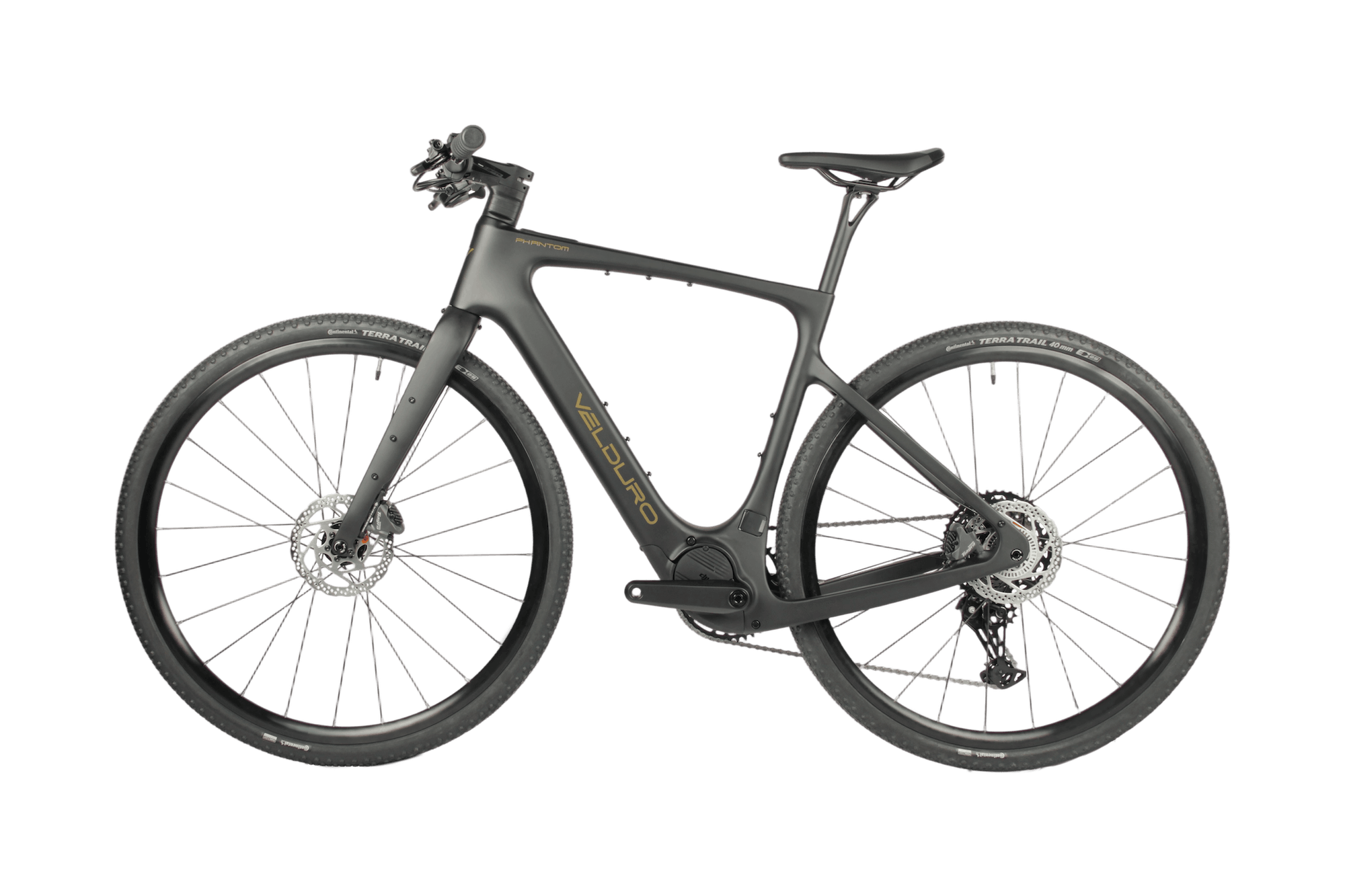

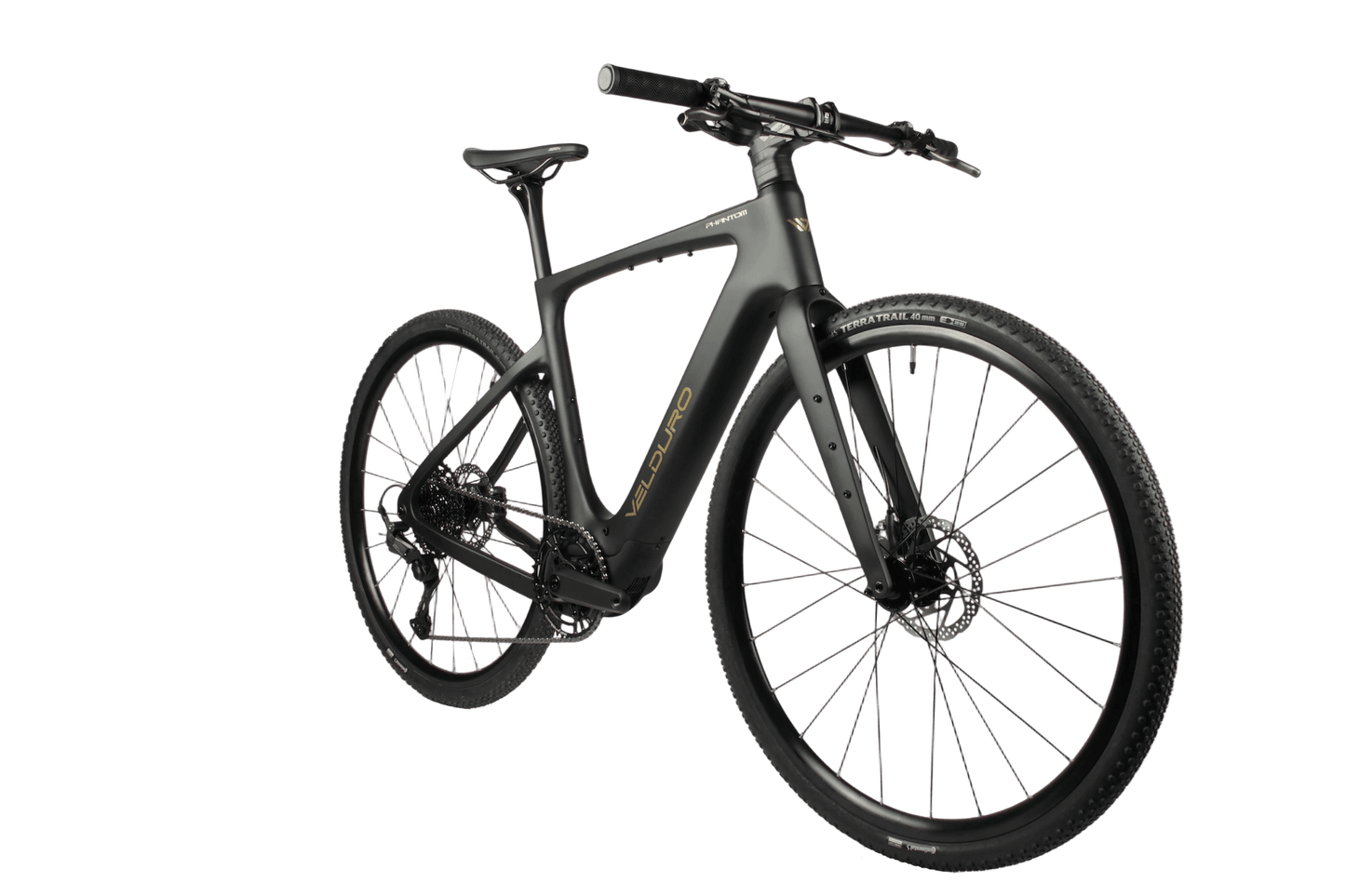

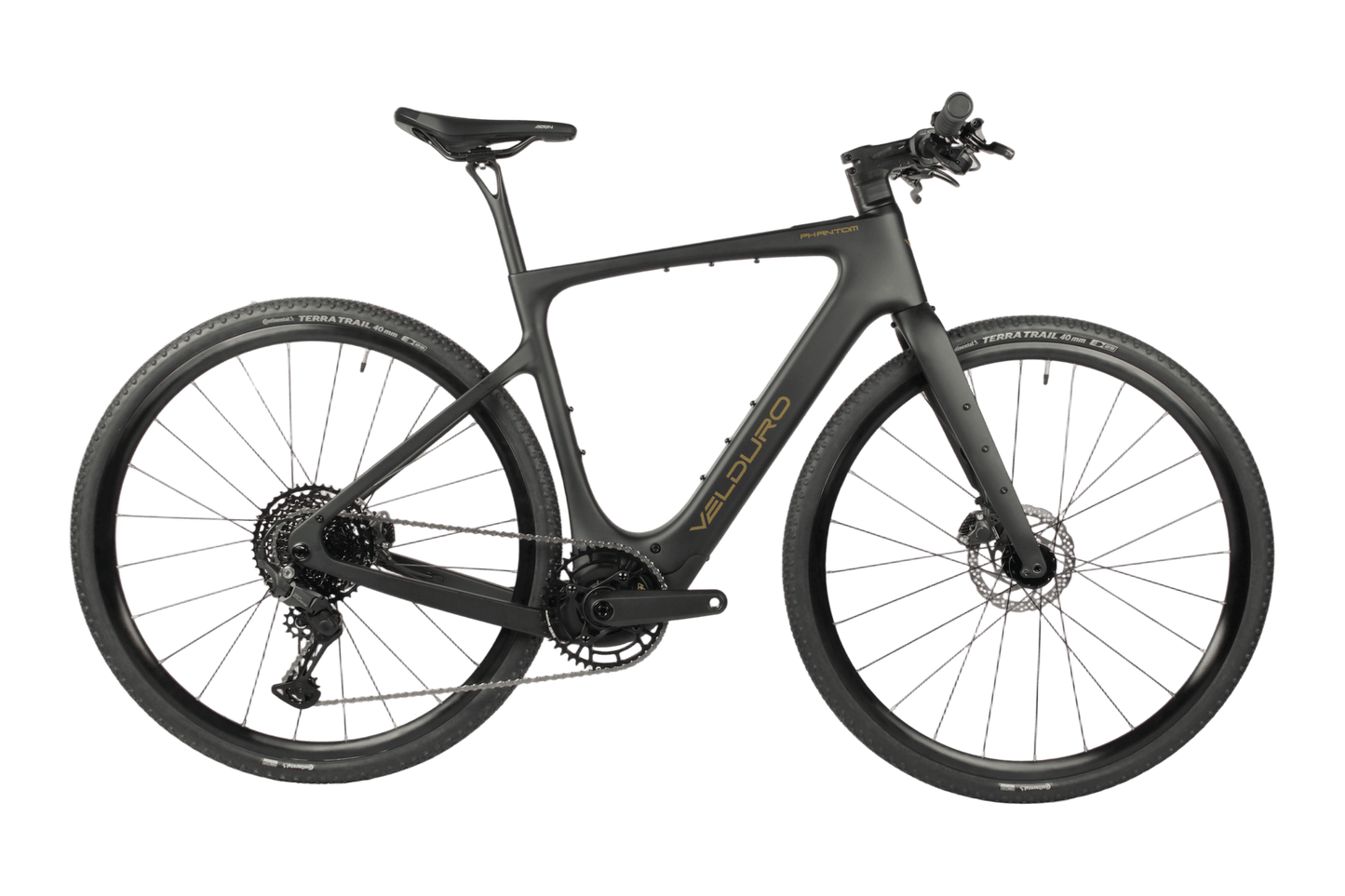

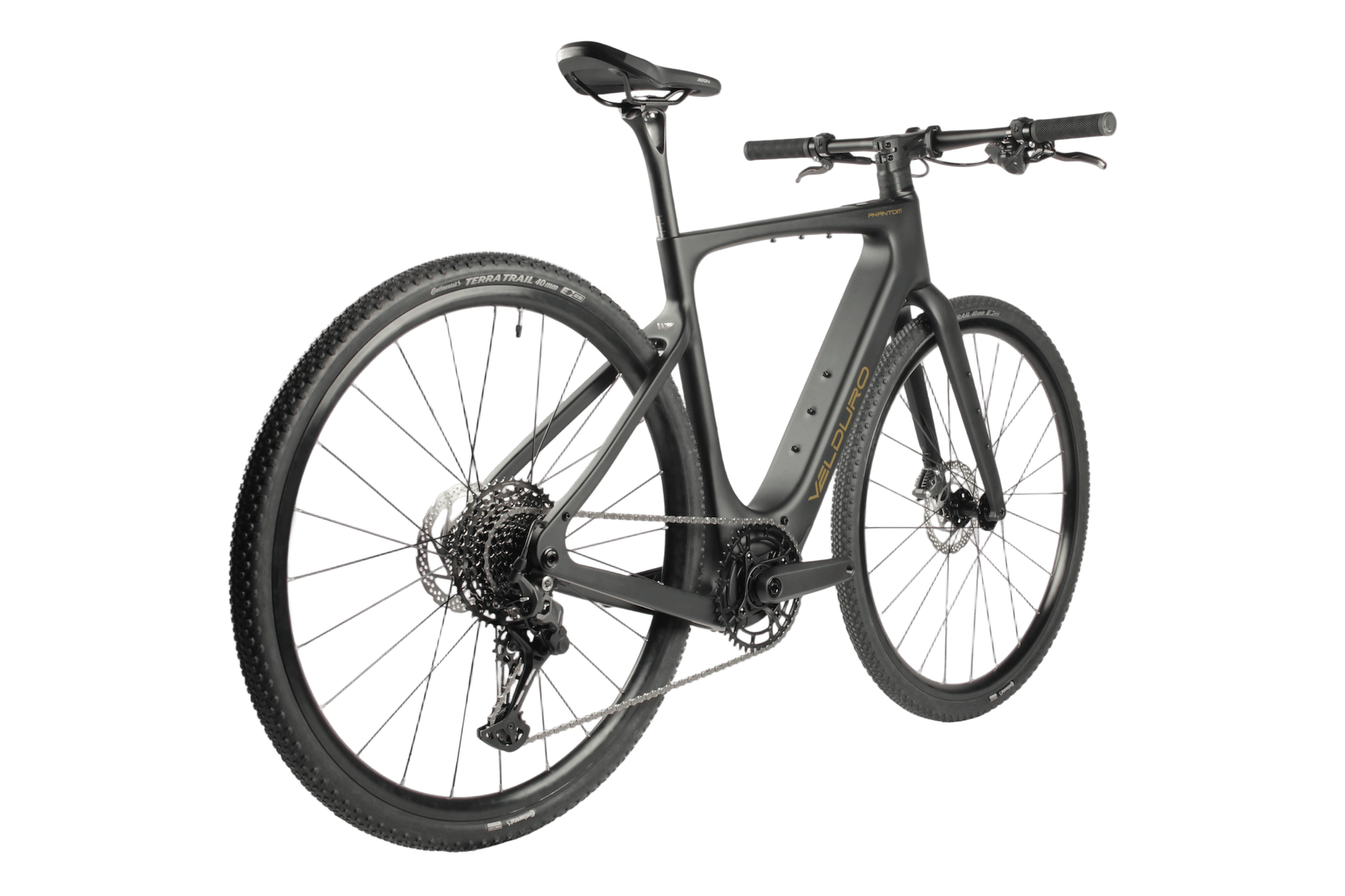

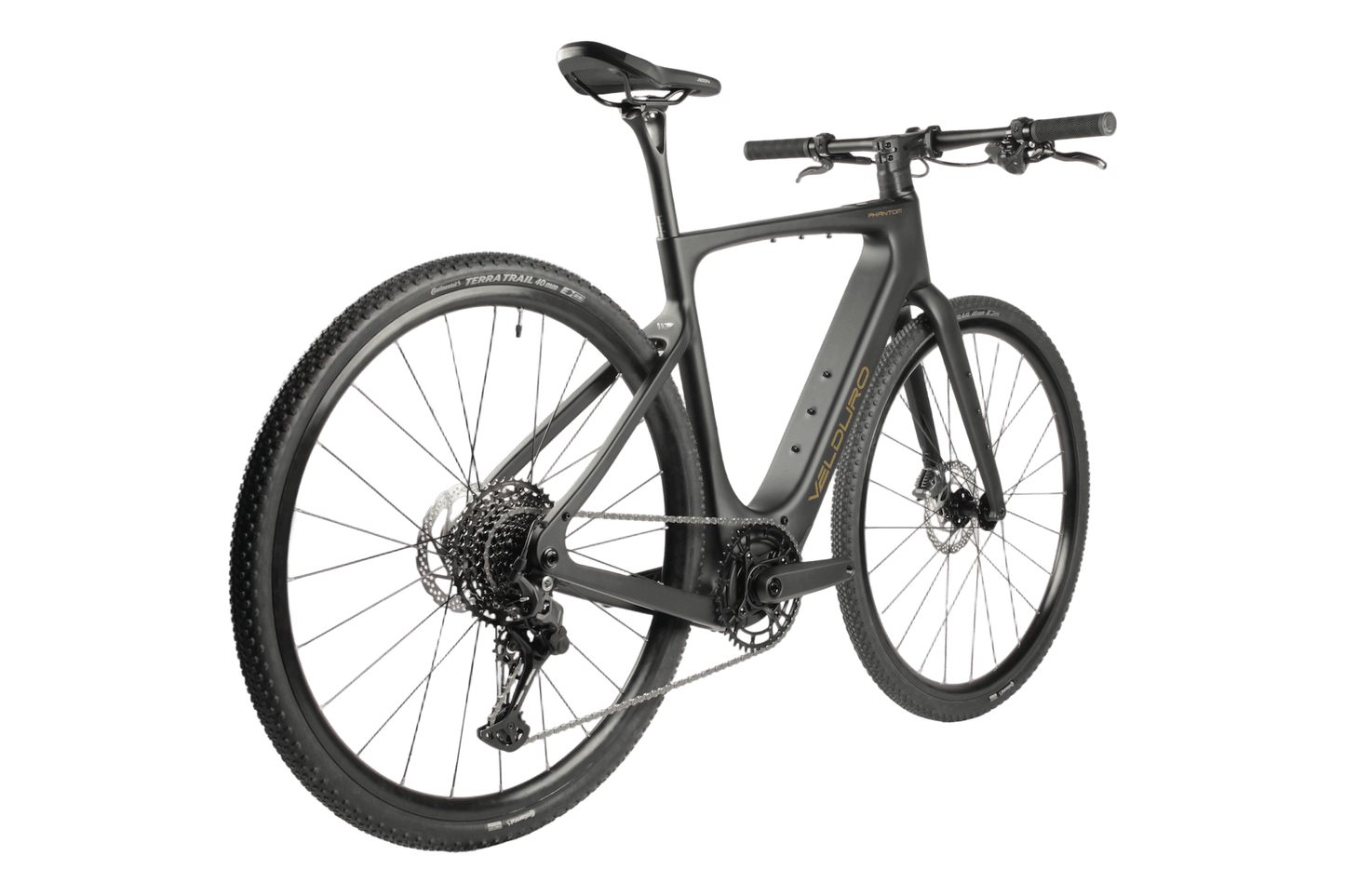

Phantom S

The Phantom S is the ultimate flat bar e-commuting and adventure machine. With the same award-winning ultra-lightweight carbon frame as the Phantom X, this economically priced model is set to revolutionise your commute and weekend riding. Powered by the phenomenal Avinox drive-system, the Phantom S offers unrivalled versatility and performance.

Expected delivery: July 2026
Price
€5.299,00 EUR
€5.299,00 EUR
Size
Carbon Fibre Monocoque Frame
Shimano Cues 11 Speed
8 Mounting Points on Frame &
6 Mounting Points on Fork for Bike Packing
Warranty: Frame 5-Years | Avinox Drive System 2-Years

Specifications

  • Frame: Carbon fiber, gravel catagery, battery integrated, inner cable routing, 12X142mm, 8 mounting points, rack compatible.
  • Fork: Carbon gravel fork, 6 mounting point 12X100mm, offset 50mm.
  • Headset: Token TK155SP Dia28.6, Alloy dia top & bottom 52mm.
  • Saddle: Fizik terra aidon X5.
  • Seatpost: Velduro carbon Dia27.2 380mm, BLK.
  • Handlebar: Velduro alloy MTB straight, Dia31.8, width:680mm, BLK.
  • Stem: Velduro Alloy road stem, BLK, S&M: 75mm, L&XL: 95mm Length.
  • Grips: Velduro MTB comfort BLK.
  • Motor: Avinox M2 36V 1100W / 110Nm, boost 125Nm.
  • Battery: Avinox 600Wh integrated.
  • Display: Avniox DP100 integrated 2-inch display.
  • Button: Avinox BC100 Wireless control left&right.
  • Charger: Avinox 4A charger.
  • Cables: Avinox customised Waterproof and foolproof wiring.
  • Brakes: Sram S300 hydraulic, two piston
    Discs: Sram centerline, front 160mm, rear 160mm.
  • Rear derailleur: Shimano Cues RD-U6000, 11-speed.
  • Cassette: Shimano Cues LG400-11S 11-45T.
  • Cranks: Avinox SL 165mm.
  • Spider: Avinox 104BCD spider.
  • Chainwheel: Velduro customised alloy 44T, 3mm inward.
  • Chain: Shimano LG500 linkglide BLK.
  • Front hub: Velduro 2-bearings, BLK, 6-bolts, 13G*24H, 12x100mm.
  • Rear hub: Velduro 4-bearings, BLK, 6-bolts, 13G*24H, 12x142mm, HG freehub.
  • Rims: 700C, Velduro alloy, BLK, 13G*24H, 25mm inner width, 25mm depth, with hook.
  • Tires: Continental Terra Trail 700*45C BLK, with tube.

* Your Phantom is tubeless-ready, but comes with a tube.

Phantom Features

  • Full Carbon Monocoque Frame

    Award-winning ultra-lightweight carbon monocoque frame.

  • Avinox High Torque Motor

    The Phantom is powered by the market-leading Avinox M2 lightweight drive system with up to 1100W / 125Nm torque in boost and 110Nm of continuous torque.

  • Multi-function Customizable OLED Touch Screen

    Connectivity between motor and mobile.

Phantom Geometry

S M L XL
A Seattube Length (mm) 466 486 506 526
B Top Tube Horizontal (mm) 520 534 551 565
C Toptube Length (mm) 495 515 534 548
D Head Tube Angle (°) 70 70,5 71 71
E Seattube Angle (°) 74,4 74,1 73,6 73,6
F Standover (mm) 772 785 815 830
G Head Tube Length (mm) 135 147 159 179
H Wheelbase (mm) 1015 1019 1030 1040
I Front Center (mm) 600 605 606 620
J Chain Stay Length (mm) 425 425 430 430
K Bottom Bracket Drop (mm) 72,5 72,5 72,5 72,5
L Bottom Bracket Height (mm) 283 283 283 283
M Fork Rake (mm) 50 50 50 50
N Trail (mm) 64 63 63 63
O Stack (mm) 554 567 581 600
P Reach (mm) 366 372 377 385
Q Axle to Crown (mm) 395 395 395 395
Recommended height (cm) 160-170 172-182 180-188 185-195
