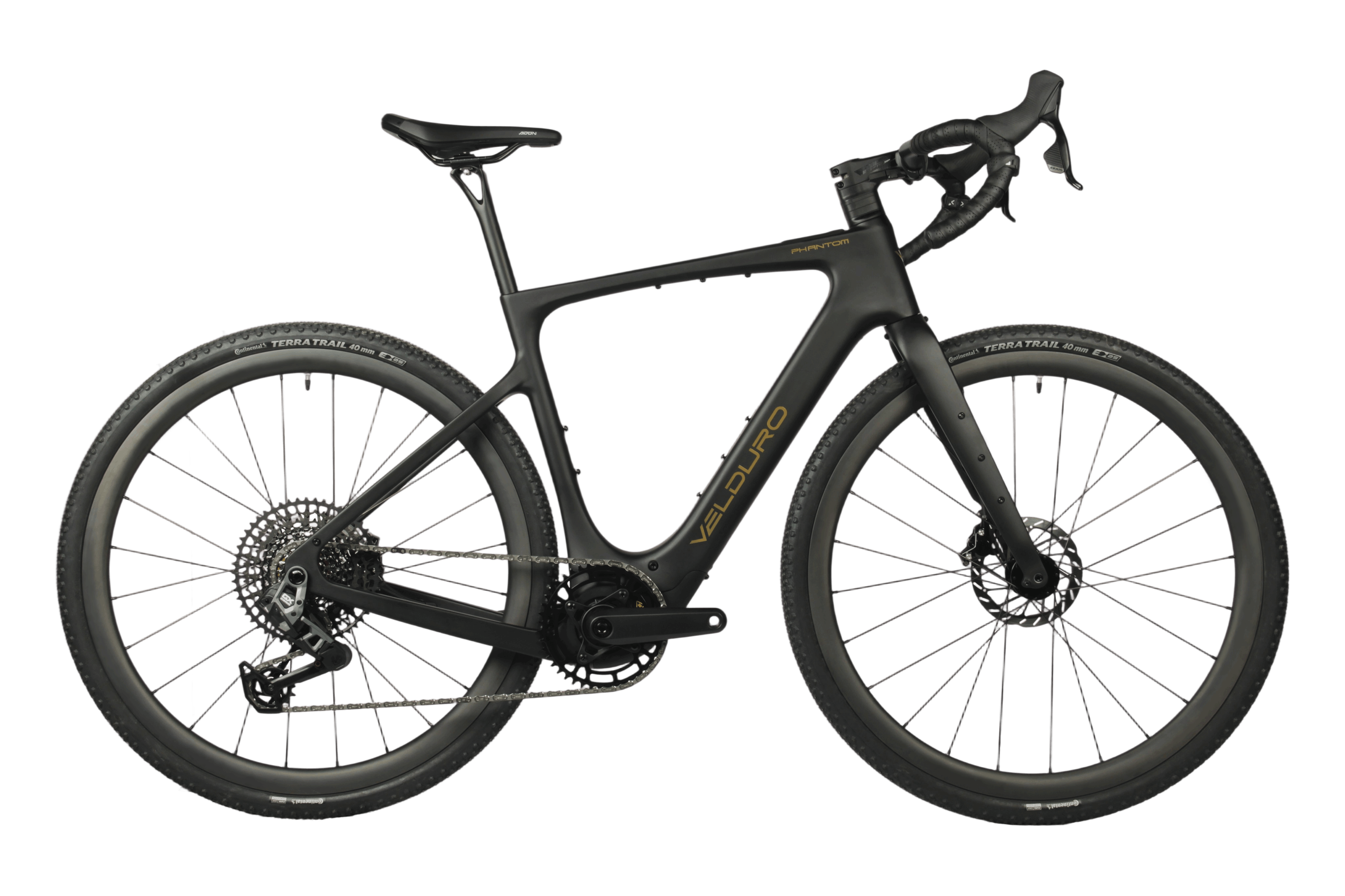

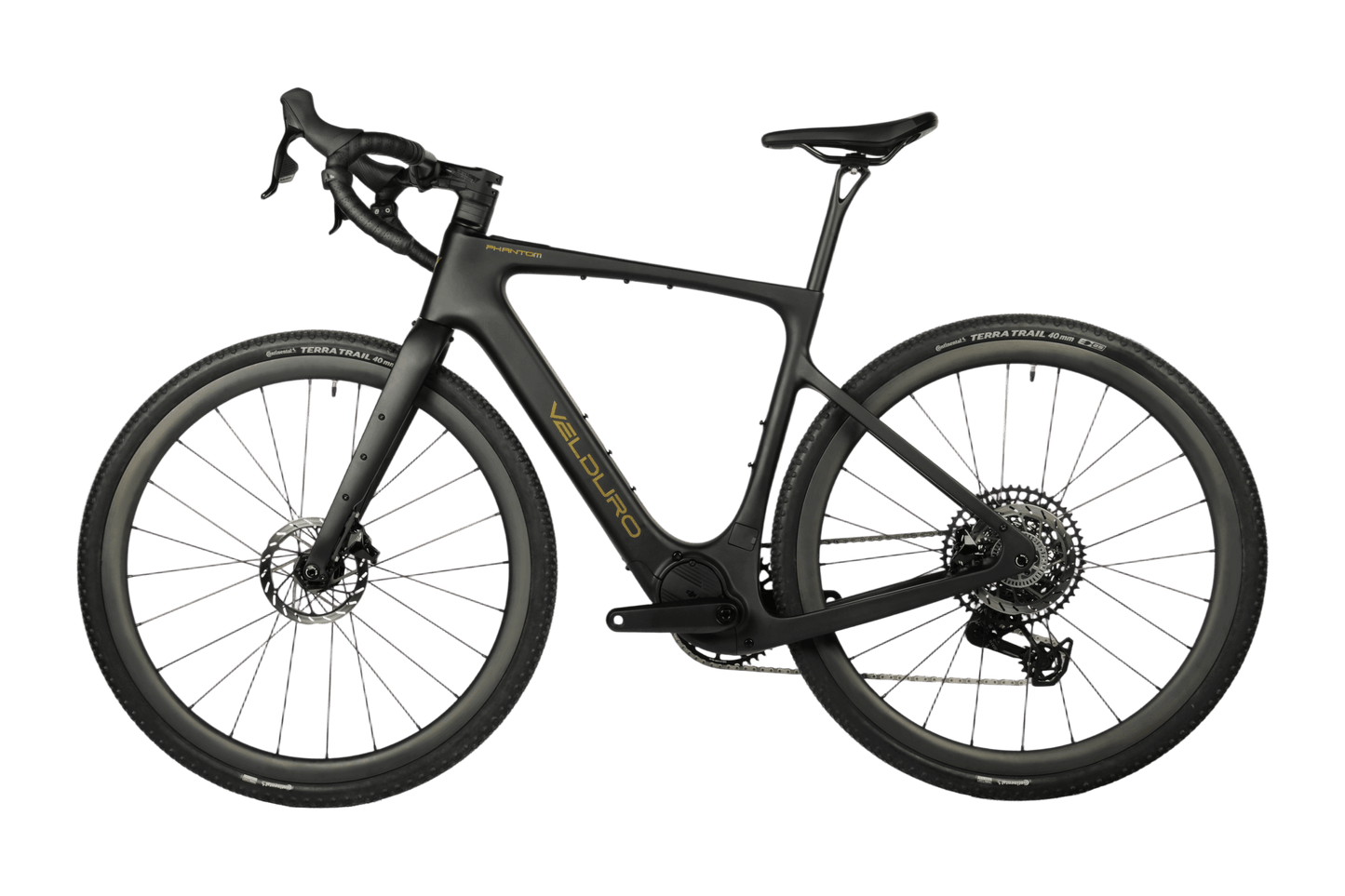

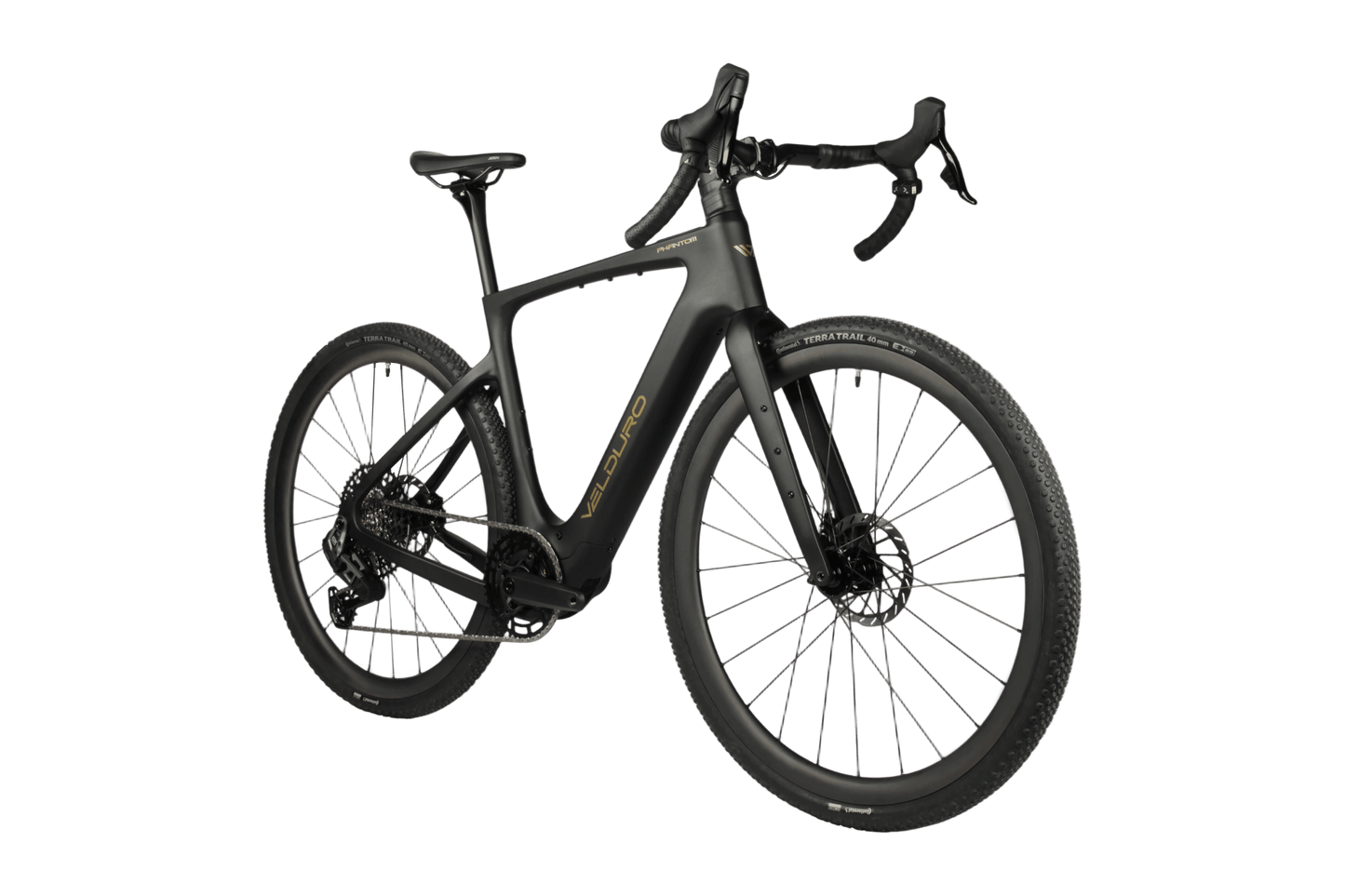

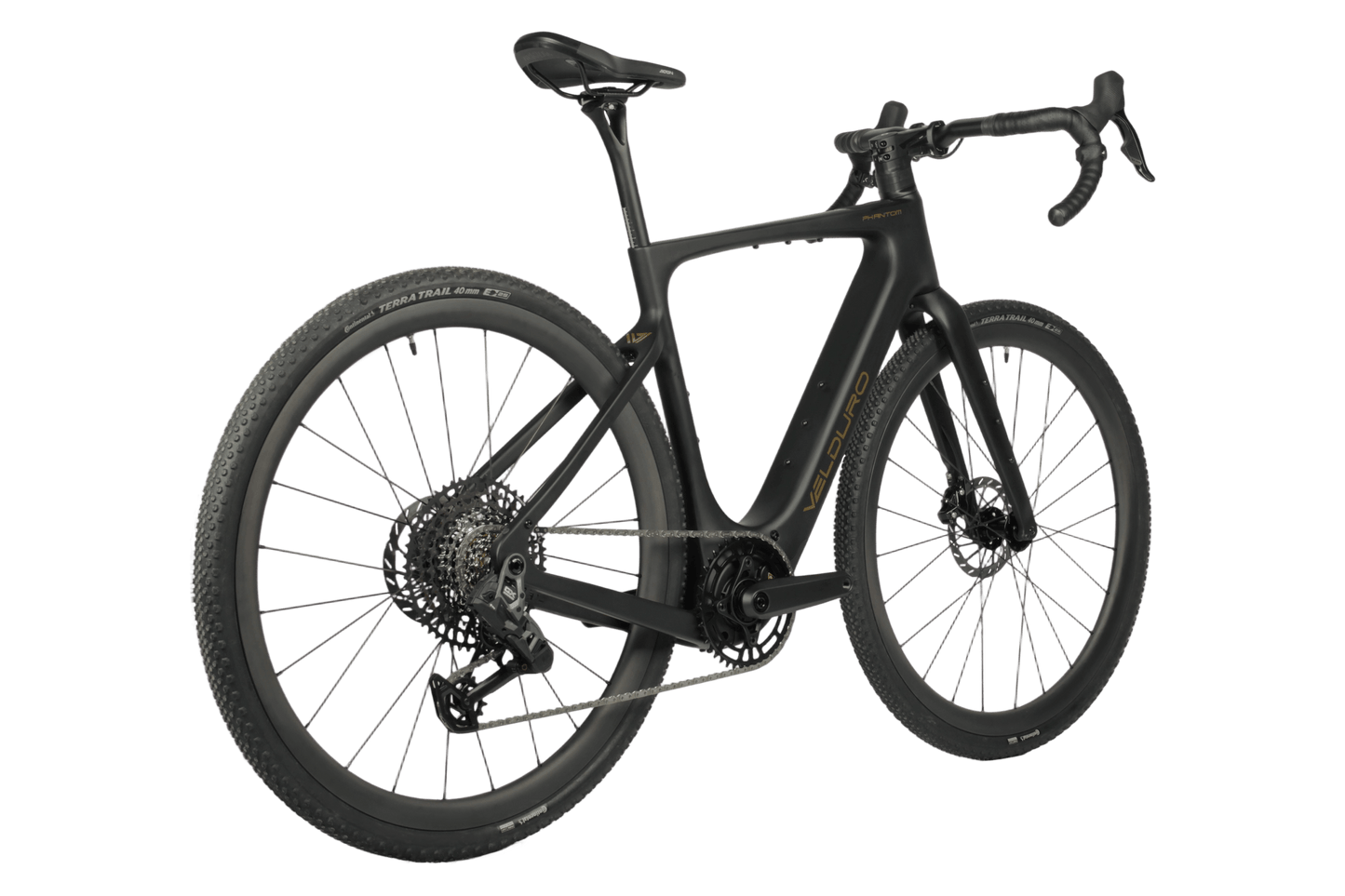

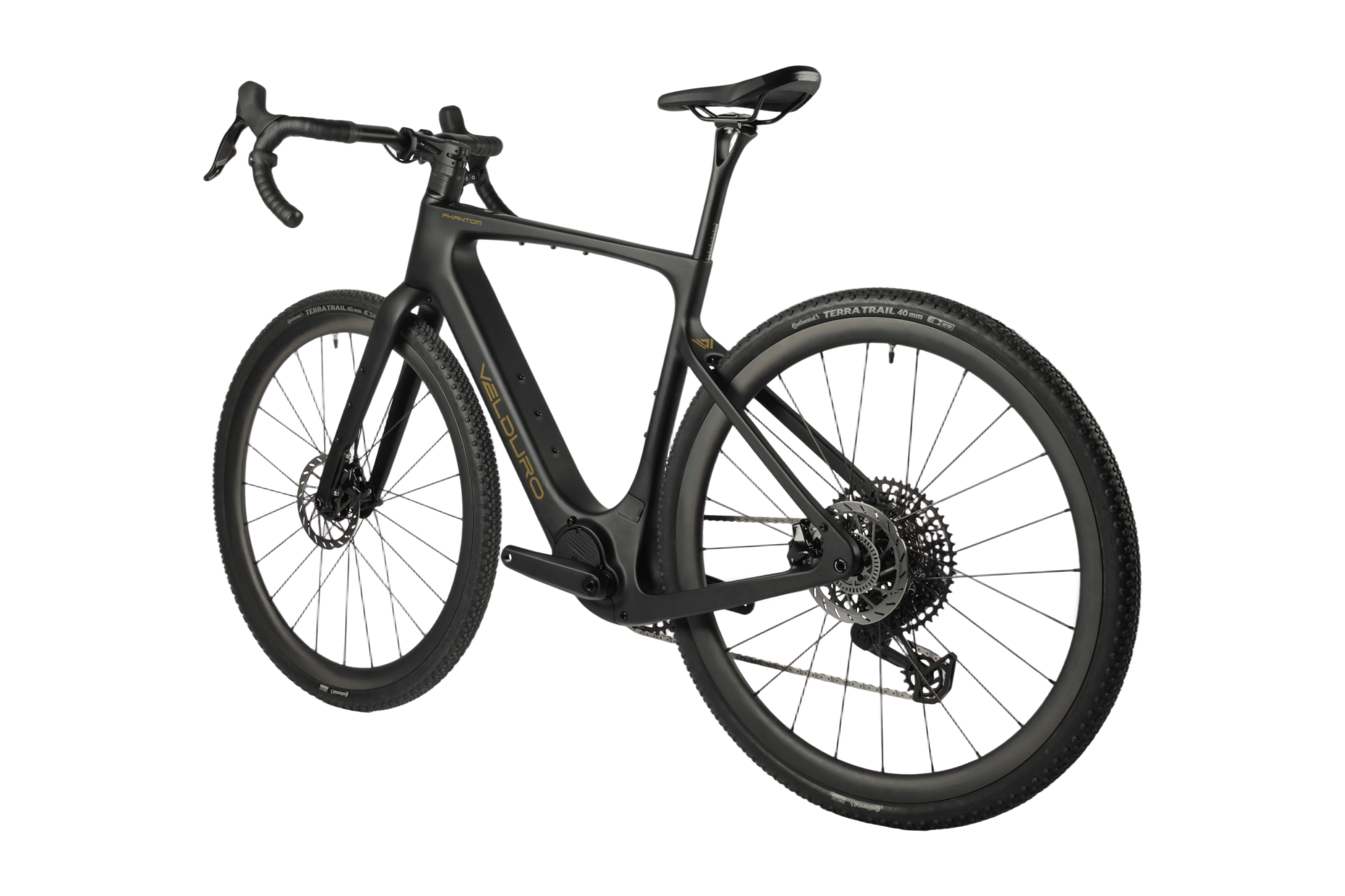

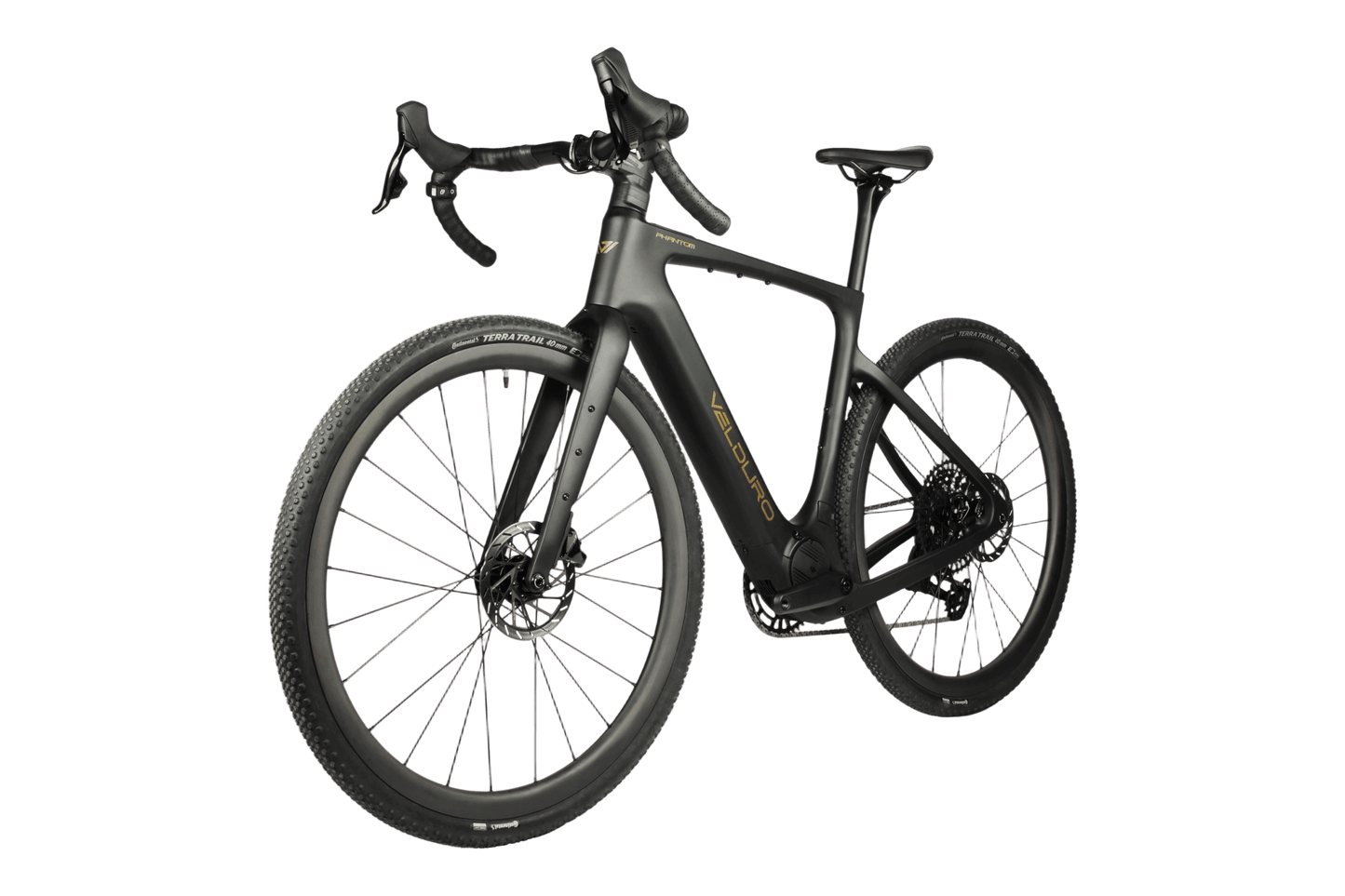

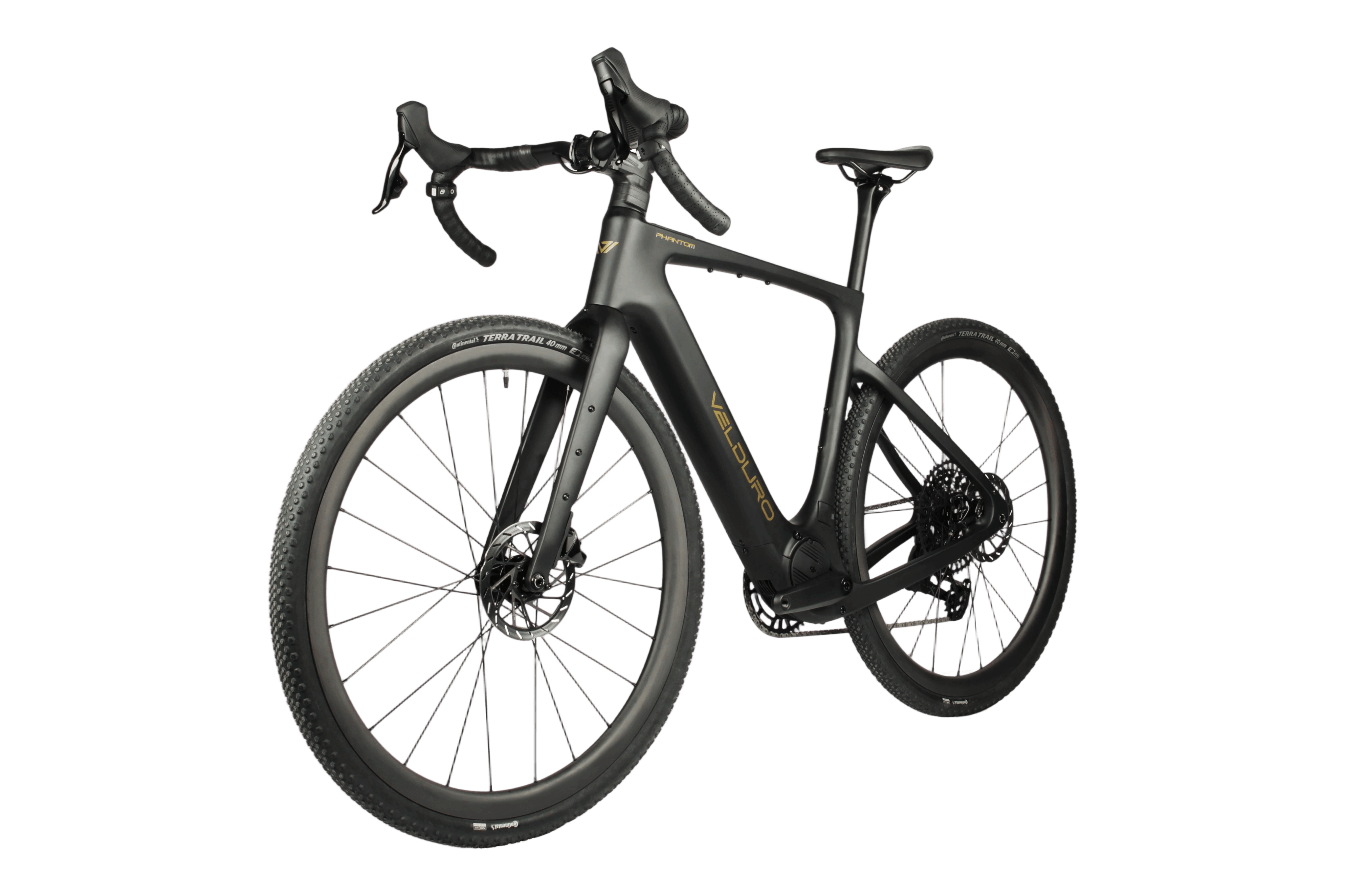

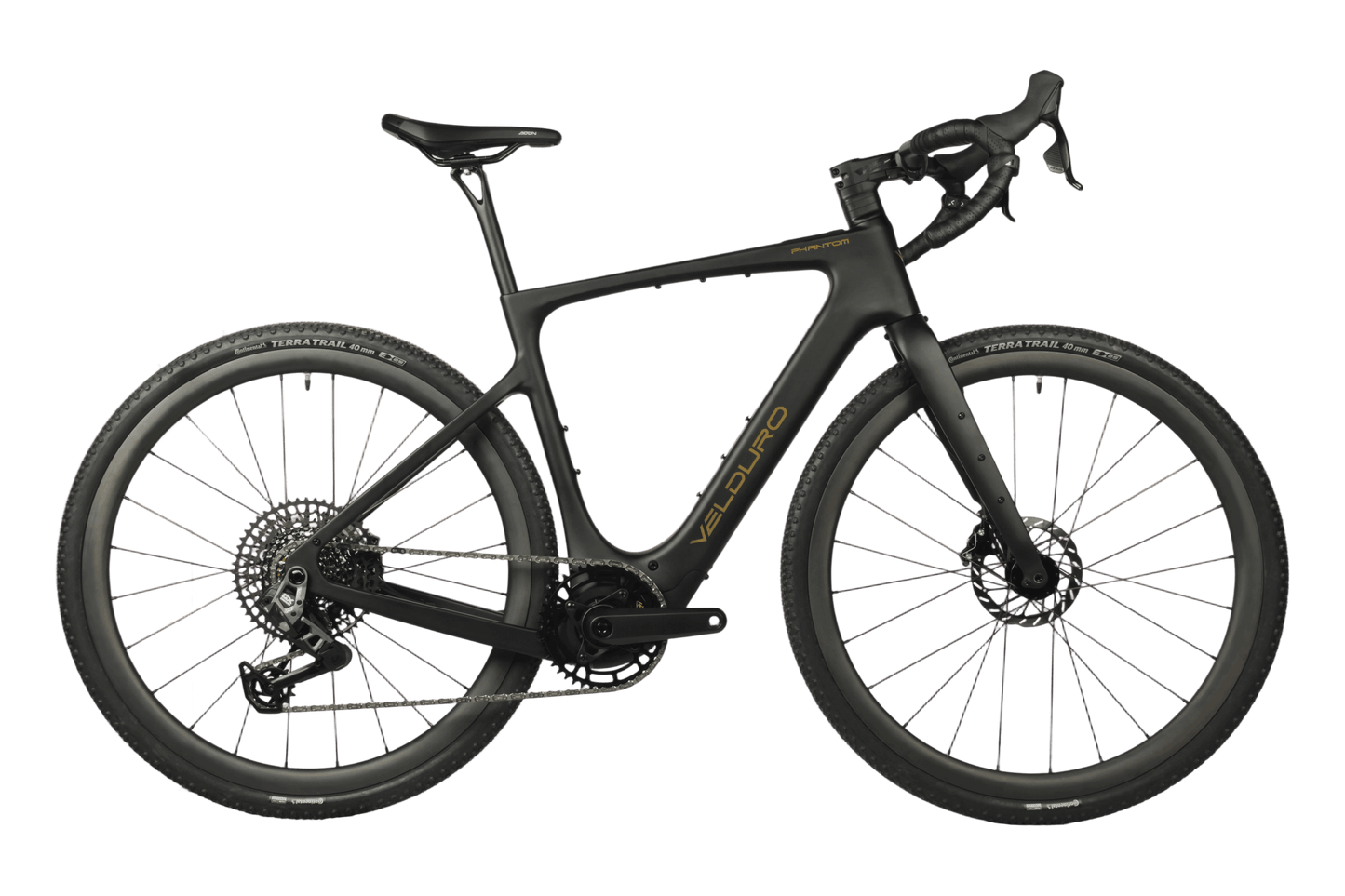

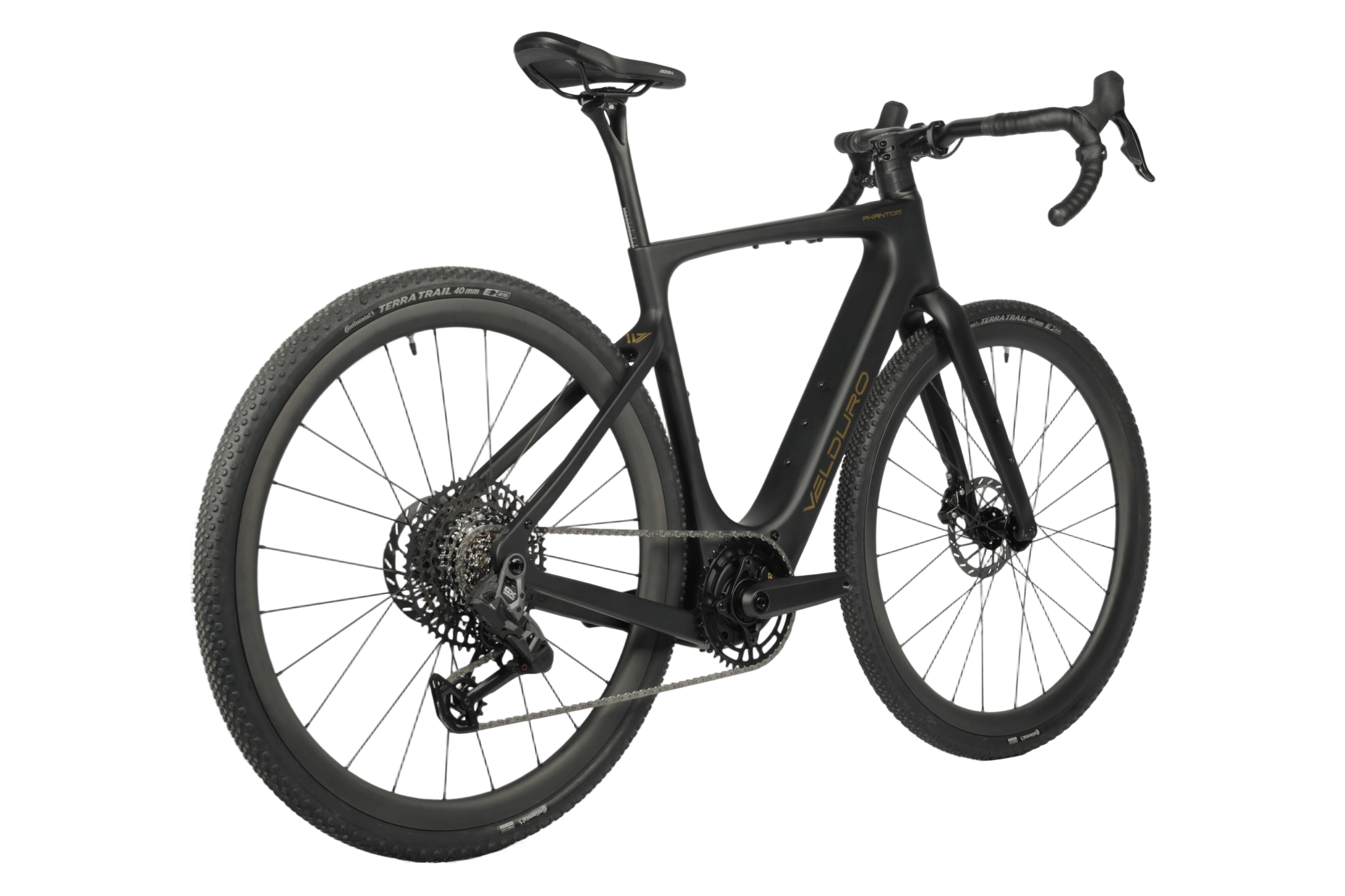

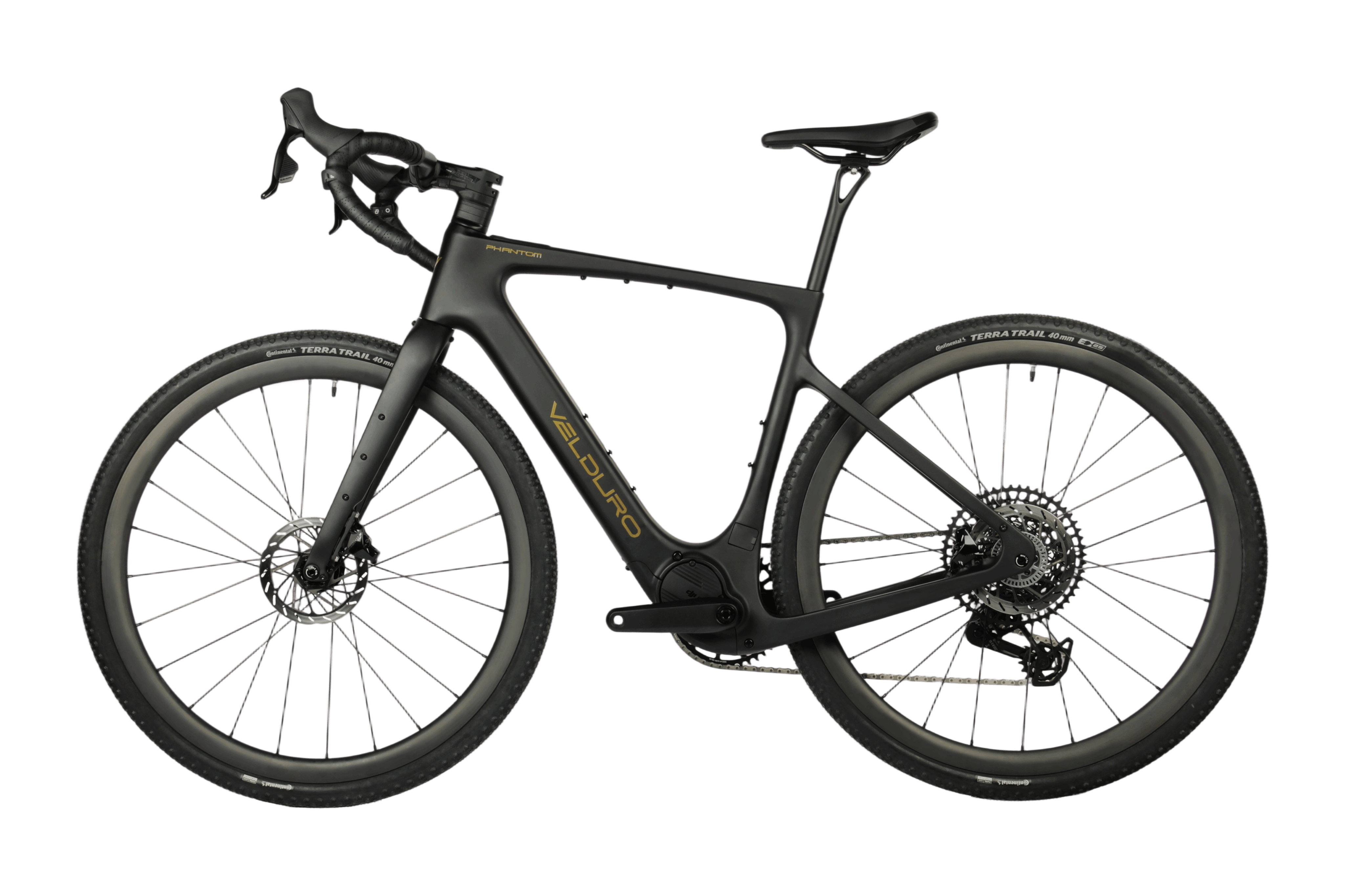

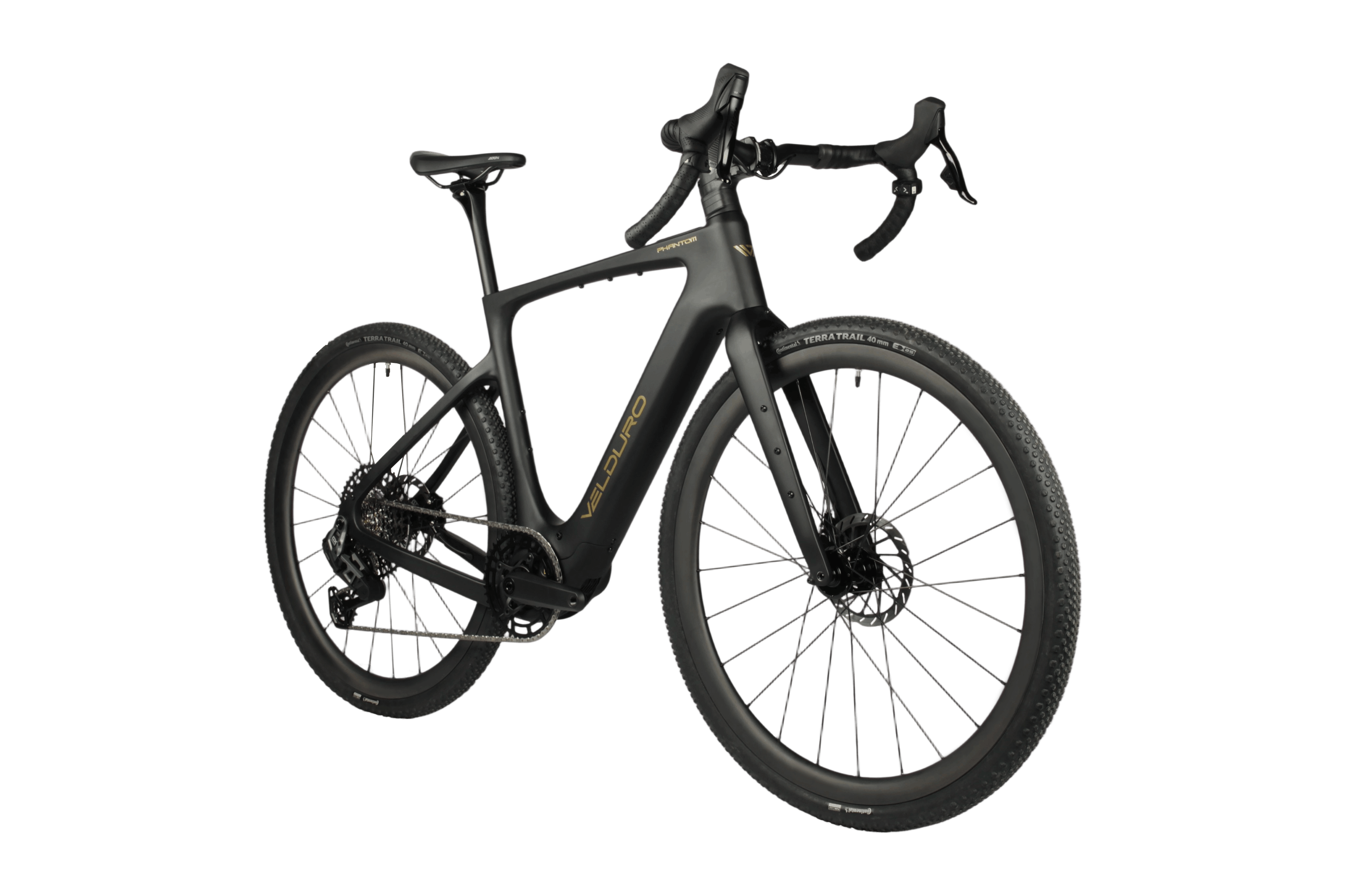

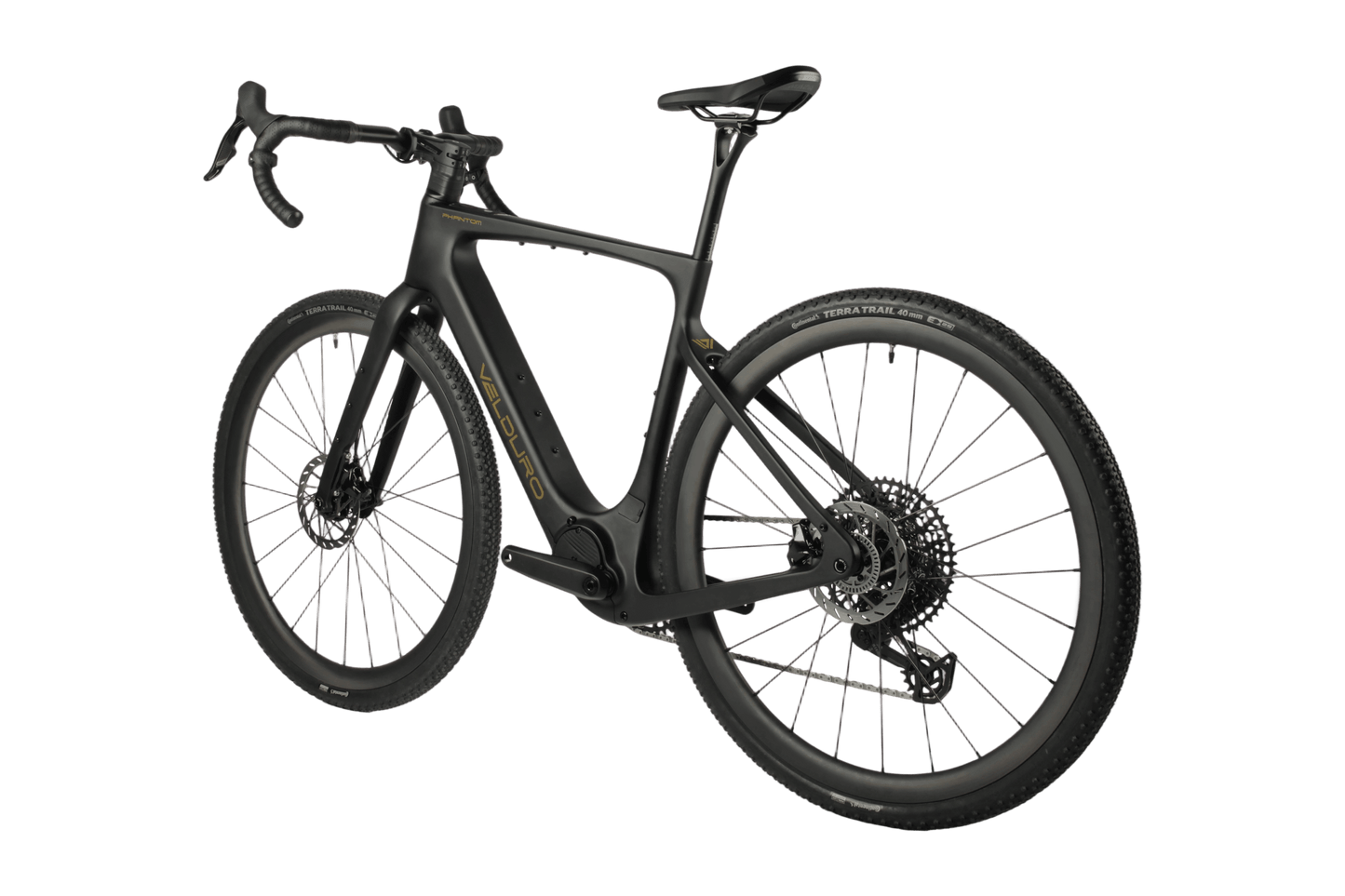

Phantom X

Our Award-Winning e-gravel machine has not compromised on weight, strength, quality, or tyre size. We have collaborated with gravel riders to create the ultimate ride, allowing them the freedom to explore and conquer any terrain put in front of them. The combination of our light-weight carbon frame, gear set and powered by the DJI Avinox motor system makes the Phantom the fastest and most versatile e-gravel bike on the market.

Expected delivery: July 2026
Price
€6.999,00 EUR
€6.999,00 EUR
Size
Carbon Fibre Monocoque Frame
SRAM Rival E1 13-S ASX Electric Shifter
8 Mounting Points on Frame &
6 Mounting Points on Fork for Bike Packing
Warranty: Frame 5-Years | Avinox Drive System 2-Years

Specifications

  • Frame: Carbon fibre, gravel category, battery integrated, inner cable routing, 12X142mm, 8 mounting points, rack compatible
  • Fork: Carbon gravel fork, 6 mounting points, 12X100mm, offset 50mm
  • Headset: FSA NO.55R 1.5" / 558 ACR, Alloy gravel, dia top& bottom 52mm
  • Stem: FSA SMR Alloy -6° alloy Length S:70mm M:80mm, L:90mm, XL:100mm
  • Saddle: Fizik Terra Aidon X5
  • Seatpost: Velduro carbon Dia27.2 380mm
  • Handlebar: Velduro Carbon, Dia31.8, Flare 15°, Width: S/M 420mm, L/XL: 440mm
  • Straps: Velduro black gravel strap
  • Motor: Avinox M2 36V 1100W / 110Nm, boost 125Nm.
  • Battery: Avinox 600Wh integrated.
  • Display: Avniox DP100 integrated 2-inch display.
  • Button: Avinox BC100 Wireless control left&right.
  • Charger: Avinox 4A charger.
  • Cables: Avinox customised Waterproof and foolproof wiring.
  • Brakes: Sram Rival AXS HRD Shift-Brake System
  • Discs: Sram HS2 extreme duty disc, front 160mm, rear 160mm
  • Rear derailleur: Sram Rival XPLR AXS Rear Derailleur with power cable
  • Cassette: Sram Rival XPLR XG-1351 13-speed Cassette
  • Cranks: Avinox SL 165mm
  • Chain: Sram Rival Transmission Flattop Chain
  • Spider: Avinox 104BCD spider
  • Chainwheel: Velduro customized alloy 44T, 3mm inward
  • Front hub: Velduro 2-bearings, BLK, 6-bolts, 13G*24H, 12x100mm
  • Rear hub: Velduro 4-bearings, BLK, 6-bolts, 13G*24H, 12x142mm, XDR freehub
  • Rims: 700C, Velduro Carbon, UD black, 13G*24H, 24mm inner width, 35mm depth, with hook
  • Tires: Maxxis Rambler 700*45C BLK, with tube

* Your Phantom is tubeless-ready, but comes with a tube.

Phantom Features

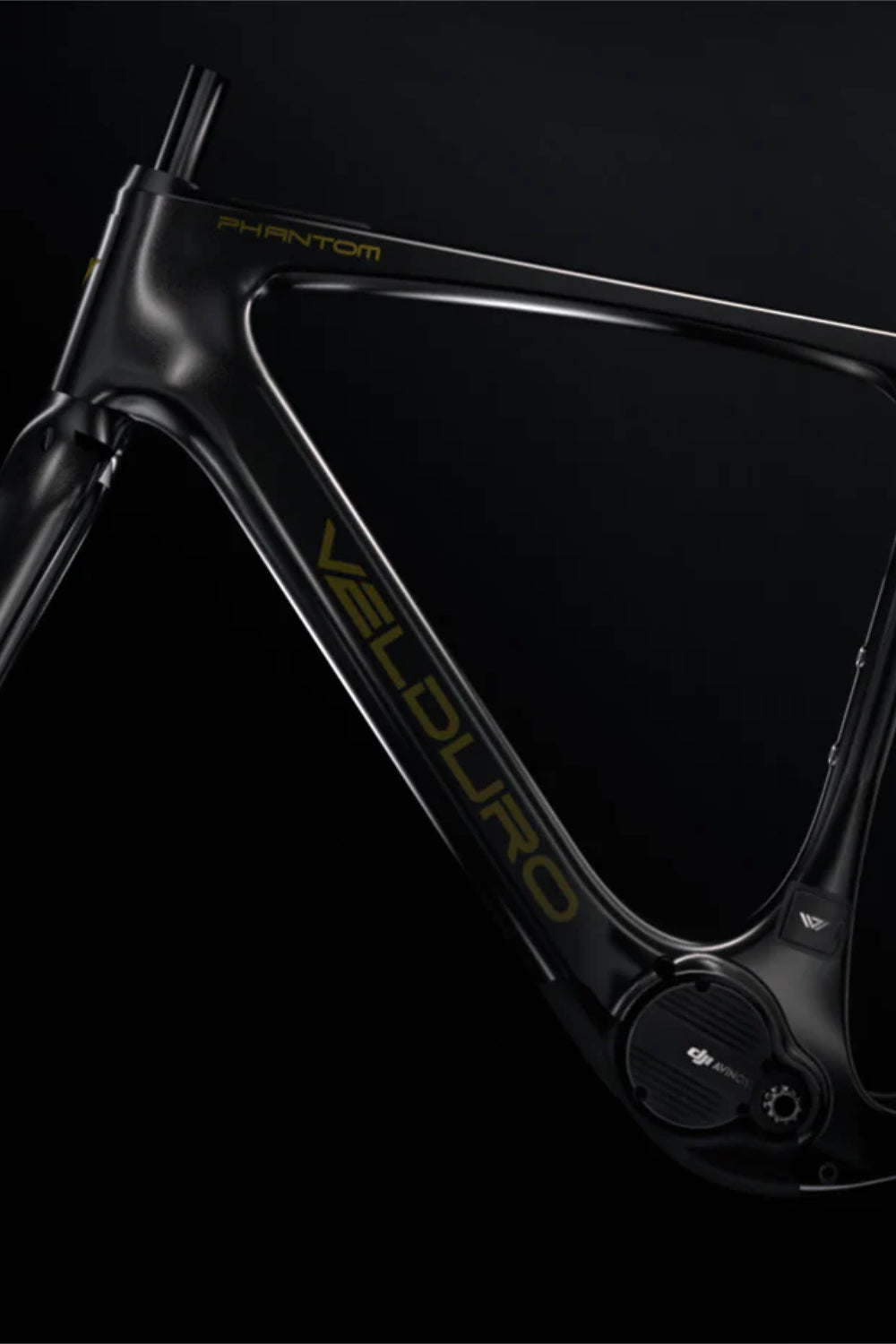

  • Full Carbon Monocoque Frame

    Award-winning ultra-lightweight carbon monocoque frame.

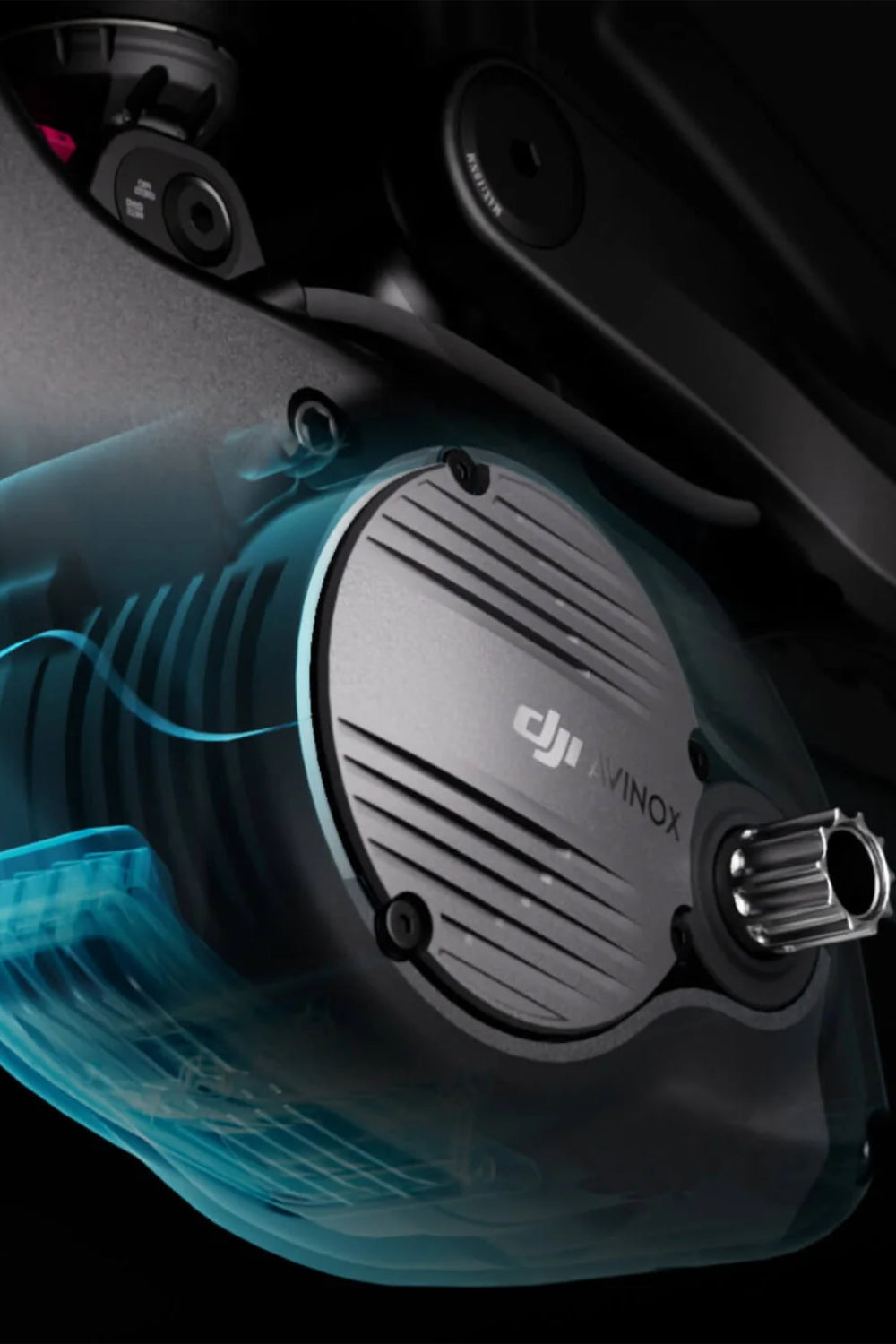

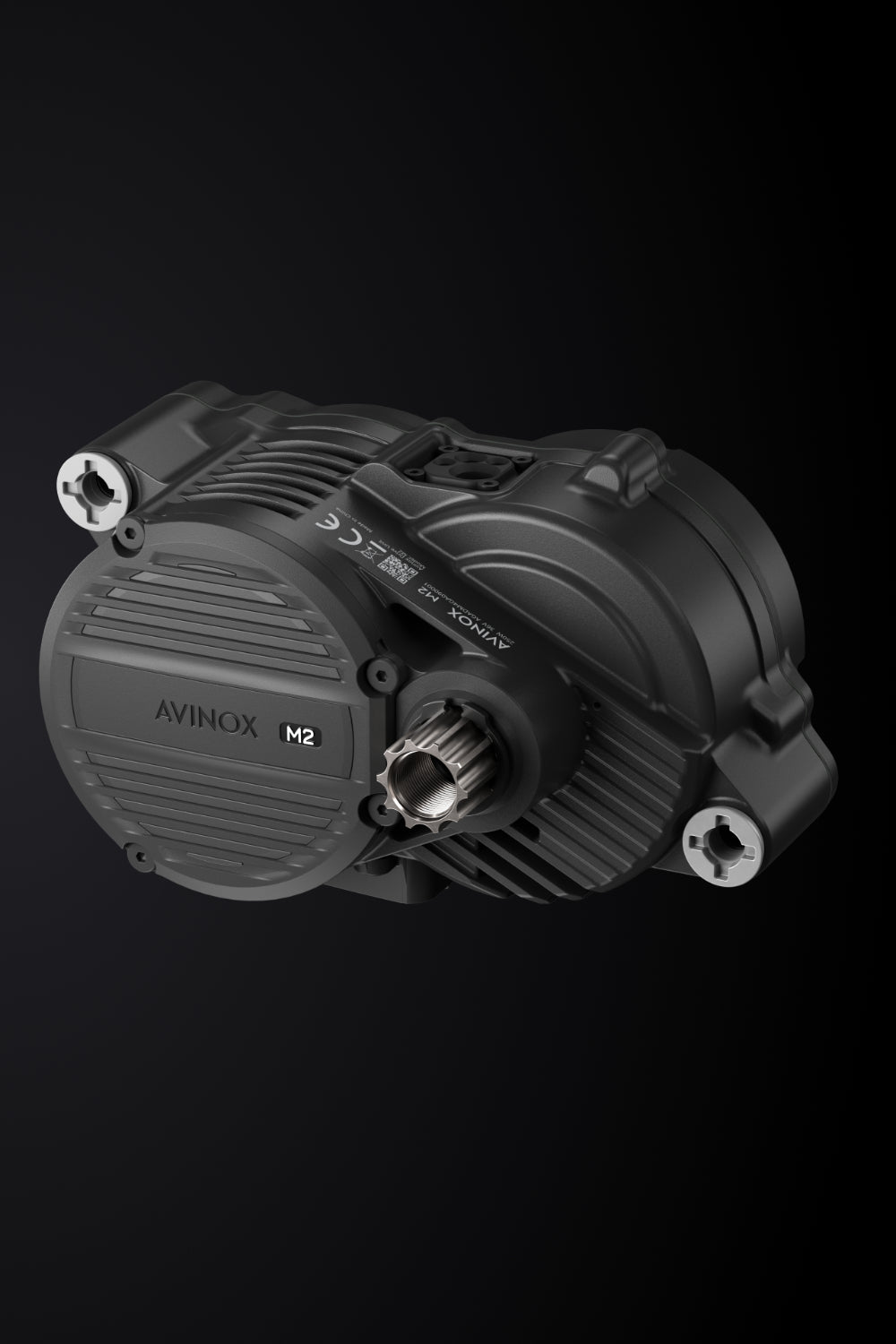

  • Avinox High Torque Motor

    The Phantom is powered by the market-leading Avinox M2 lightweight drive system with up to 1100W / 125Nm torque in boost and 110Nm of continuous torque.

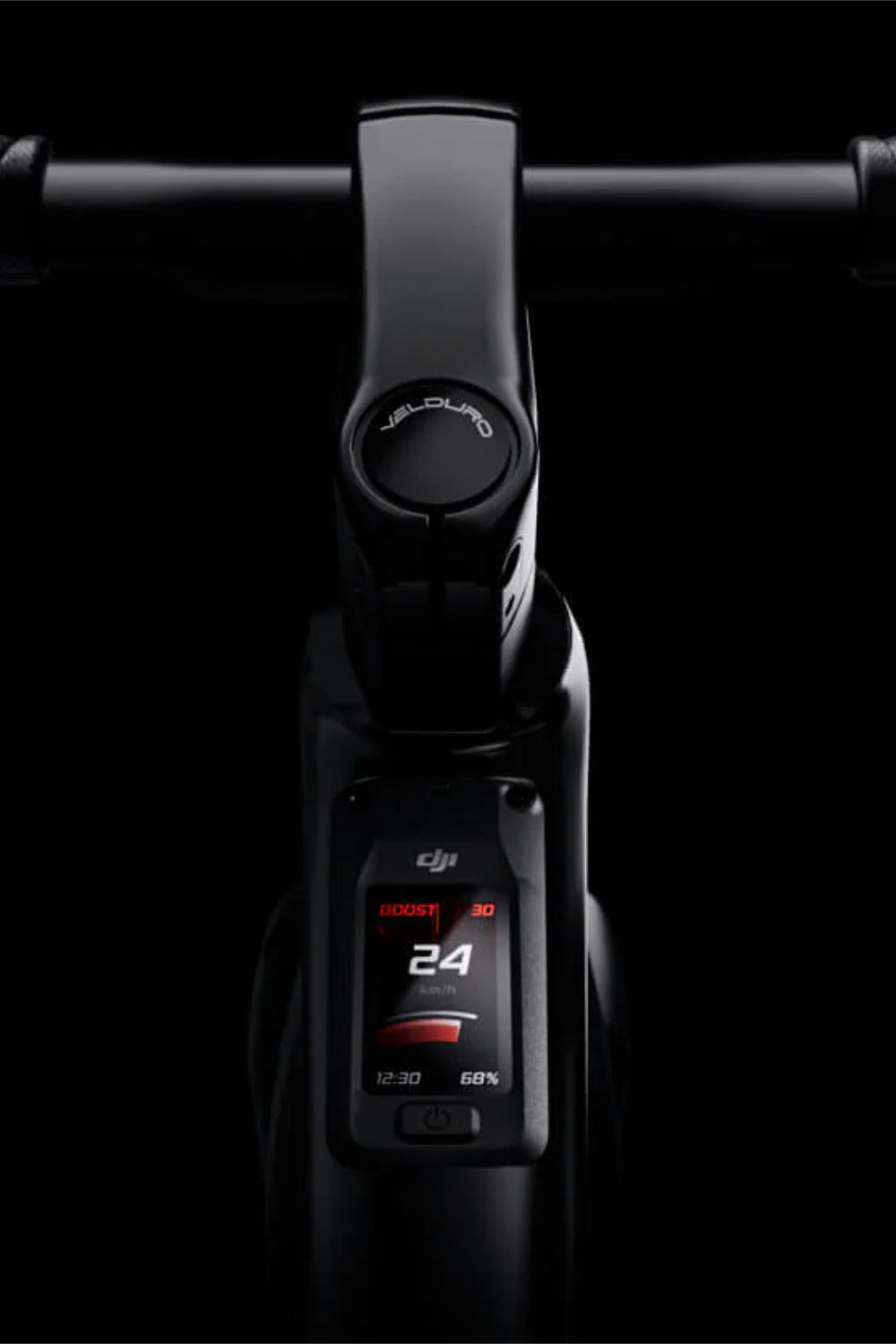

  • Multi-function Customizable OLED Touch Screen

    Connectivity between motor and mobile.

Phantom Geometry

S M L XL
A Seattube Length (mm) 466 486 506 526
B Top Tube Horizontal (mm) 520 534 551 565
C Toptube Length (mm) 495 515 534 548
D Head Tube Angle (°) 70 70,5 71 71
E Seattube Angle (°) 74,4 74,1 73,6 73,6
F Standover (mm) 772 785 815 830
G Head Tube Length (mm) 135 147 159 179
H Wheelbase (mm) 1015 1019 1030 1040
I Front Center (mm) 600 605 606 620
J Chain Stay Length (mm) 425 425 430 430
K Bottom Bracket Drop (mm) 72,5 72,5 72,5 72,5
L Bottom Bracket Height (mm) 283 283 283 283
M Fork Rake (mm) 50 50 50 50
N Trail (mm) 64 63 63 63
O Stack (mm) 554 567 581 600
P Reach (mm) 366 372 377 385
Q Axle to Crown (mm) 395 395 395 395
Recommended height (cm) 160-170 172-182 180-188 185-195
