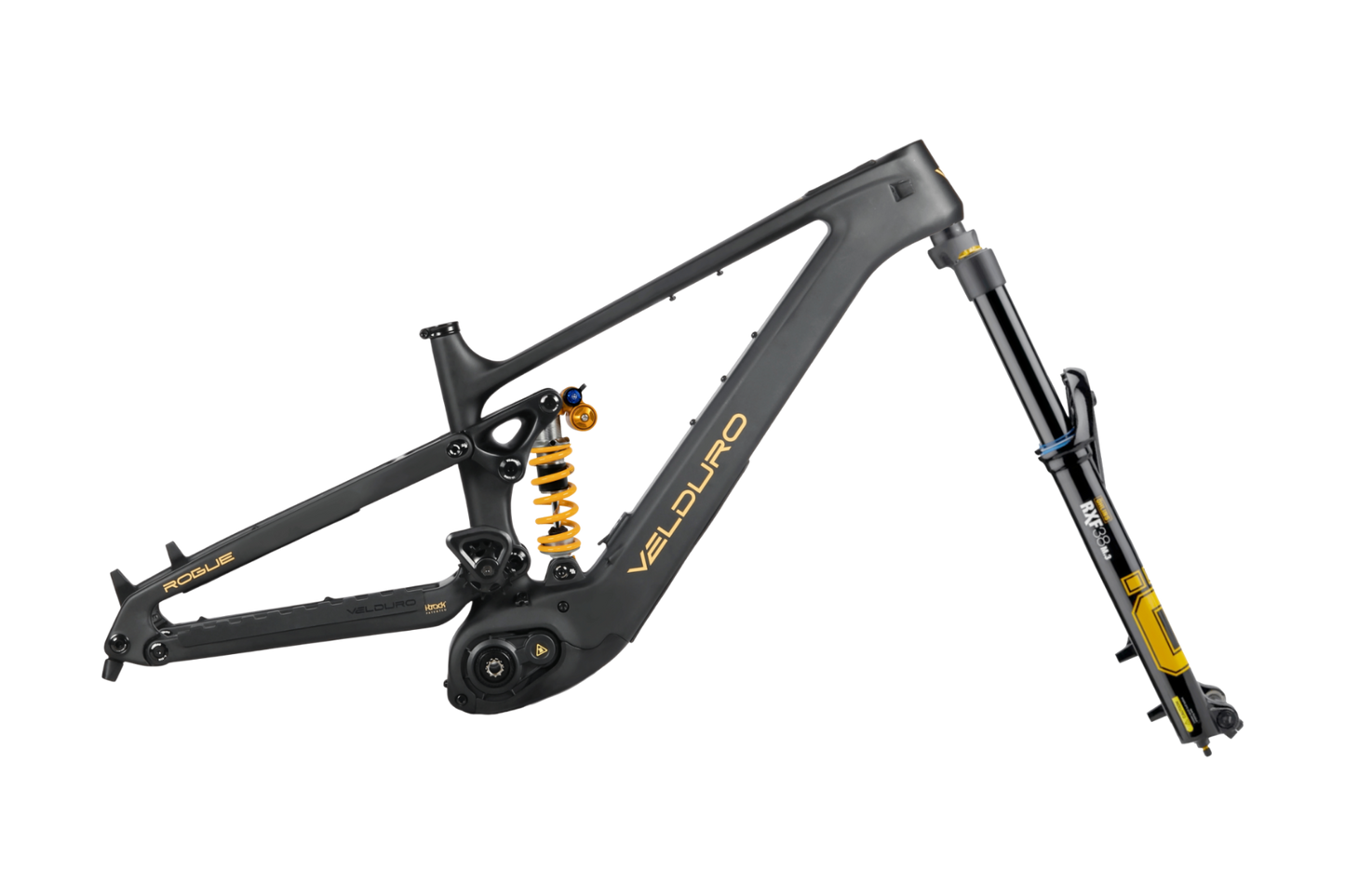

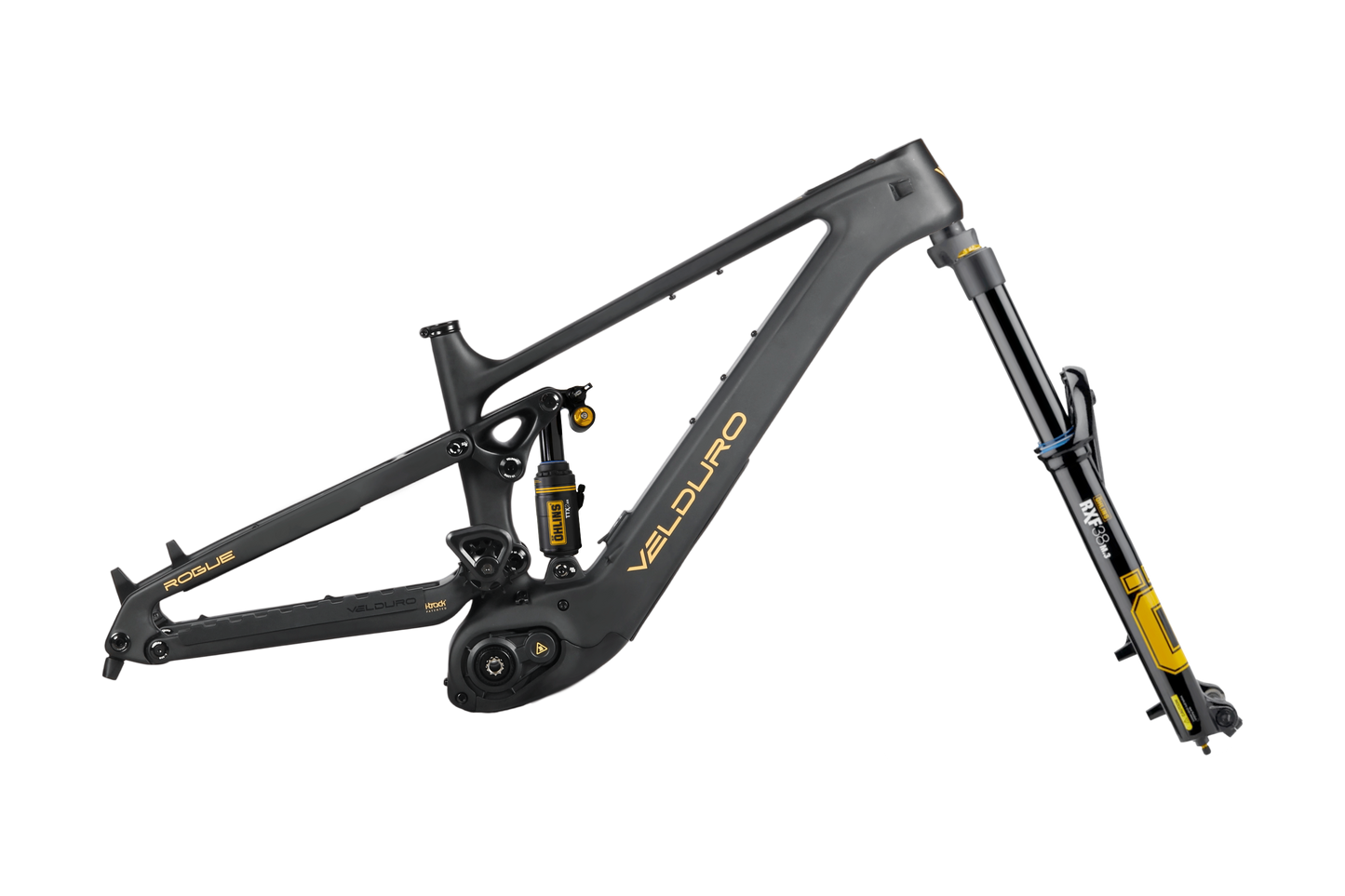

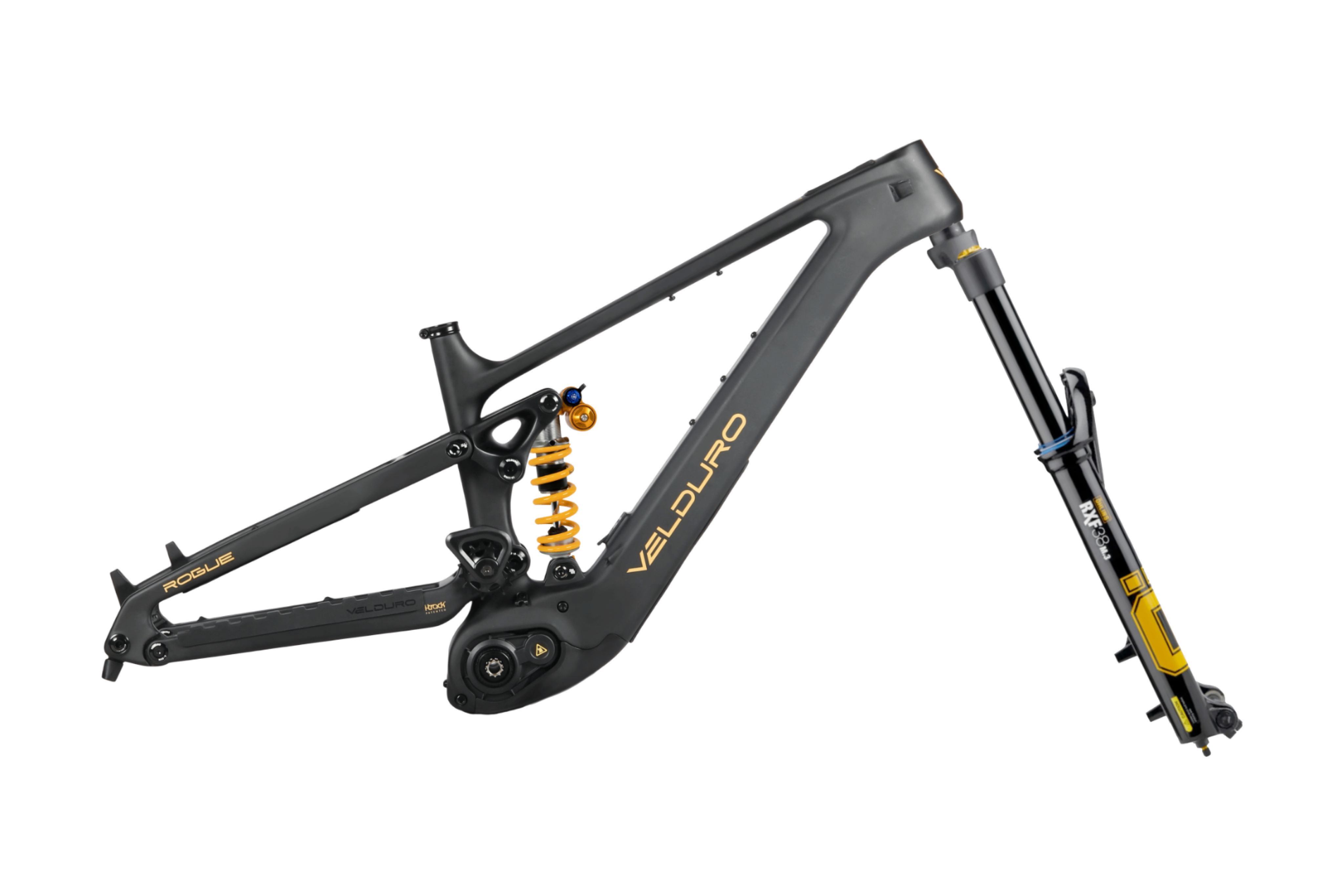

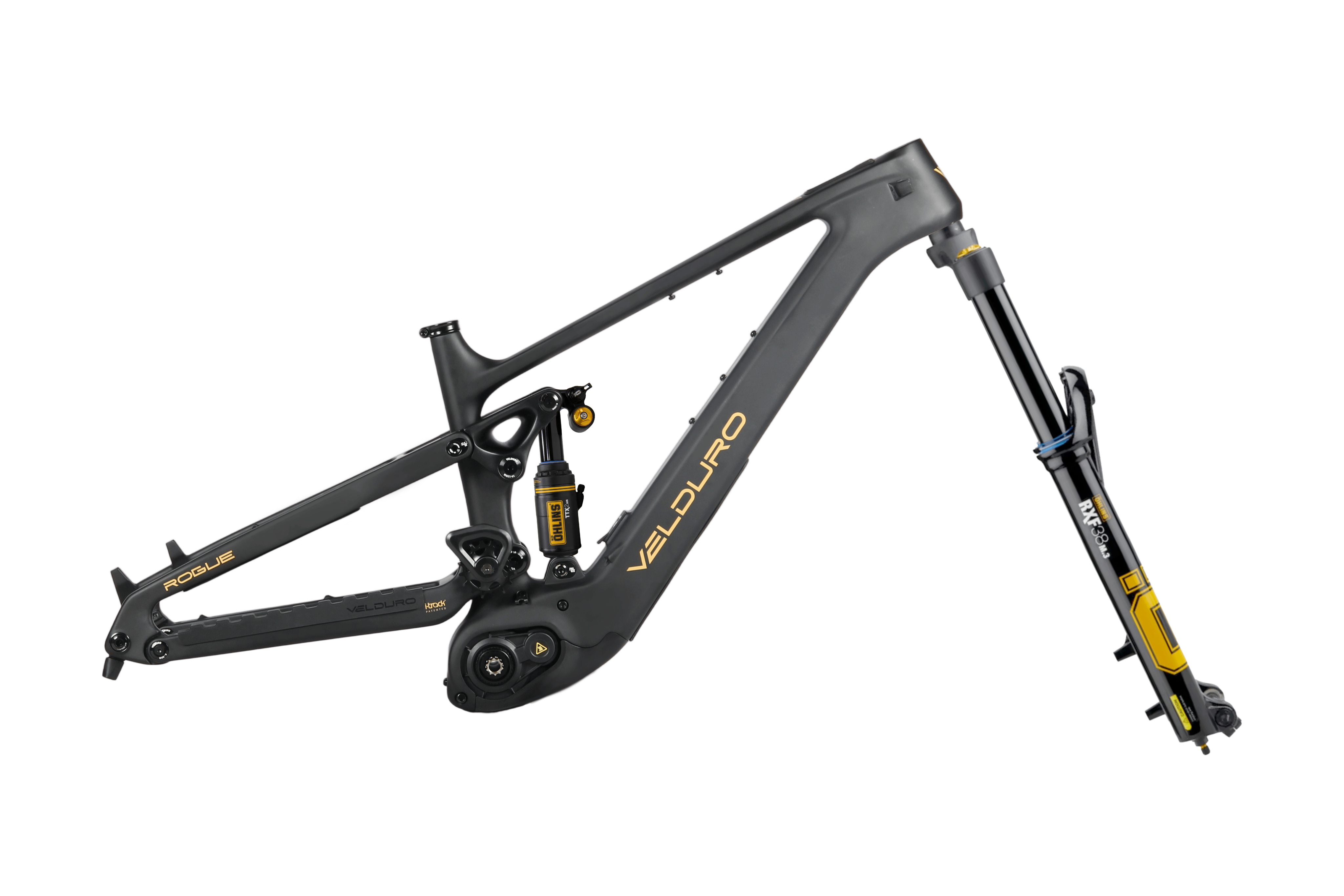

Rogue Frame Only Öhlins Edition

Build your dream Avinox powered EMTB with Velduro. The Rogue's modular frame has been designed to adapt to your needs and riding style with the easiest of adjustments. Adjust the travel, tweak the geo or switch wheel sizes (29er or mixed) and customise your ride to create your Ultimate Dream Build. In Standard Mode (170mm fork / 165mm rear), it's a trail-taming weapon. Switch to All-Mountain Mode (160mm front/rear) for flowy, high speed precision, or unleash Full Enduro Mode (180mm front / 170mm rear) to conquer anything you can throw at it.

At its core is the customisable DJI Avinox drive system, delivering smooth, intuitive power through an integrated 800Wh battery, giving you the freedom to ride harder and further than ever.

Expected delivery: July 2026
Price
€6.999,00 EUR
€6.999,00 EUR
Size
Front suspension
Rear suspension
I-Track's Patented Suspension System
Carbon Fibre Monocoque Frame
Shock Flip Chip: unlock 5mm extra travel
Mullet or full 29" compatible
Warranty: Frame 5-Years | Avinox Drive System 2-Years

Specifications

  • Frame: Carbon fiber, enduro catagery
  • Mid-pivot suspension, rear travel 165mm up to 172mm with 29inch rear wheel, rear wheel flip chip, shock clip chip.
  • Boost 12x148mm thru axle
  • Headset: FSA No.57 Alloy MTB, ZS44/56
  • Motor: Avinox M2S 36V 1300W / 130Nm, boost 150Nm
  • Battery: Avinox 800Wh integrated
  • Display: Avniox DP100 integrated 2-inch display
  • Button: Avinox BC100 Wireless control left & right
  • Charger: Avinox 4A charger
  • Cables: Avinox customised Waterproof and foolproof wiring
  • Associates: UDH Hanger, Seat post clamp, Cable lugs
  • Avinox Cranks - SL 155mm
  • Avinox 104 BCD Spider, velduro 34T Chainwheel

Rogue Features

  • Avinox High Torque Motor

    The Rogue is powered by the market-leading Avinox M2S lightweight drive system with up to 1300W of power and 130Nm of continuous torque (150Nm in boost).

  • i-Track Suspension For Precision Engineered Performance

    Control in all conditions. Built with precision and durability you can rely on. By repositioning the rear axle path, Rogue's rear wheel tracks terrain, creating stability on chaotic descents.

  • 800Wh Fast Charging Battery

    Real-time tracking of speed, battery life and distance ensuring a smooth and informed ride with every journey!

  • Multi-function Customizable OLED Touch Screen

    The Avinox Drive System features a 2-inch OLED full-color Display as the interactive hub, enabling connectivity between the unit and the app.

  • 29/Mullet Flip Chip

    Switch between 27.5" agility and 29" roll-over dominance in minutes.

  • Shock Progression Flip Chip: Two Bikes in One

    Flick the AM/Enduro chip at the shock mount and the Rogue morphs. Unlock 5mm to get up to 172mm max travel.

Rogue Geometry

S M L XL
A Eff. Seattube Length (mm) 390 410 430 465
B Headtube Angle (°) 63,5 63,5 63,5 63,5
C Eff. Toptube Length (mm) 582 604 623 647,5
D Reach (mm) 440 466 485 515
E Act. Seattube Angle (°) 75,5 75,5 75,5 75,5
F Seattube Offset (mm) 30 30 30 30
G Eff. Seattube Angle (°) 78 78 78 78
H Chainstay Length (mm) 440 440440440
I BB Drop at Rear Wheel (mm) 10,5 10,5 10 10
J BB Drop at Front Wheel (mm) 34 34 34 34
K Headtube Length (mm) 110 110 120 125
L Axle to Crown (mm) 584 584 584 584
M Fork Offset (mm) 44 44 44 44
N Trail (mm) 140 140 140 140
O Stack (mm) 634 634 643,5 648
P Wheelbase (mm) 1229 1255 1276 1311
Q BB Height (mm) 343,5 343,5 344 344
Recommended height (cm) 160-172 172-182 180-188 185-195
