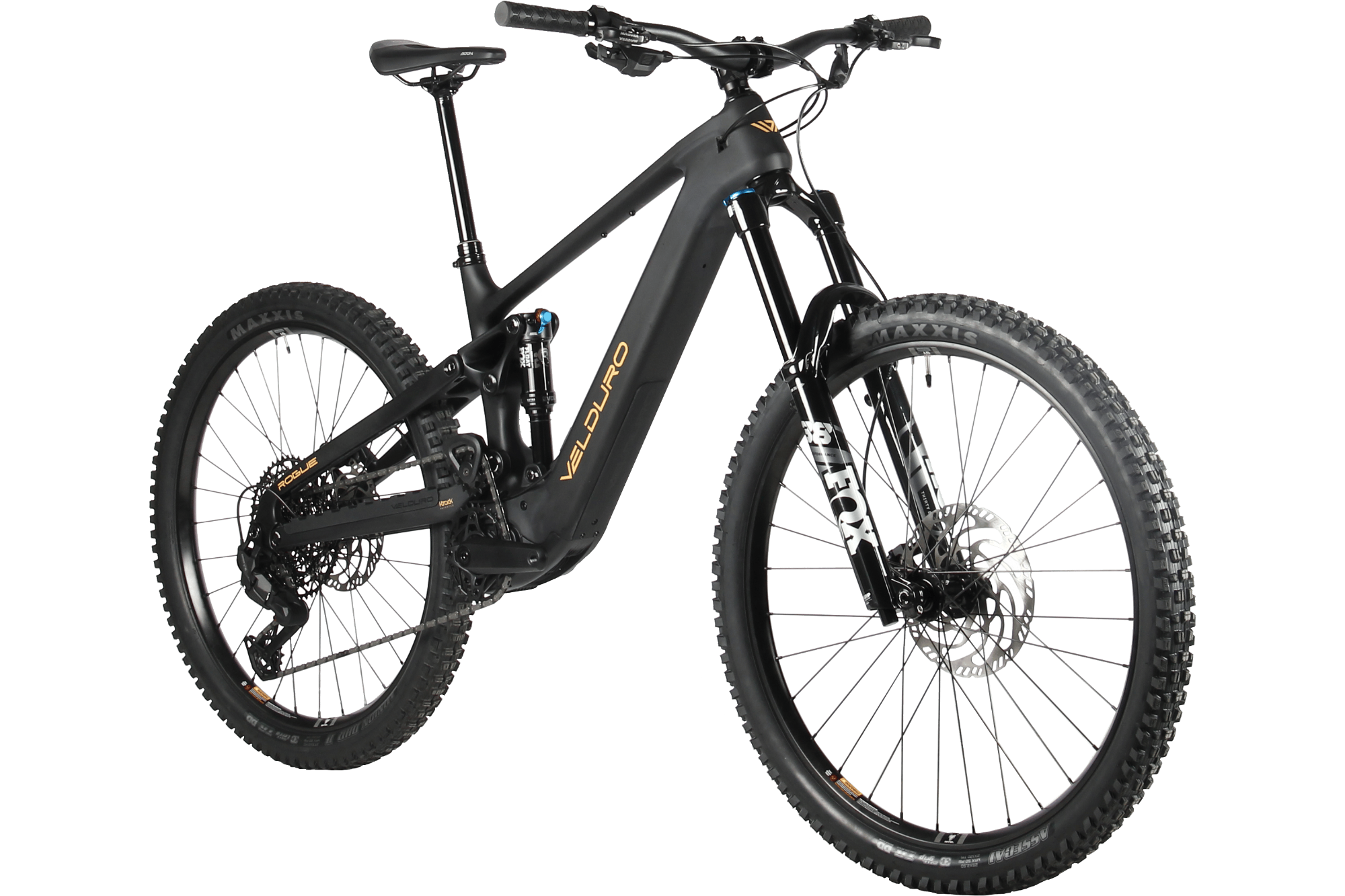

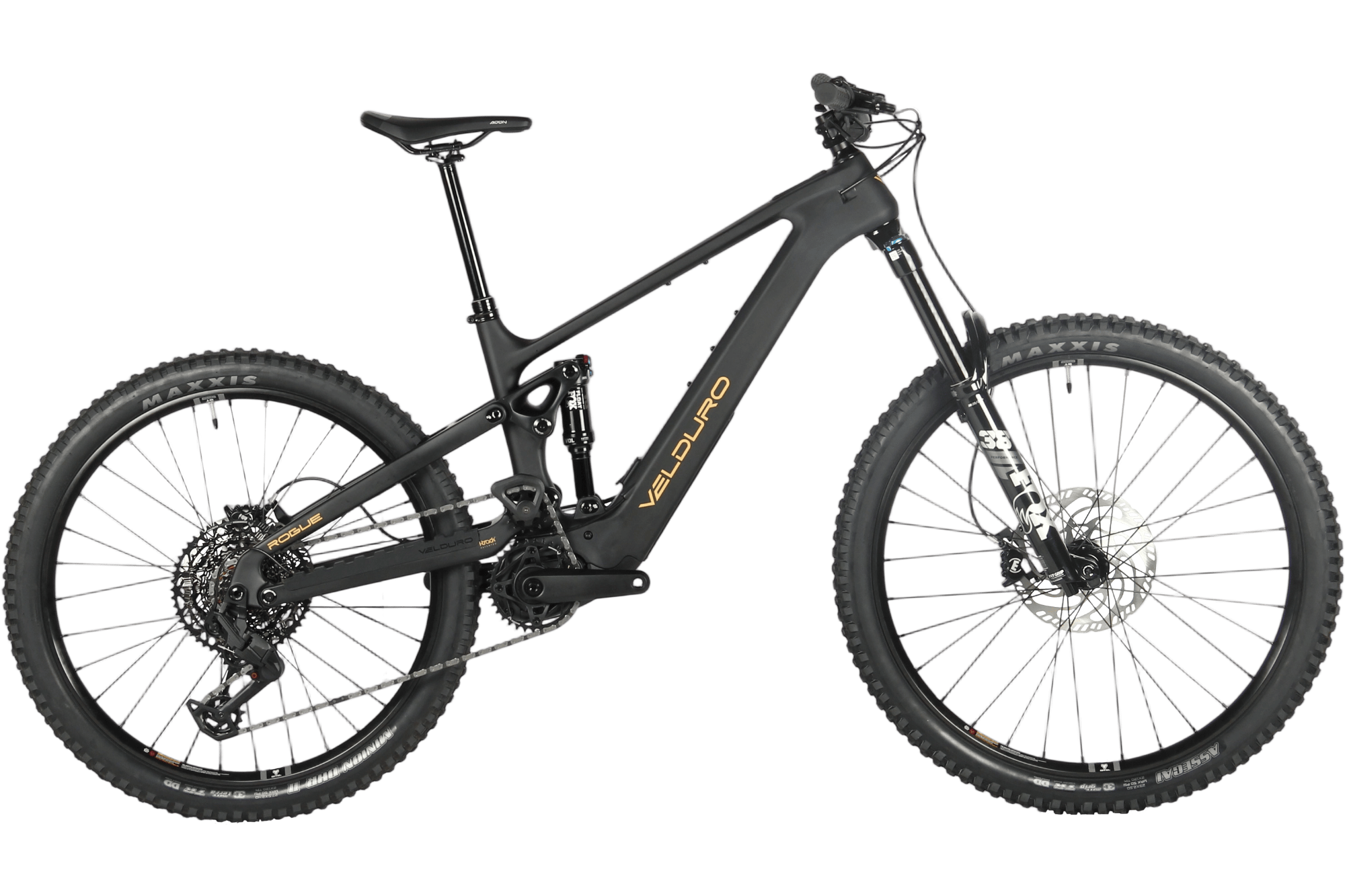

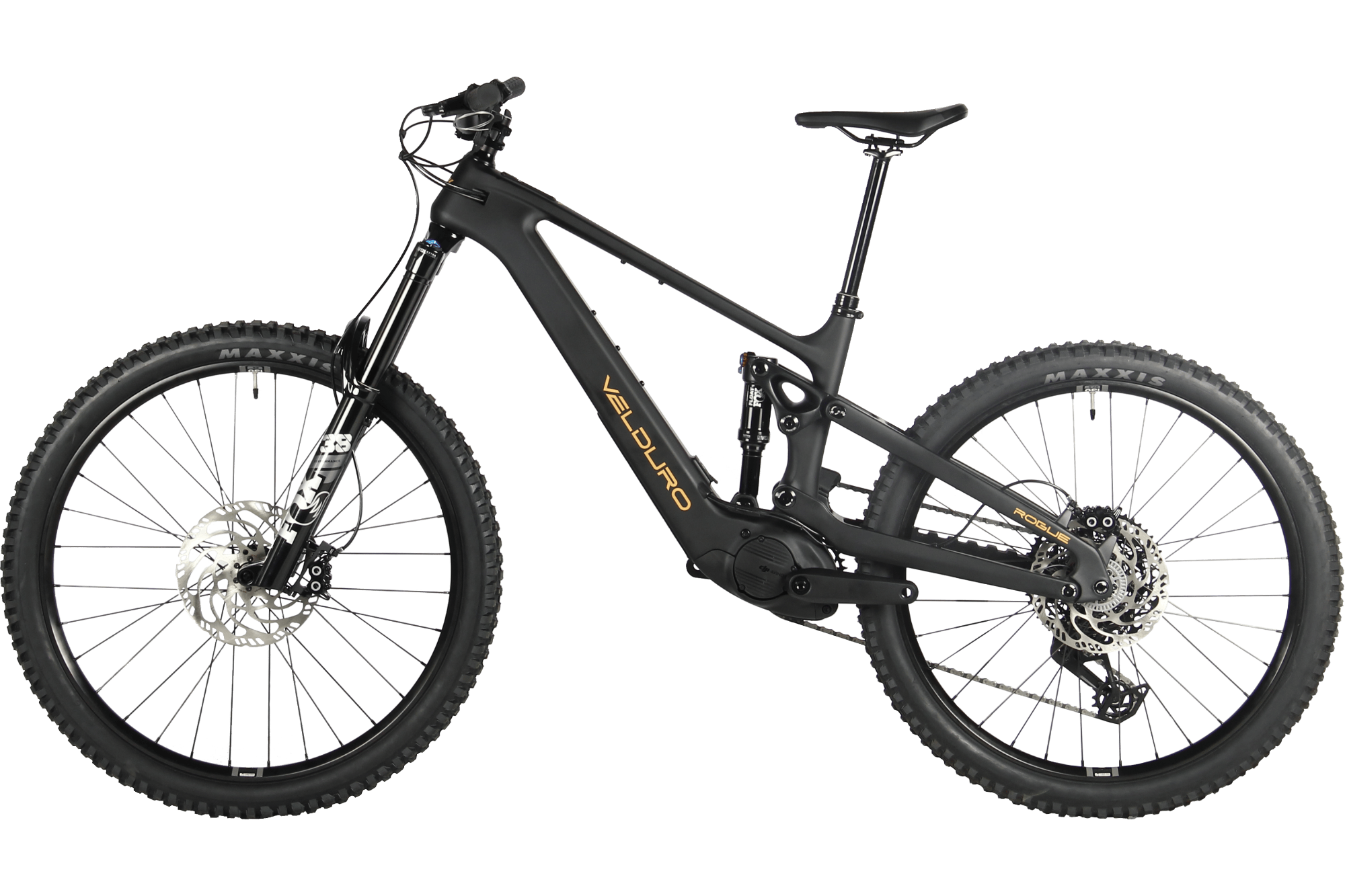

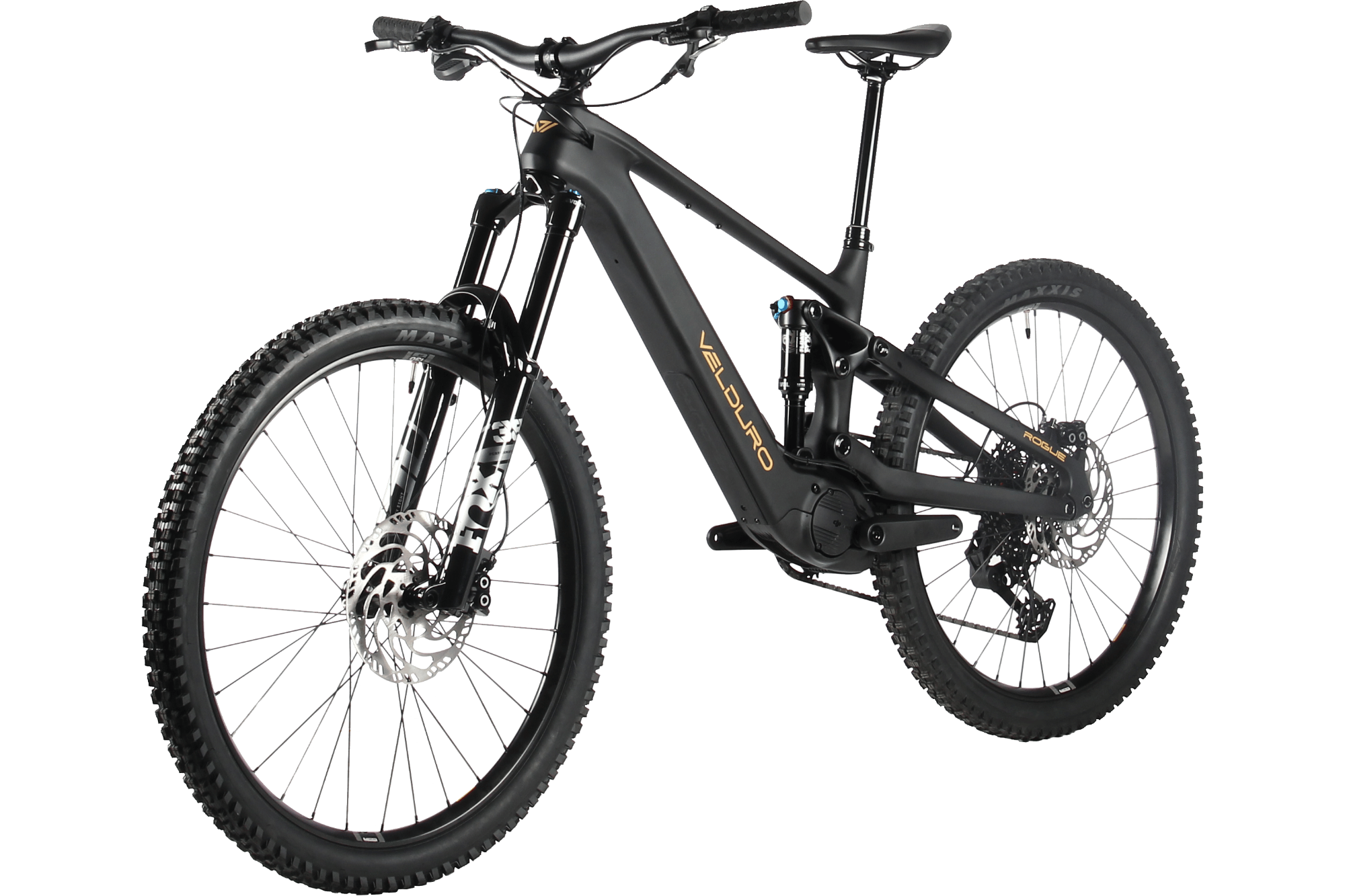

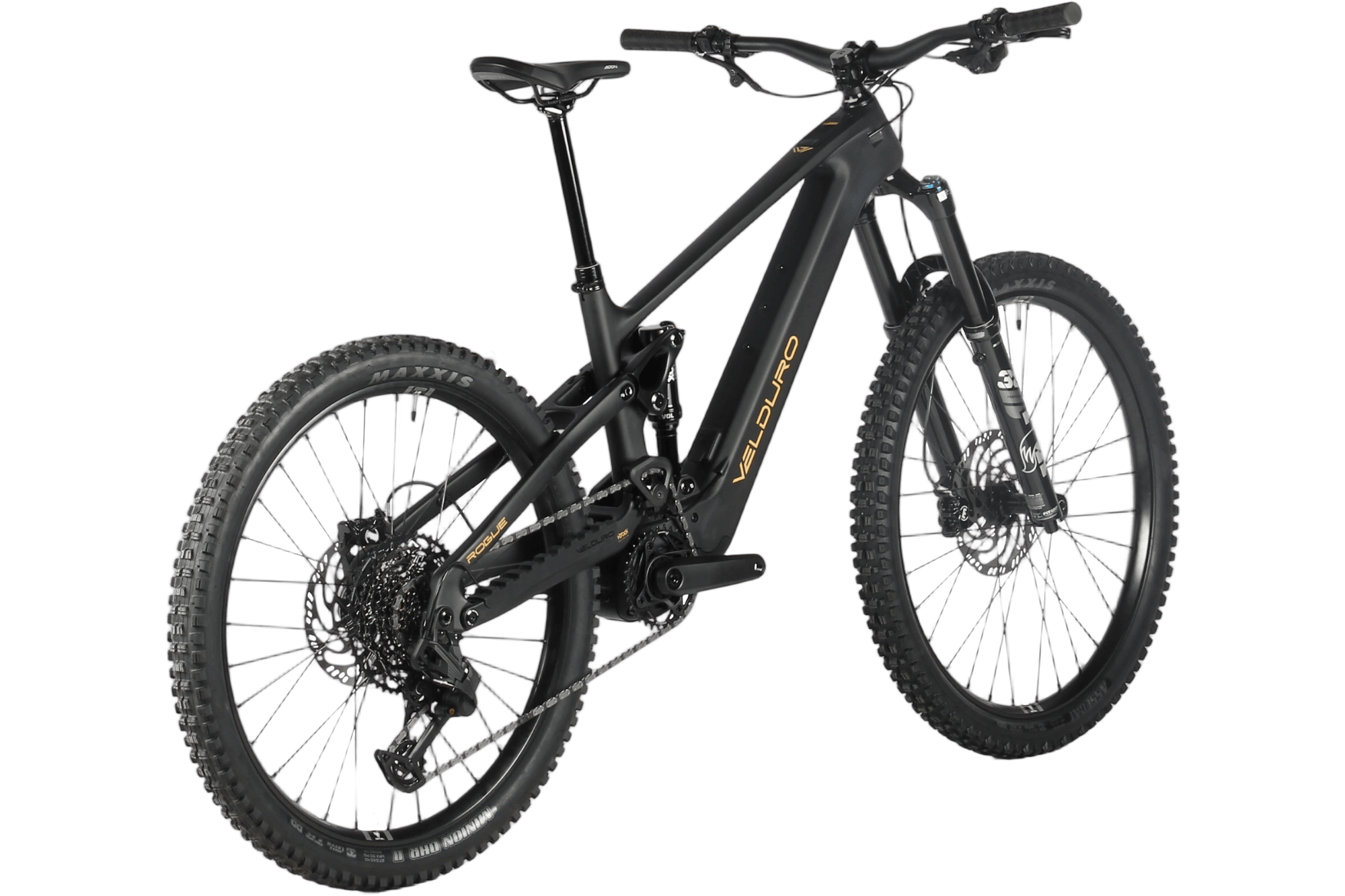

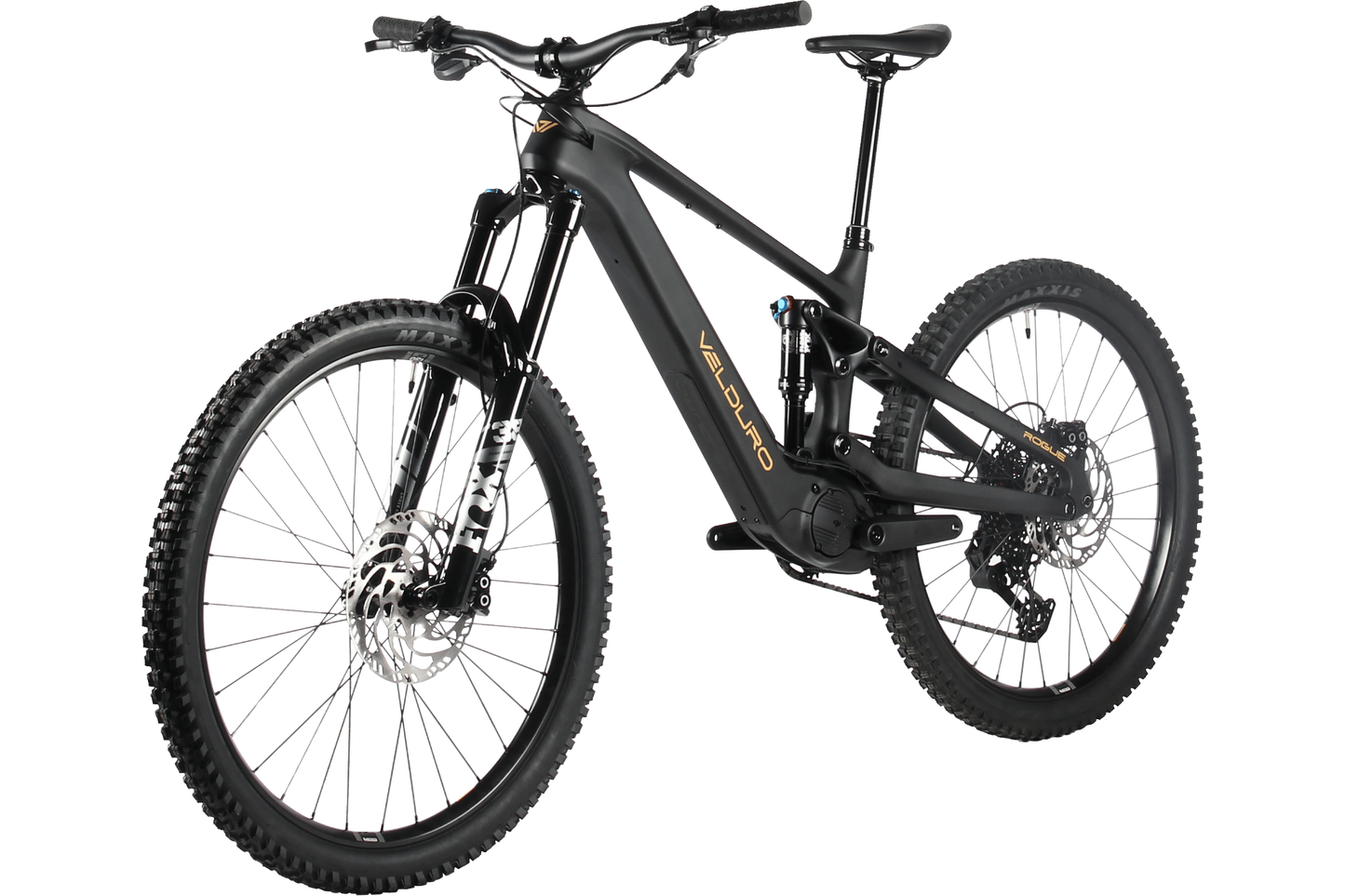

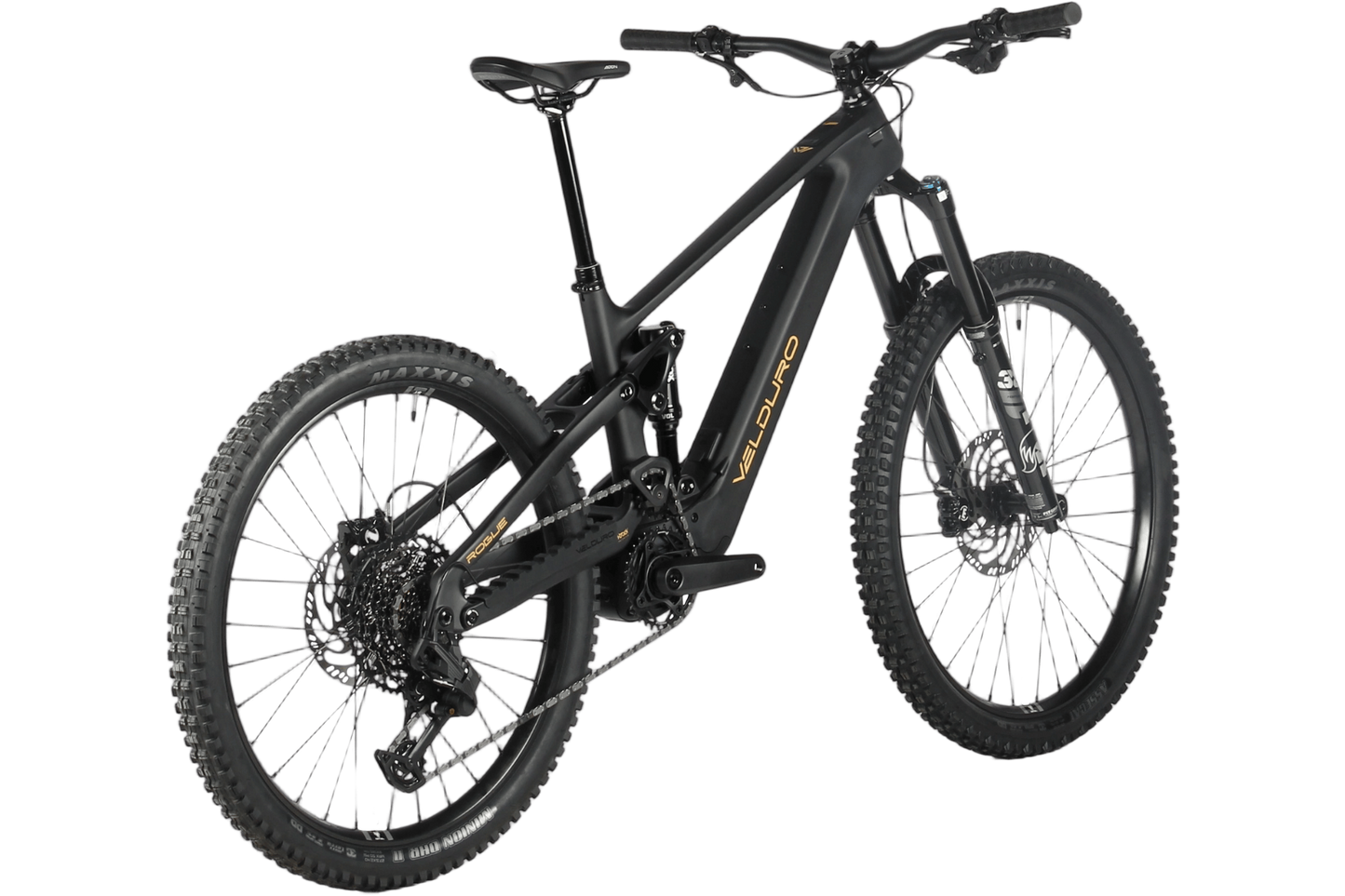

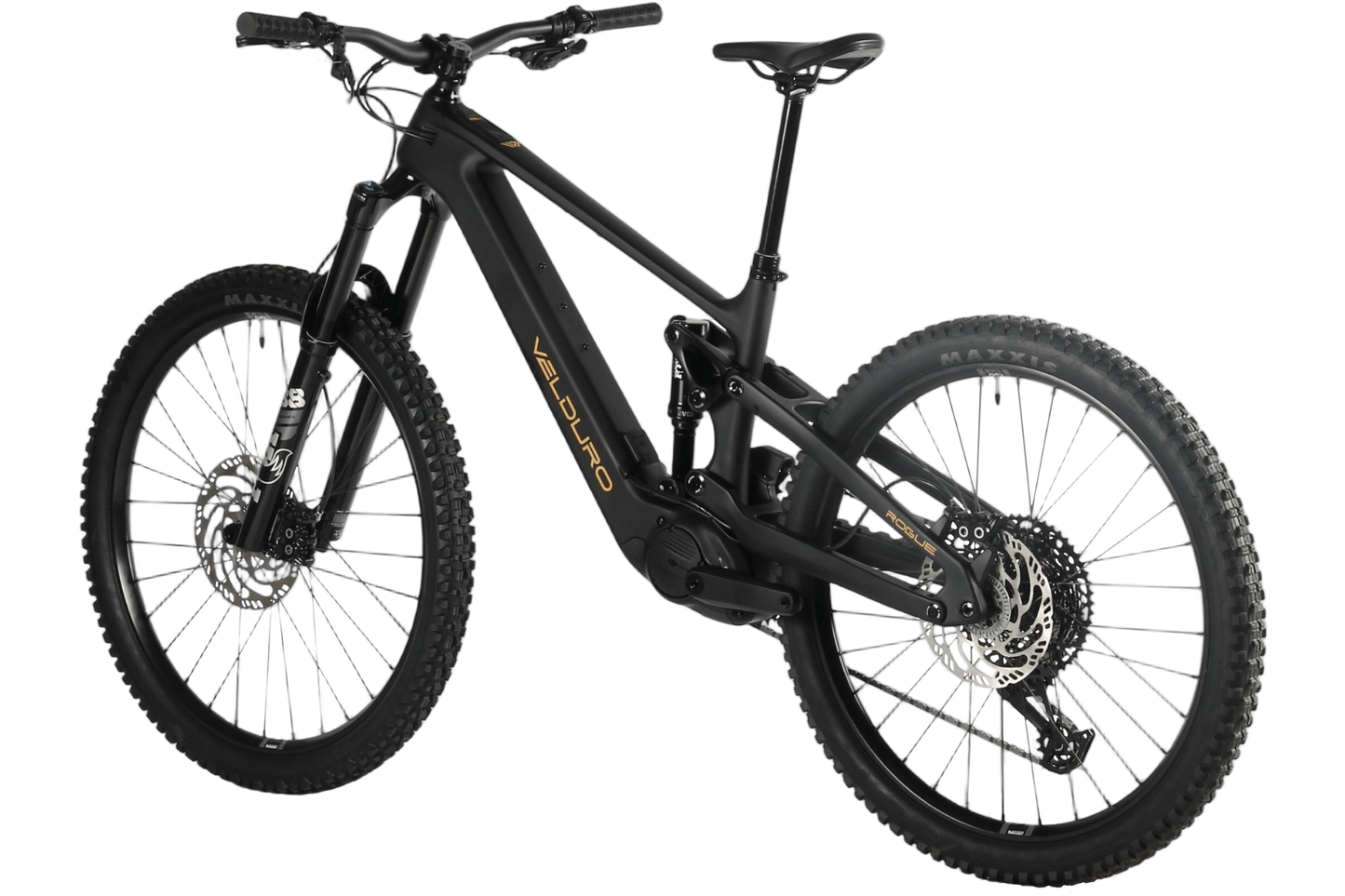

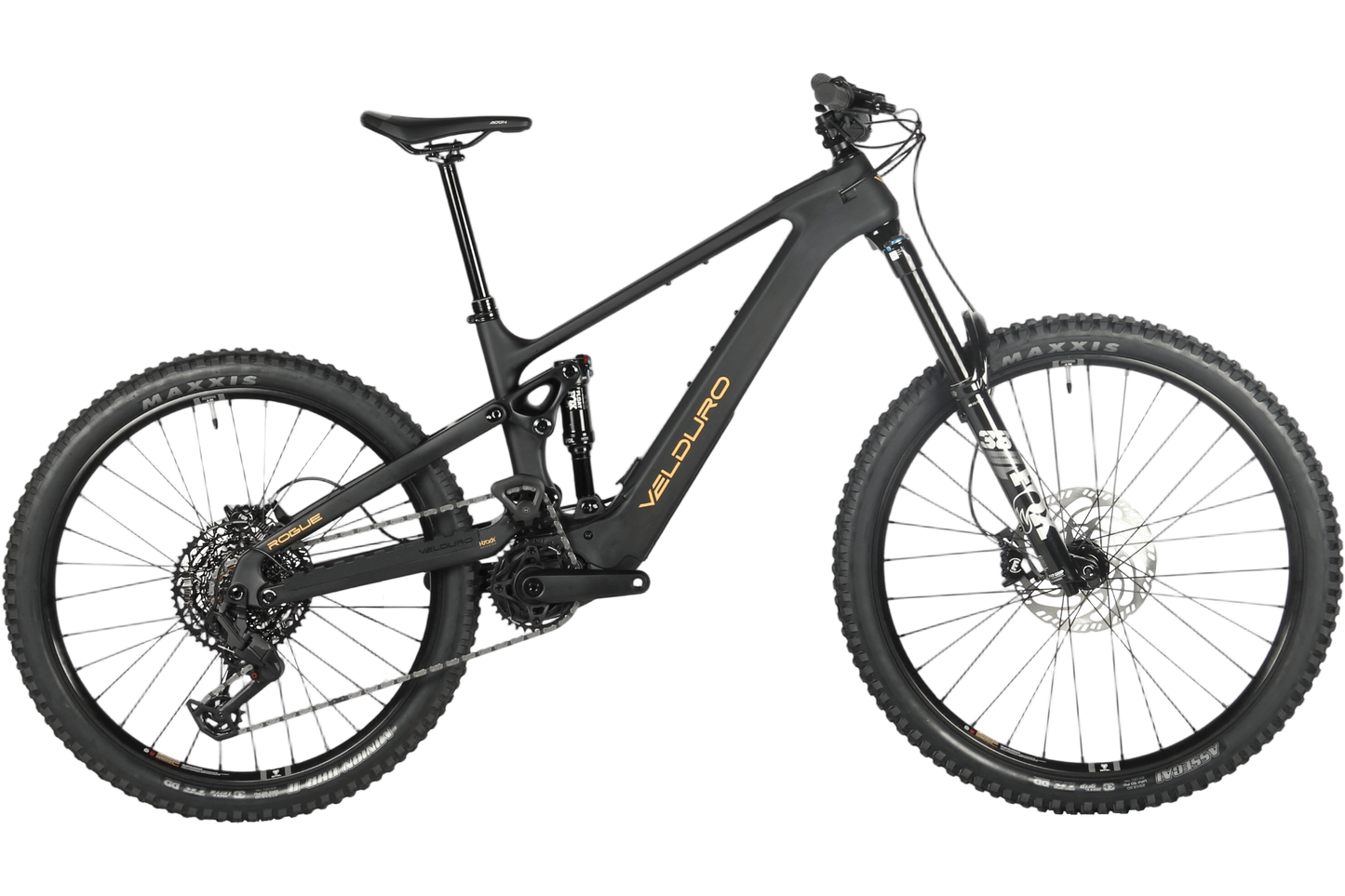

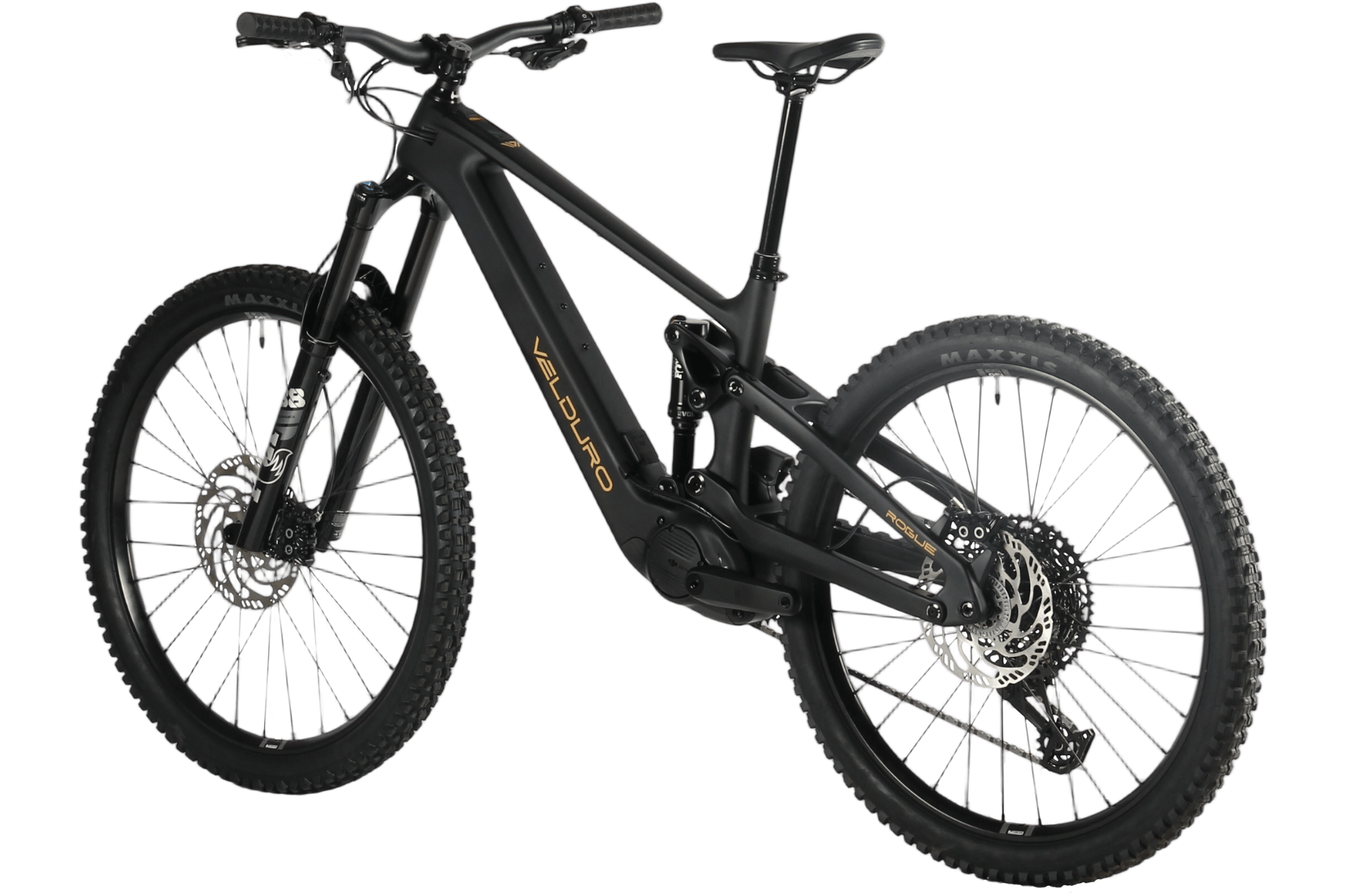

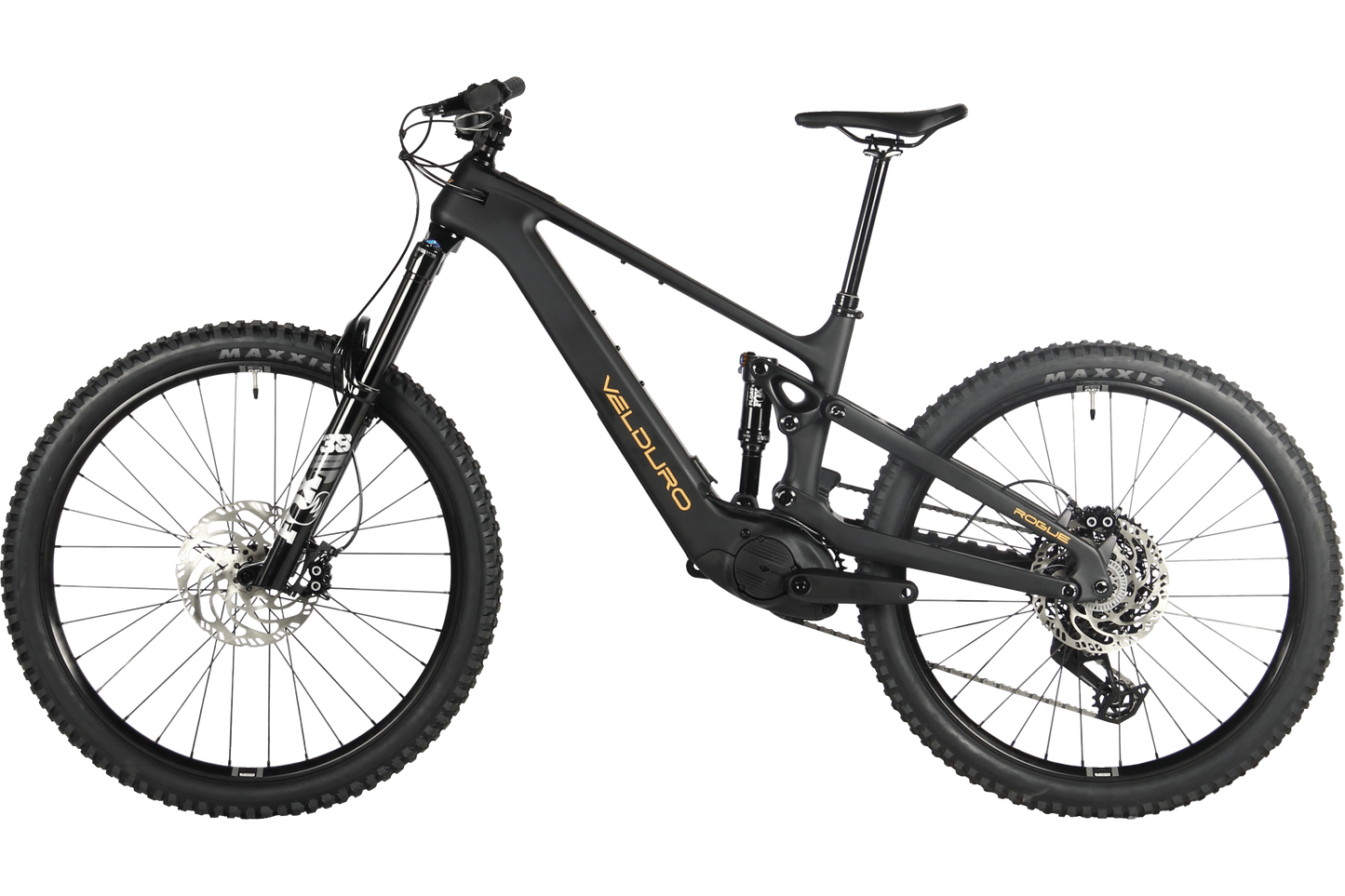

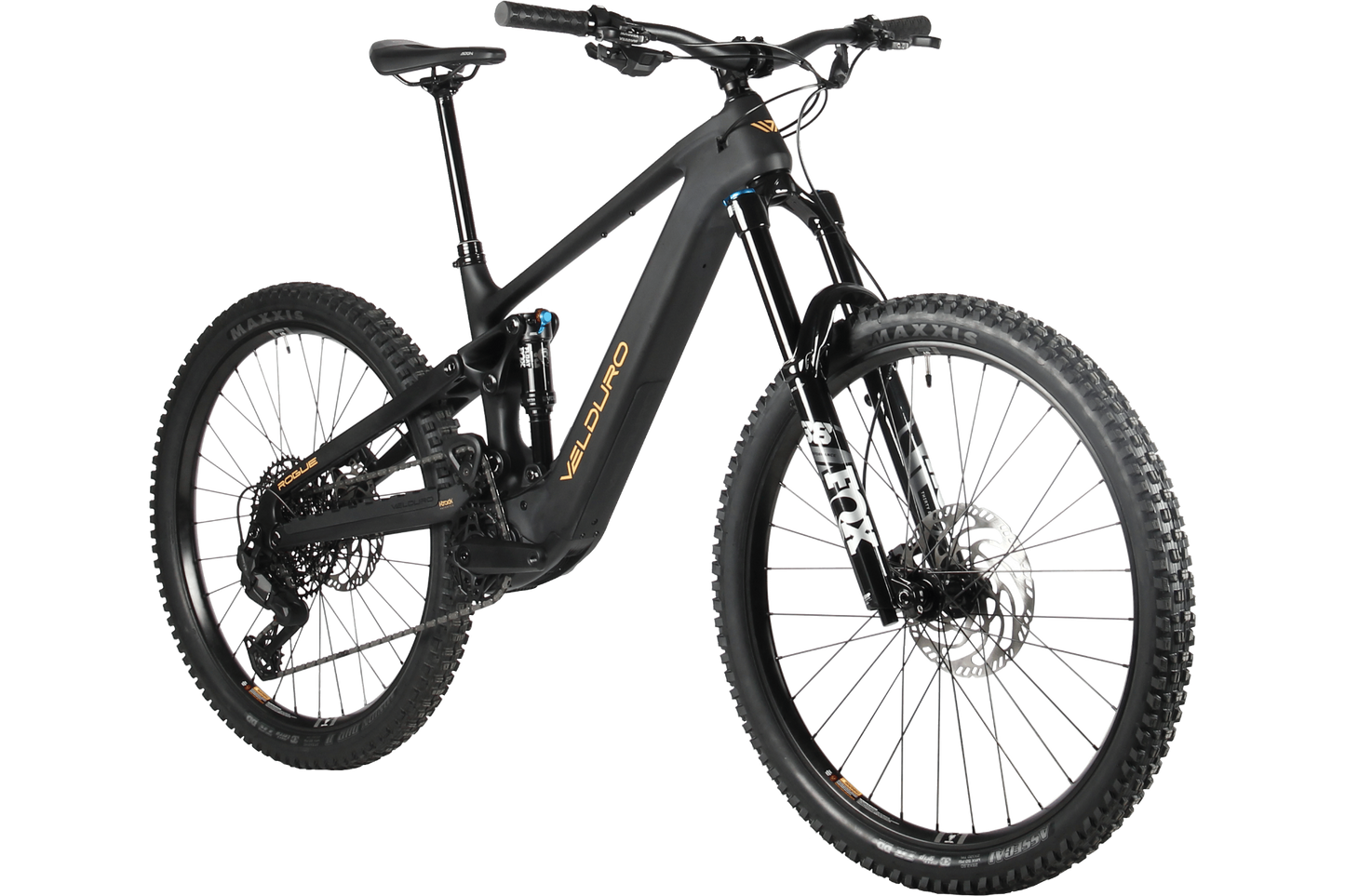

Rogue X

The Rogue X is an affordable e-enduro with no compromises. It shares the same electrical components and frame as the Rogue R, paired with the same race-grade FOX 38 and Float suspension and high-strength SRAM Eagle 70 transmission drivetrain. Magura MT5 brakes deliver superior braking power, making it an excellent choice for both climbing and downhill.

Expected delivery: July 2026
Price
€6.999,00 EUR
€6.999,00 EUR
Size
I-Track's Patented Suspension System
Carbon Fibre Monocoque Frame
Warranty: Frame 5-Years | Avinox Drive System 2-Years

Specifications

Carbon fibre enduro frame:

  • 165mm rear travel, up to 172mm,
  • mid-pivot
  • battery integrated
  • rear wheel flip chip
  • shock position flip chip
  • inner cable routing
  • Boost 12x148mm
  • 16T idler, with oversize bearings
  • Motor: DJI AVINOX M2S 1300W / 130Nm, boost 150Nm
  • Battery: 800 WH
  • Charger: AVINOX 36V 4A
  • Display: AVINOX DP100
  • Fox 38 P-S 2026, 29 inch, 170mm,Grip, 15X110mm
  • Fox float P-S 2026, 205X65mm (custom factory tuned for the Rogue)
  • Brakes: Magura MT5 HC,hydraulic brake, 4-Piston, heavy duty
  • Disc: Magura MDR-C heavy duty disc, front 220mm, rear 203mm
  • Pedal: Riders Choice
  • Shift lever: Sram eagle 70 shifter
  • Rear derailleur: Sram eagle 70 transmission mechanical
  • Crankset: Avinox SL crank 155mm
  • Cassette: Sram XS-1270 10-52T Eagle Transmission
  • Chain :Sram Eagle 70 Flat top Chain
  • Chainwheel: Sram 34T eagle Transmission E-MTB Chainring 104 BCD
  • Wheel set: Velduro e-Enduro Alloy, EA-30
  • Front Hub: Alloy, 2 sealed cartridge bearings, 15x110thru-axle, 32h, straight-pull, 6-bolt
  • Rear Hub: Alloy, 4 sealed cartridge bearings, 148x12thru-axle, 32h, straight-pull, 6-bolt, 21T
  • Spokes: Sapim e-light J-bend
  • Rim: Alloy,F 29’/R 27.5’, 30mm internal width
  • Front tire: Maxxis Assegai M356Ru 29*2.5 3C Grip/DD/TR BK
  • Rear tire: Maxxis Minion DHR2 M327 Ru27.5*2.4 3C Terra/DD/TR BK
  • Your Rogue is tubeless ready, but comes with tube.
  • Headset: FSA No.57 Alloy MTB, ZS44/56mm
  • Saddle: Fizik Terra Aidon X5.
  • Dropper: Velduro Enduro mechanical, Dia.31.6, Travel: S:170mm, M&L&XL: 200mml.
  • Handlebar: Velduro Enduro, Alloy, 35D 800L. rise 20.
  • Stem: Velduro Enduro, Alloy, 35D, 40mm long.
  • Grips: Velduro MTB grips, 22.4mm, one side ring, closed end.

Rogue Features

  • Avinox High Torque Motor

    The Rogue is powered by the market-leading Avinox M2S lightweight drive system with up to 1300W of power and 130Nm of continuous torque (150Nm in boost).

  • i-Track Suspension For Precision Engineered Performance

    Control in all conditions. Built with precision and durability you can rely on. By repositioning the rear axle path, Rogue's rear wheel tracks terrain, creating stability on chaotic descents.

  • 800Wh Fast Charging Battery

    Real-time tracking of speed, battery life and distance ensuring a smooth and informed ride with every journey!

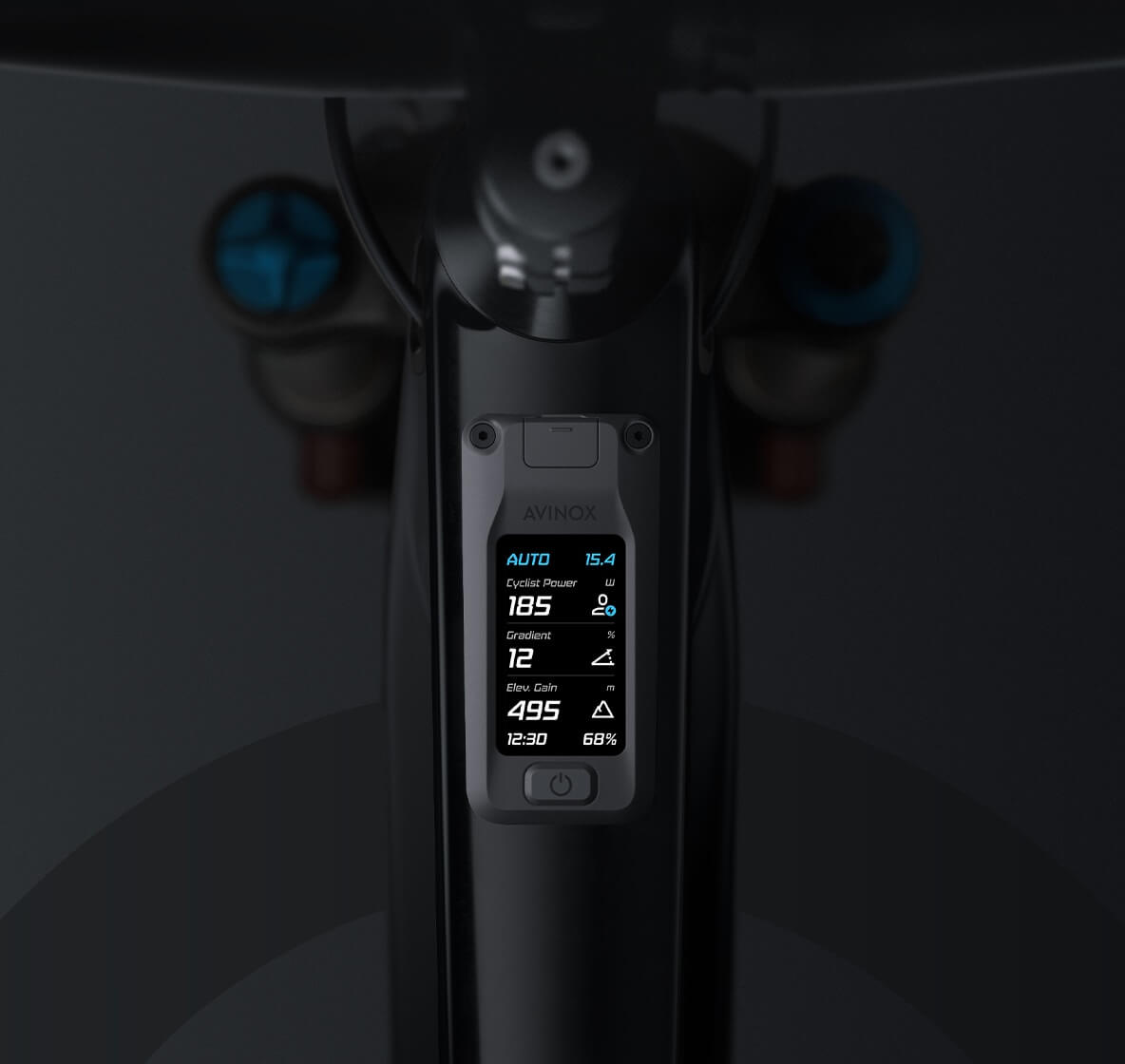

  • Multi-function Customizable OLED Touch Screen

    The Avinox Drive System features a 2-inch OLED full-color Display as the interactive hub, enabling connectivity between the unit and the app.

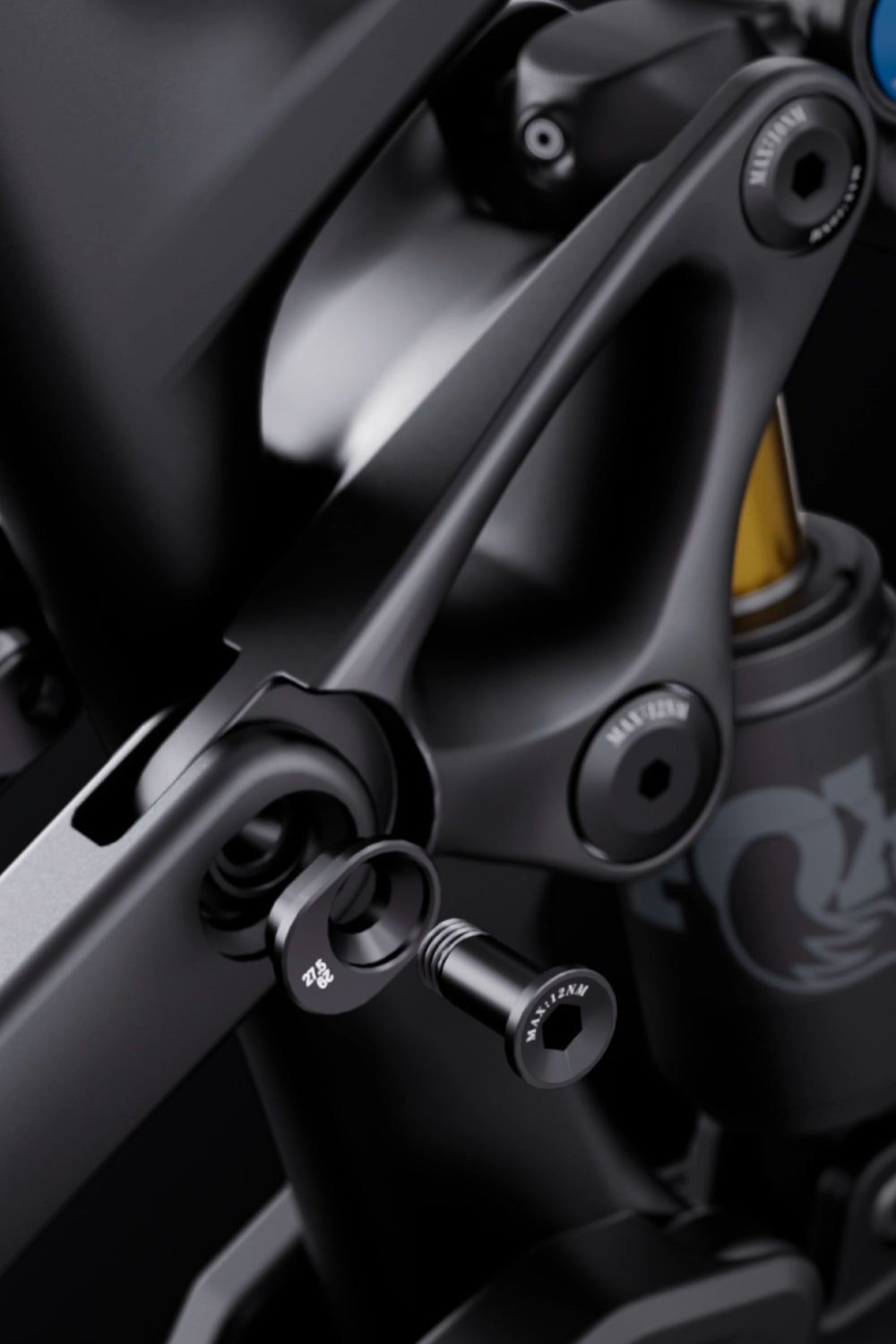

  • 29/Mullet Flip Chip

    Switch between 27.5" agility and 29" roll-over dominance in minutes.

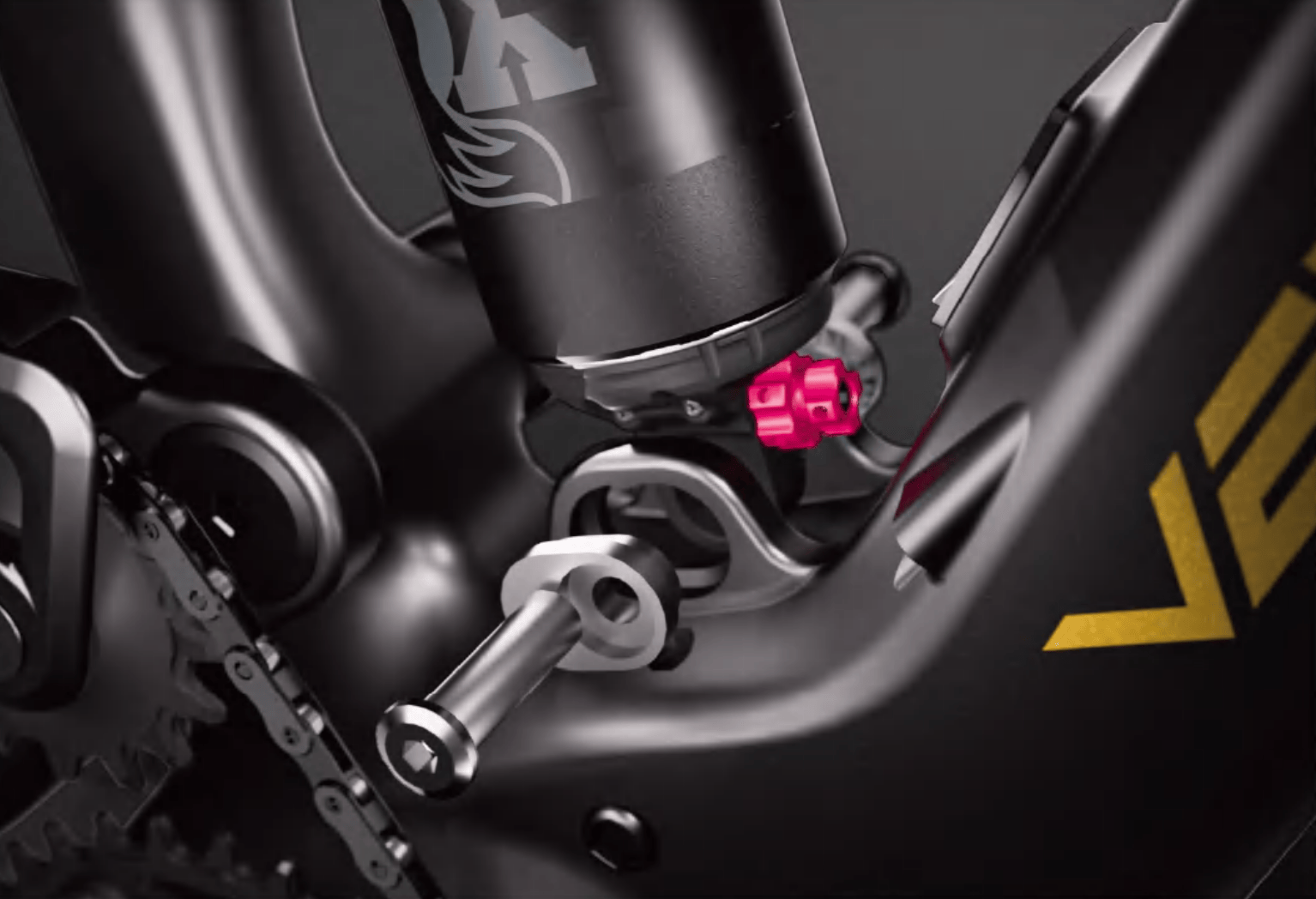

  • Shock Progression Flip Chip: Two Bikes in One

    Flick the AM/Enduro chip at the shock mount and the Rogue morphs. Unlock 5mm to get up to 172mm max travel.

Rogue Geometry

S M L XL
A Eff. Seattube Length (mm) 390 410 430 465
B Headtube Angle (°) 63,5 63,5 63,5 63,5
C Eff. Toptube Length (mm) 582 604 623 647,5
D Reach (mm) 440 466 485 515
E Act. Seattube Angle (°) 75,5 75,5 75,5 75,5
F Seattube Offset (mm) 30 30 30 30
G Eff. Seattube Angle (°) 78 78 78 78
H Chainstay Length (mm) 440 440440440
I BB Drop at Rear Wheel (mm) 10,5 10,5 10 10
J BB Drop at Front Wheel (mm) 34 34 34 34
K Headtube Length (mm) 110 110 120 125
L Axle to Crown (mm) 584 584 584 584
M Fork Offset (mm) 44 44 44 44
N Trail (mm) 140 140 140 140
O Stack (mm) 634 634 643,5 648
P Wheelbase (mm) 1229 1255 1276 1311
Q BB Height (mm) 343,5 343,5 344 344
Recommended height (cm) 160-172 172-182 180-188 185-195
